Dieletric Antenna
Center Frequency:1575.42MHz+-3MHz
V.S.W.R<1.5:1
Band Width:+-5 MHz
Impendence:50 ohm
Peak Gain >3dBic Based on 7x7cm ground plane
Gain Coverage >-4dBic at -90<0<+90 celsius degree (over 75% Volume)
Polarization:RHCP
LNA/Filter
LNA Gain (Without cable):28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f0 =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Current 5mA /11mA/15mA Max
Mechanical

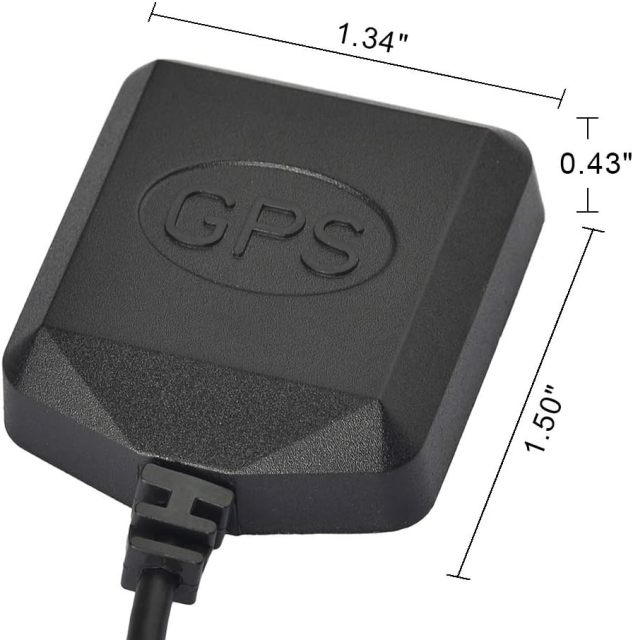

Size:1.50"x1.34"x0.43"/3.8cm x3.4cm x1.1cm

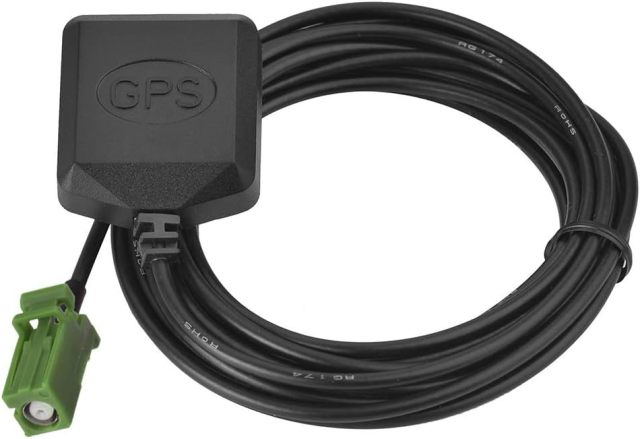

Extension Cable:RG174 3 meter/9.8 feet

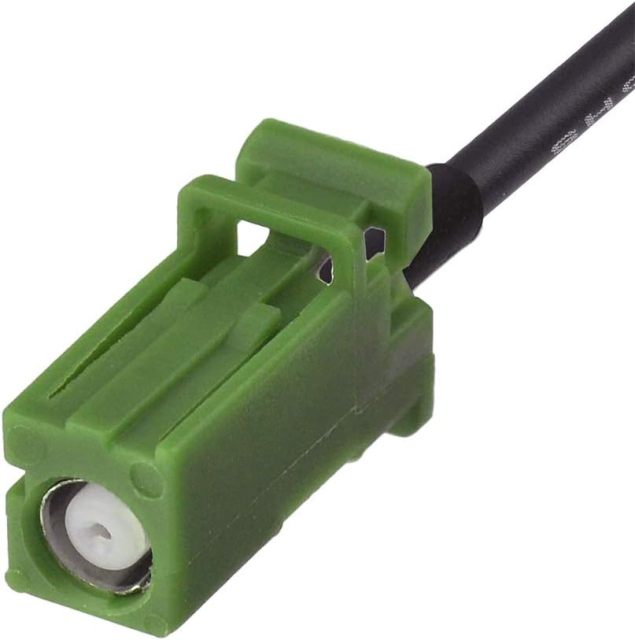

Connector: AVIC green

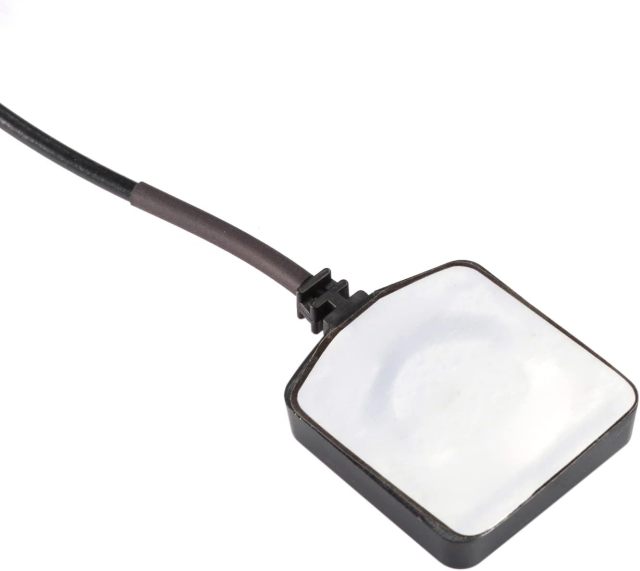

Mounting:Magnetic base
Housing:Black
Environmental
Working Temp:-40 to +85℃
Storage Temp:-45 to +100 ℃
Vibration Sine sweep 1g(0-p)10-50-10Hz each axis
Relative Humidity:95% non-condensing
Weatherproof:100% Waterproof
