2*5G (Main & Aux)：700~960,1710~2690,3300~5000MHz
2*5G-MIMO 1&2：1710~2690，3300~5000MHz
2*C-V2X: 5770-5925MHz
1*Wi-Fi : 2400~2500;5150~5850MHz
1*GNSS: GPS L1/L5、BDS B1

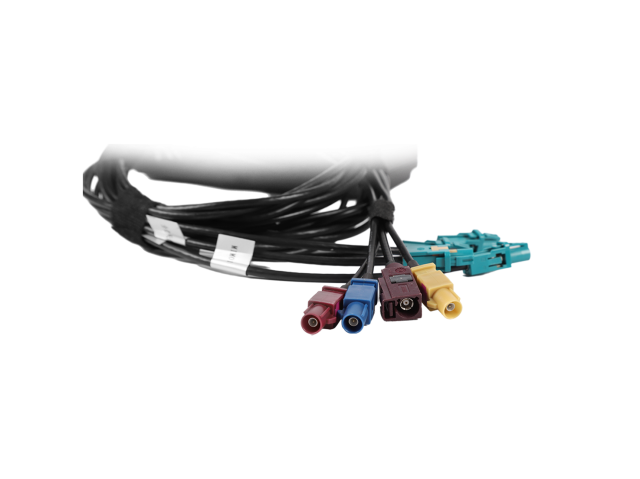

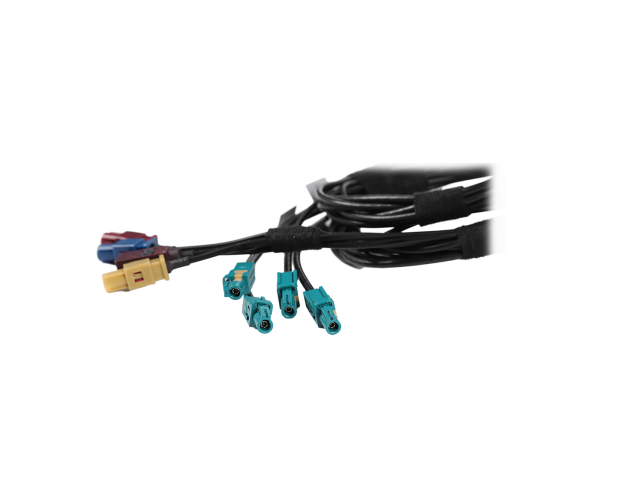

Connector pulling force：＞80N
Protection：IP67
Application: Various Car, Caravan, Enginering Vehicles, Agricultural vehicles

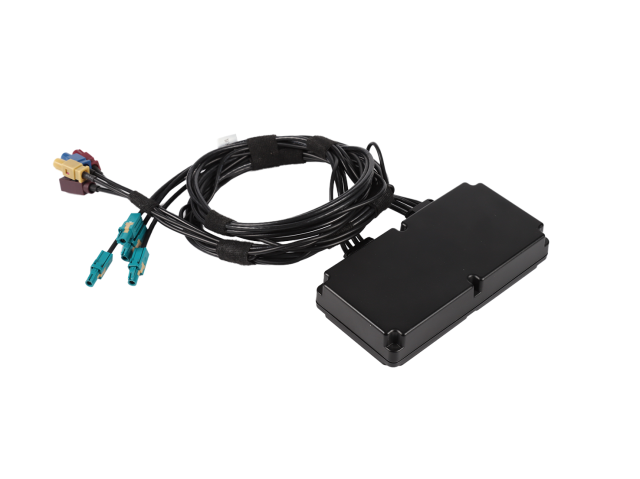

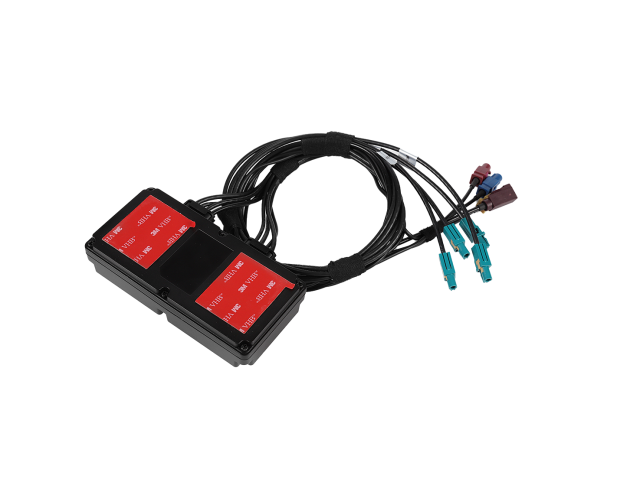

Highly integrated 8-in-1 Car Antenna with good isolation performance in each antenna, guarantees each antenna can work properly without interruption by the antenna nearby. Except 8in1 solution, 7in1 antenna, 6in1 antenna, 5in1 antenna, 4in1antenna solution also selectable.
• High performance amplifiers & filters
This combination antenna has built-in amplifiers and filters to enhance the received signal and reduce noise interferences.
• Anti-interference
To ensure stable operation in complex environments, this antenna is specially designed to reduce interference from other wireless devices.
• Multi-band Coverage
This antenna usually supports AM& FM radio reception, V2X signal sending and receiving, and 5G/Wi-Fi network connection. It also provides GNSS functions.
• Good Isolation
The 8-in-1 T-BOX antenna has a good isolation between antennas, which ensures that the signal of each antenna does not leak or interfere with each other, and improves the overall performance of the antenna.
| Function | 5G Antenna Part (Main &Aux) | 5G-MIMO Antenna (2x2) | GNSS | Wi-Fi Antenna Part | V2X Antenna Part |
| Frequency Range | 700~960/1710~2690/3300~5000MHz | 1710~2690/3300~5000MHz | GPS L1/L5、BDS B1 | 2400~2500/5150~5850MHz | 5770-5925MHz |
| V.S.W.R | ＜5/＜3.5/<3 | ＜3/<3 | ≤2.0:1 | ＜1.5/<2.5 | ≤2.0 |
| lmpedance | 50±3Ω | 50±3Ω | 50Ω | 50±3Ω | 50±3Ω |
| Polarization | Linear | Linear | RHCP | Linear | Linear |
| gain | ≥0dBi | ≥0dBi | ≥0dBi | ≥0dBi | ≥0dBi |
| Low noise amplifier characteristics | |
| Working voltage | 3V∽5V |
| Working current | ≤30mA@3.3V |
| Output gain | 25±3dB |
| Output impedance | 50±3Ω |
| Output standing wave ratio | ≤2.0:1 |
| Noise factor | L1:≤2dB，L5:≤2.5dB |
| Environmental Requirements | |
| (1) Operating temperature | -40℃ ~ +85℃ |
| (2) Storage temperature | -40℃ ~ +90℃ |
| (3) Protection grade | IP67 (after vehicle assembly) |
