FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly
FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered.

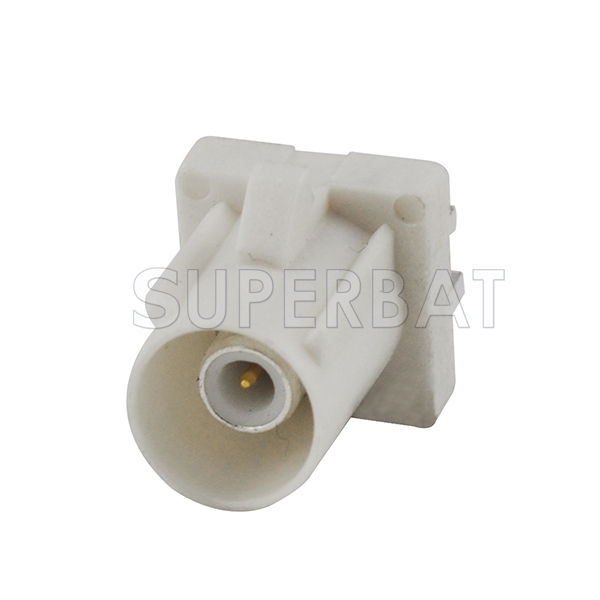

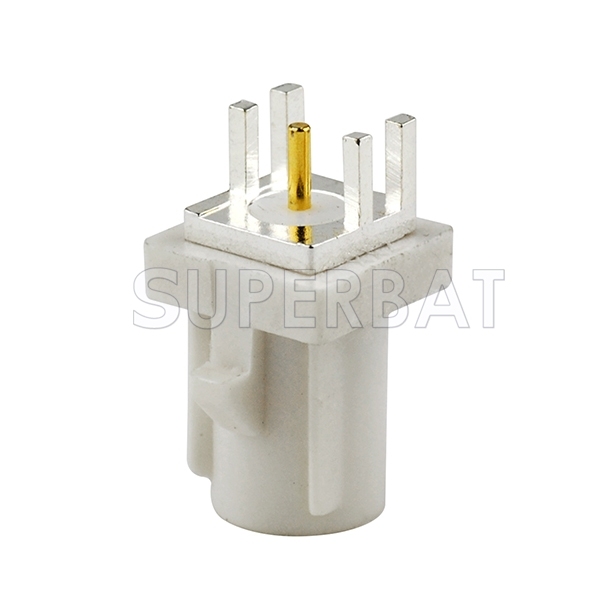

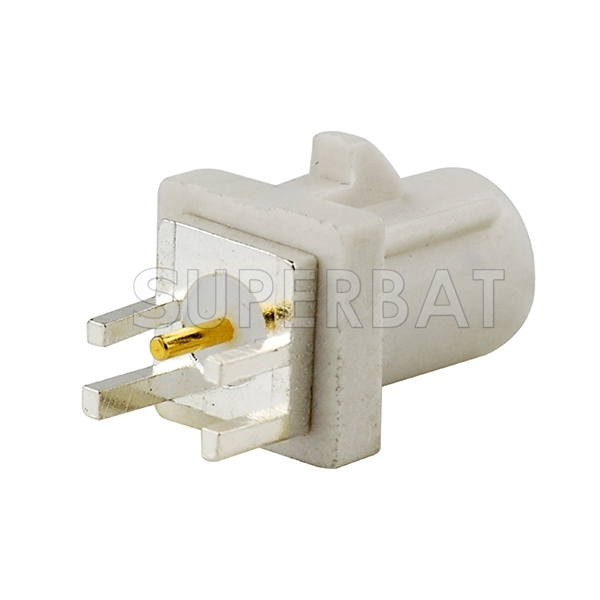

| Product Type: | Fakra SMB Connector | Impedance: | 50Ω nominal |
| Application: | wireless and GPS applications | Frequency Range: | DC-6GHz(optimized DC-4GHz) |
| Product Type: | End Launch PCB mount | V.S.W.R: | <1.5 |
| Center Contact: | Brass (material） | Insulation Resistance: | 1000 MΩ min |
| Body: | Brass (material) | Contact Resistance: | <40 m |
| Center Contact: | Gold-plated | Dielectric Withstanding Voltage: | >800 VRMS(Interface only) |
| Body: | Nickel-plated | Temperature Range: | -40 / +100℃ |
| Insulator | TEFLON | Suitable PCB Mount | 1.8mm PCB |
Application:
1 Automotive
Audio, navigation, infotainment
Bluetooth
GPS
2 Commercial Vehicle
Audio, navigation, infotainment
Bluetooth
3 Consumer
GPS
4 Military/Aerospace
GPS
5 Smart Phones and Mobile Devices
GPS
6 Telecommunications
Bluetooth
GPS tracking, positioning and navigation devices
