Specifications:
Input connector: DIN (F)
Outputs: FM/AM DIN (M),DAB:SMB (F)

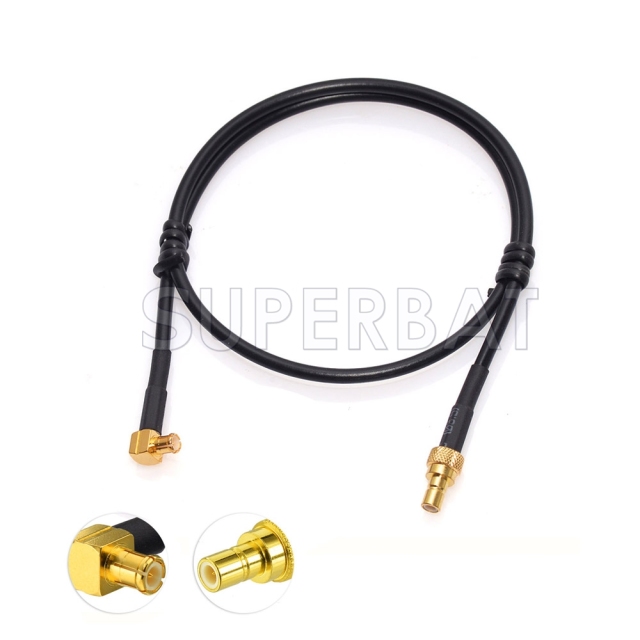

Aerial adaptor cable connector :SMB(F) to MCX(M)
Aerial adaptor cable:RG174, 40CM
Requires +12 volt supply

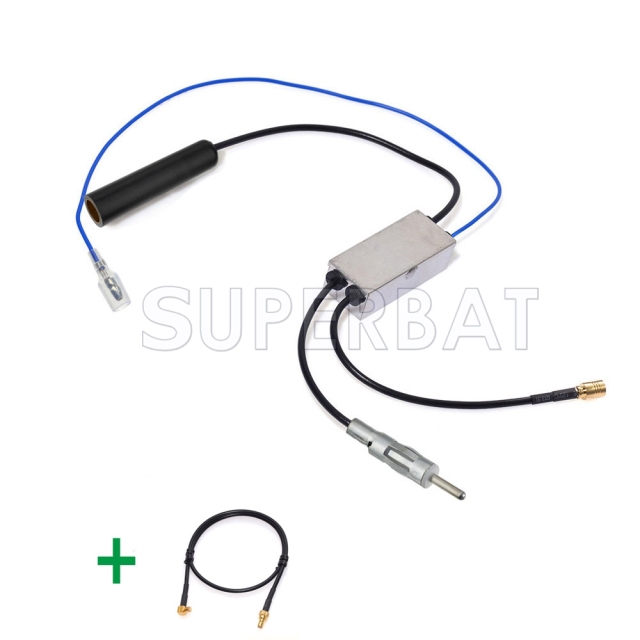

Package included:

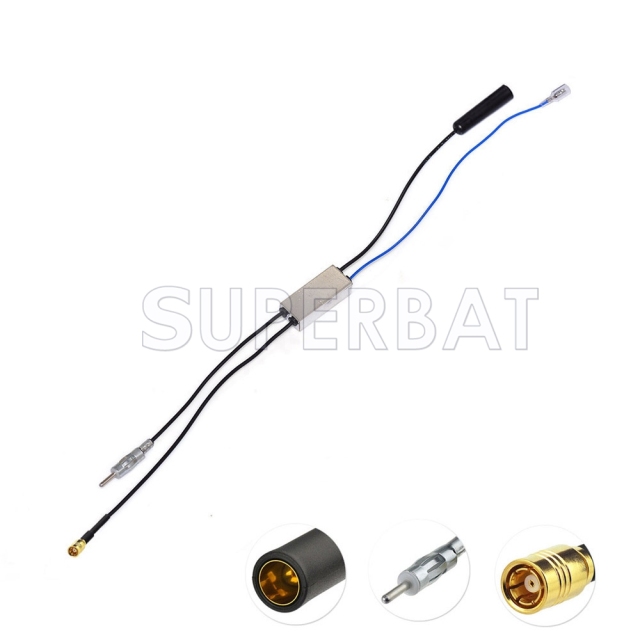

1pcs DAB radio converter (DB1-2075-D02SJ-D02SP-S05SP)
1pcs SMB to MCX Aerial adaptor cable 40CM (AC-M03RA-S05SJ-174-40)
Advantages:
Converts existing FM/AM aerials so that they can be used with DAB radios.
DAB/DAB+/DMB-A compatible
Uses existing FM/AM aerial.
Retains original appearance of vehicle
Small, neat and hidden.
as required in many recent European cars
Listing Suitable for the following DAB radios：
Alpine DAB except Ezi-DAB
Beat DAB except 400 & 485
Blaupunkt DAB
Caliber Caliber DAB except PMT-700D
C-KO DAB
Clarion Clarion DAB except DAB302E
Clarity CCE203-DAB
Grundig DAB
JVC DAB
Kenwood DAB
Kinetic All in-Car DAB
pioneer All in-car DAB except GEX-P900DAB
philips CEM.....series
pure Highway H240Di H260D
Sonichi SB50-DAB
Sony DAB
Clarity CDAB7-AUTO
Cautions:
Will NOT work with amplified aerials such as Beesting, built in the Glass etc.
Performance somewhat unpredictable.
Works best when the cables between the converter and FM/AM aerial are kept as short as possible.
No need to install an additional DAB Antenna when installing an aftermarket DAB Tuner.
