Model:V2235-014-A-01
Frequency Rang: 805-960MHz & 1710-2690MHz 1710-2690MHz 3300-3600MHz 3300-3600MHz
VSWR ≤:1.8
Isolation (dB): ≤-25dB
Efficiency: 60%
Gain (dBi): 5.5dBi (824-960MHz) 6dBi (1710-2690MHz);6dBi (3300-3600MHz)
Size:275mm x170mm x50mm
Port model:4*MCX Direct male head
Application：Mobile communication networks, wireless network coverage, Internet of Things (IoT) deployment and other areas provide broad signal coverage and optimiz

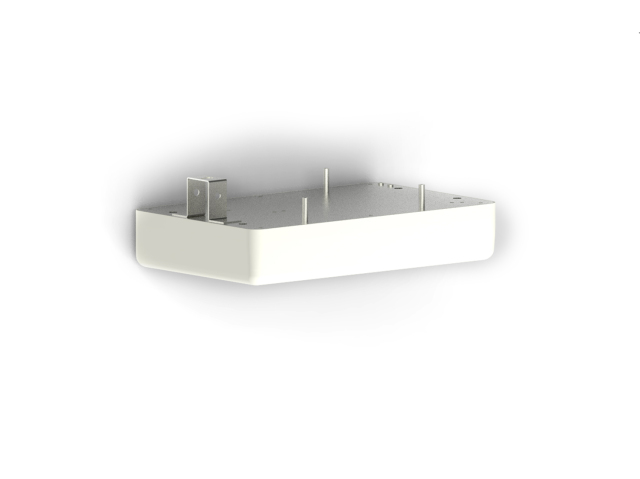

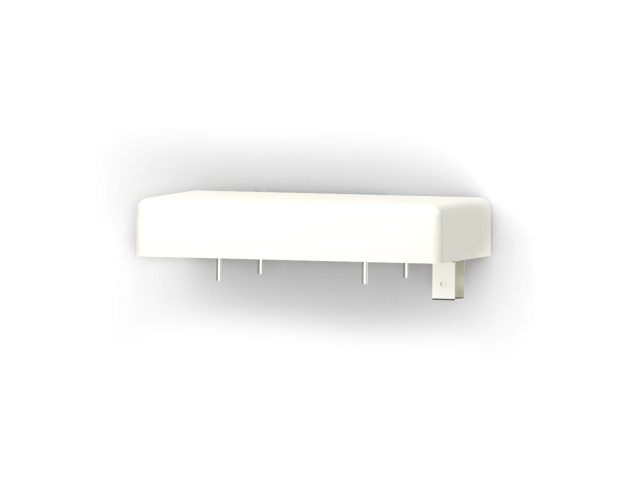

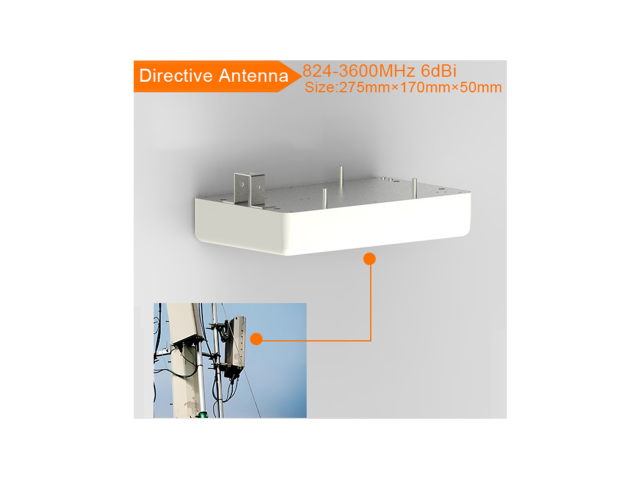

Four-port wall mounted antenna wireless communication equipment with four independent signal output ports, wall mounted, easy deployment and use in a variety of environments, support multi-band, 805-960MHz, 1710-2690MHz and 3300-3600MH, in mobile communication networks, wireless network coverage, Internet of Things (IoT) deployment and other fields, Provides wide coverage and optimizes network performance.
• Multi-band support
Supports operations in multiple bands at the same time
• Efficient performance
It can provide efficient wireless signal transmission performance, reduce signal attenuation and interference, and improve communication quality
• Flexibility
Signal coverage and performance can be optimized by adjusting antenna parameters such as direction, Angle and power, which can be configured and adjusted according to actual needs

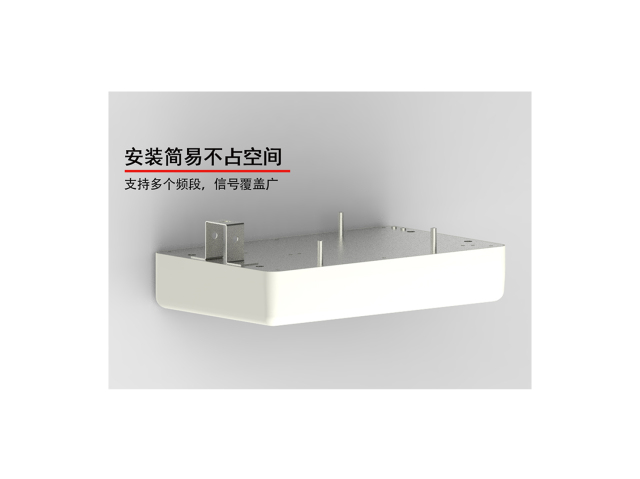

• Easy installation and maintenance
it can be easily fixed on the wall, ceiling and other positions, through a simple connection with the wireless communication system integration.
| parameter (unit) | Port 1 | Port 2 | Port 3 | Port 4 |
| Frequency Rang（MHz） | 805-960MHz & 1710-2690MHz | 1710-2690MHz | 3300-3600MHz | 3300-3600MHz |
| VSWR | ≤1.8 | |||
| Isolation(dB) | ≤-25dB | |||
| Efficiency | 60% | |||
| Gain(dBi) | 5.5dBi（824-960MHz）；6dBi（1710-2690MHz）； | 6dBi | ||
| connector | 4*MCX Direct male head | |||
| Size（mm） | 275 x170 x50 | |||
