Brand VLG

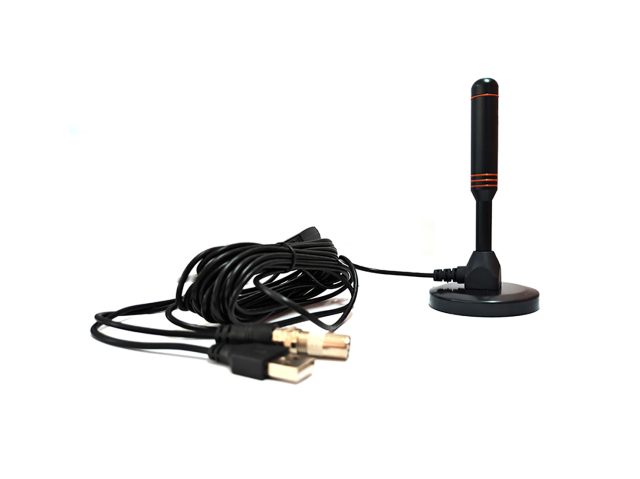

Dtmb/HDTV digital TV antenna
Professional OEM and ODM Antenna Designer and Manufacturer
Frequency Range (MHz) ：UHF470- 862
Bandwidth (MHz) ：70
Input Impendence (Ω) ：75
V.S.W.R ：≤2.0
Gain (dBi) ：25
Polarization Type ：Vertical
Power Capacity (w) ：50
Cable Length ：3m
Connect Type ：IEC Male
Bandwidth ：70 MHz
Working Temp(℃) ：-40~85
Dtmb/HDTV digital TV antenna, the basic function of a television antenna is to capture radio signals sent from a television station, which typically travel within the very high frequency (VHF) and ultra-high frequency (UHF) bands. By receiving these electromagnetic waves and converting them into electrical signals, the antenna enables the television to decode and display television programs.
• Small size and easy to install
It is small in size and designed to be placed indoors, such as near a television. Although convenient, the reception effect may be limited by the structure of the building and the distance from the broadcast tower.
• High gain good signal
It can enhance the signal reception ability, and the omnidirectional antenna can receive signals from multiple directions
• Durable and durable
ABS durable and drop resistant
| Electrical Specifications | |
| Frequency Range (MHz) | UHF470- 862 |
| Bandwidth (MHz) | 70 |
| Input Impendence (Ω) | 75 |
| V.S.W.R | ≤2.0 |
| Gain (dBi) | 25 |
| Polarization Type | Vertical |
| Power Capacity (w) | 50 |
| Mechanical Specifications | |
| Cable Length | 3m |
| Connect Type | IEC Male |
| Bandwidth | 70 MHz |
| Working Temp(℃) | -20~75 |
| Storage Temp(° C) | -20~75 |
