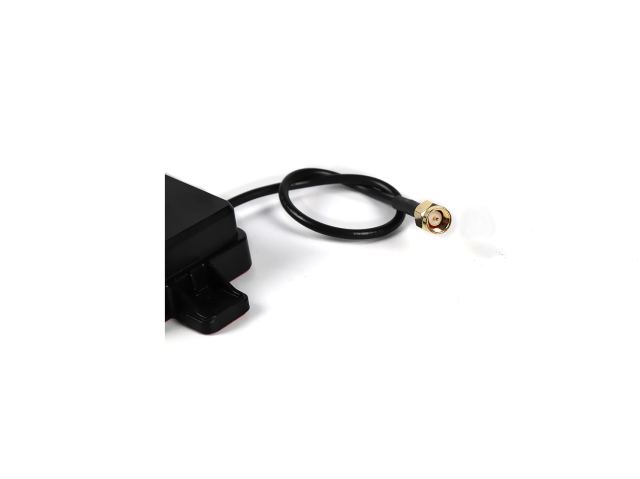

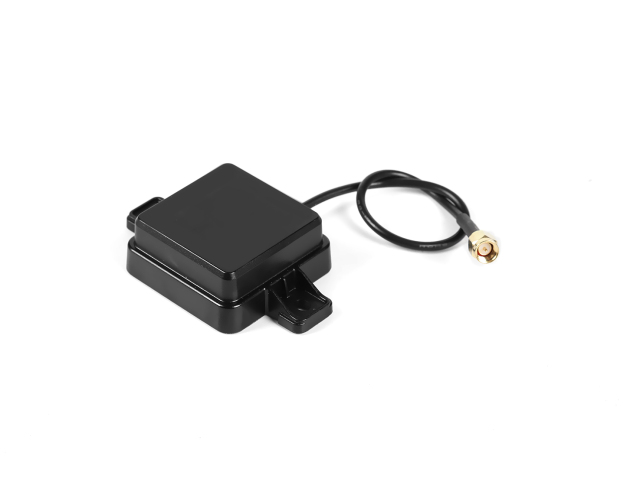

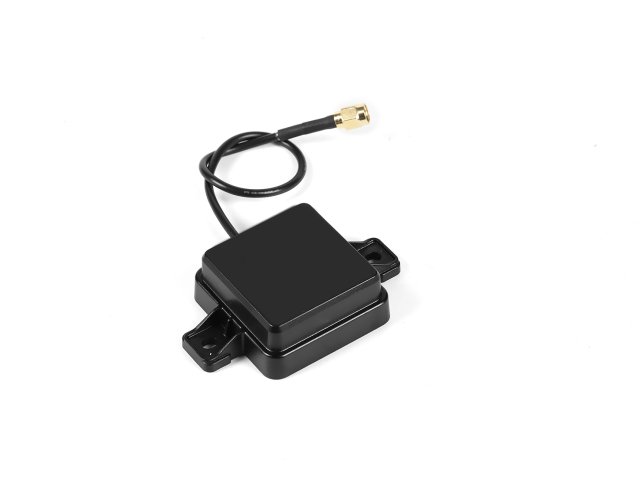

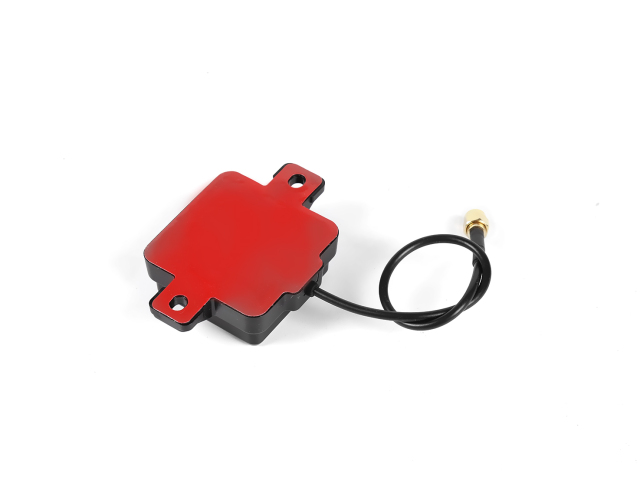

Model ：V1561-029-A-01
Center Frequency：GPS L1/L5+ BD B1 antennas GNSS car antenna
VSWR：≤2.0
LNA Gain:26±2dB
Voltage Range：3.0 V ~ 3.6 V
Impedance：50Ω
Connector:SMA-J
Size：78*52.5*20.4（mm）
Application：Shared bicycles, shared electric vehicles, shared cars, self-driving cars, skateboards, through the cooperation with various navigation and positioning systems, the antenna can provide users with more accurate and reliable navigation
This product is a high-performance multi-band active antenna designed for high-precision navigation and positioning systems. It supports GPS L1 and L5 bands as well as BDS (Beidou Navigation Satellite System) B1 band, with an operating frequency covering 1176.45MHz to 1575.42MHz, ensuring wide coverage and stable signal reception worldwide. With its compact size (7852.520.4mm) and optimized design, the antenna can be easily installed in a variety of devices and systems, providing users with high-quality navigation and positioning services.
• Multi-band support
Support GPS L1, L5 band and BDS B1 band at the same time, to meet the needs of different navigation and positioning systems.
• Broadband coverage
A wide range of operating frequencies, from 1176.45MHz to 1575.42MHz, to ensure stable reception of signals.
• Compact size
Compact form factor design for easy integration into various devices and systems
• High performance reception
advanced signal processing technology is used to improve the reception sensitivity and anti-interference ability of the signal.
| 1. Patch Antenna Electrical Specifications. | |
| CHARACTERISTICS | SPEC |
| Center Frequency | 1176.45MHz-1561.098MHz-1575.42MHz |
| Output VSWR | ≤2.0 max |
| Output Impedance | 50ohm |
| Efficiency (%) | ≥60 |
| Peak Gain | ≥1.5dB |
| Polarization | R.H.C.P |
| Antenna Size（mm） | 78*52.5*20.4mm |
| Cable | RG174 |
| Connector | SMA-J |
| 2. Low Noise Amplifier Electrical Specifications. | |
| CHARACTERISTICS | SPEC |
| Frequency Range | 1176.45MHz-1561.098MHz-1575.42MHz |
| LNA Gain | 26±2 dB |
| Output V.S.W.R | 2.0dB max |
| Voltage Range | 3.0 V ~ 3.6 V |
| Current | 10 mA |
| Impedance | 50 Ω |
| 3、OPERRATING CONDITION | |
| Temperature | -40℃ to +85℃ |
| 4、STORAGE CONDITION | |
| Temperature | -40℃ to +85℃ |
