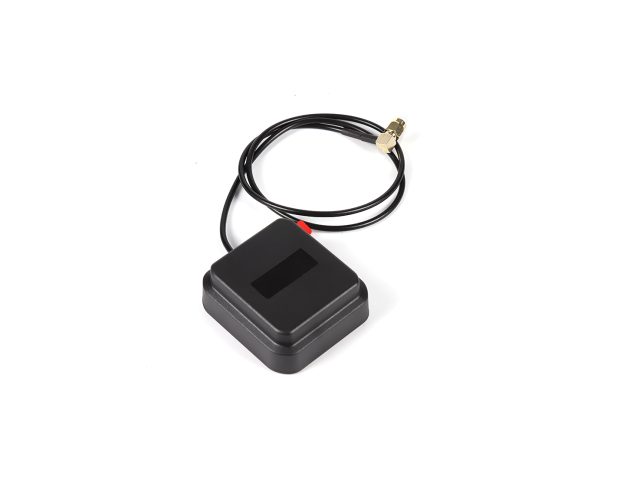

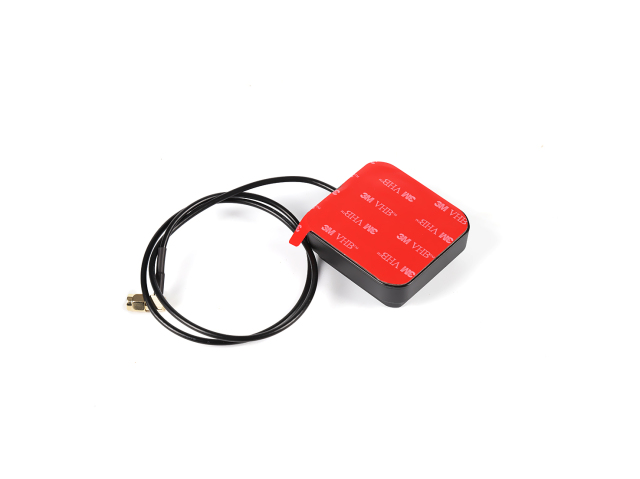

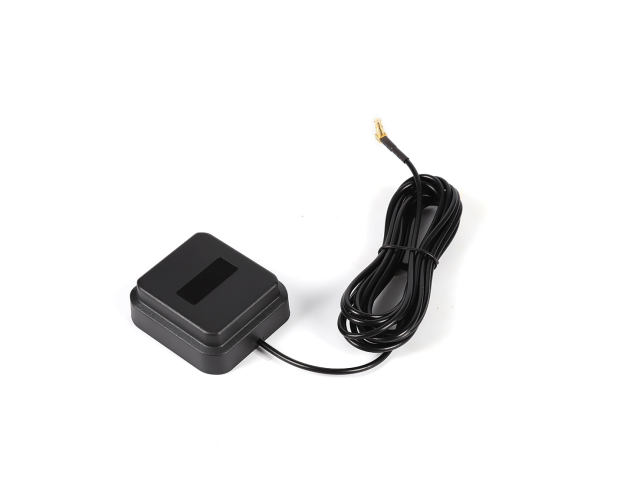

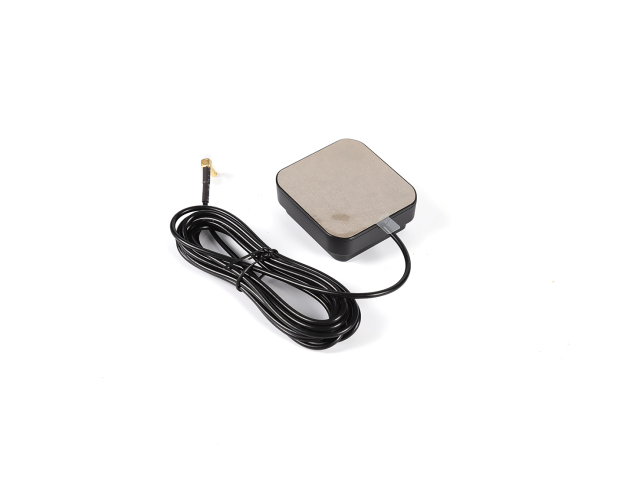

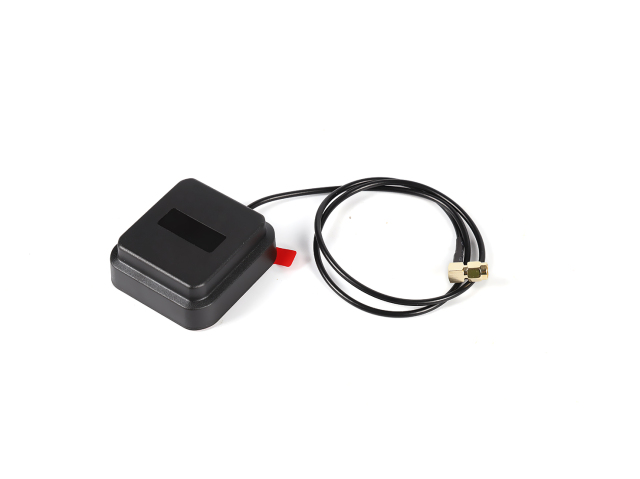

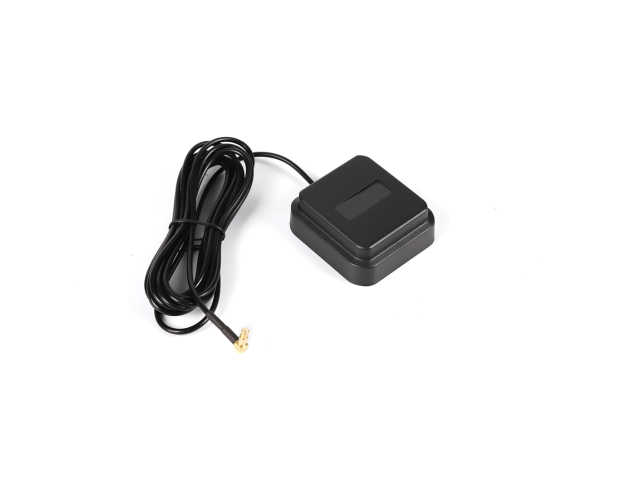

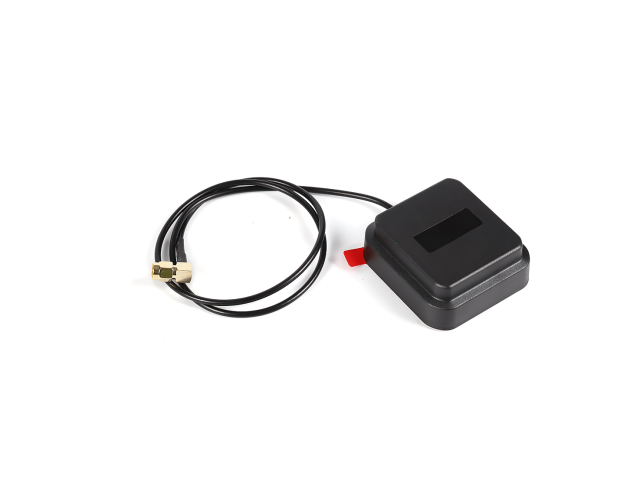

High precision car antenna covered GPS L1, BDS B1 , GLONASS L1
Frequency Range(MHz): GPS L1,BDS B1/,GLONASS L1
Polarization： Right-hand circular polarization
Gain(dBi) (Under 200*200mm base board)Elevation 90°≥4.0, -1dB beam width°≥120°
Axial Ratio(dB): ≤3
LNA Gain(dB): 28dB±3dB
VLG - Dual band car antenna Adopted multi-feed point and completely symmetrical structure, which lower the influence of antenna to measurement error while surveying.Antenna has high Gain, with pattern wide beam, with good reception with low elevation signal, insure the normal satellite signal reception even in serious occlusion environment.The Low noise amplifier section adopted pre-filtering scheme to effectively suppress out-of-band interference and improve the reliability of the system.
This is a high precision car antenna covered GPS L1/L5, BDS 2nd generation B1/ B2, GLONASS L1, it can meet the request of multi-system compatible and high precision measuring from GNSS surveying equipment. It is widely be used in Geodesy and mapping, Marine survey, Geological deformation monitoring and other filed.
• Antenna adopted multi-feed point and completely symmetrical structure, which lower the influence of antenna to measurement error while surveying.
• Antenna has high Gain, with pattern wide beam, with good reception with low elevation signal, insure the normal satellite signal reception even in serious occlusion environment.
• The Low noise amplifier section adopted pre-filtering scheme to effectively suppress out-of-band interference and improve the reliability of the system.
| Electrical Spec | |
| Frequency Range(MHz) | GPS L1/L5、BDS B1/ B2、GLONASS L1 |
| Polarization | Right-hand circular polarization |
| Gain(dBi) (Under 200*200mm base board） | Elevation 90°≥4.0 -1dB beam width°≥120° |
| Axial Ratio(dB) | ≤3 |
| LNA Gain(dB | 22±2 |
| Flatness in Band (dB) | ±2 |
| V.S.W.R | ＜2.0 |
| Noise Figure (dB) | ＜3.0 |
| DC Voltage (V) | 3.0-5.0 |
| Current (mA) | ＜40 |
| Impedance(Ω) | 50 |
| Mechanical Spec | |
| Dimensions(mm) | 56.5*61.5*23.0mm |

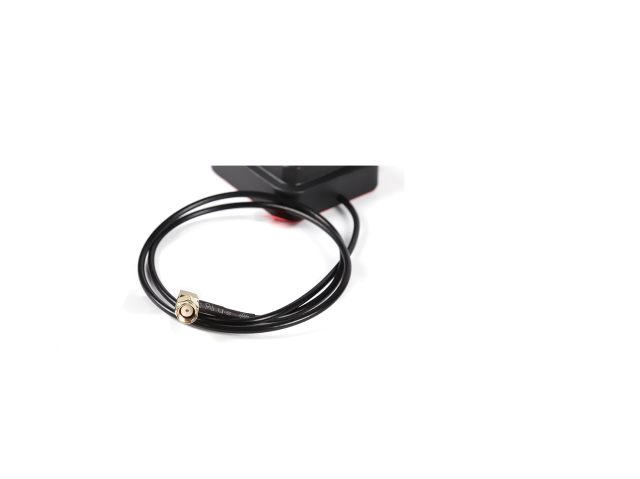

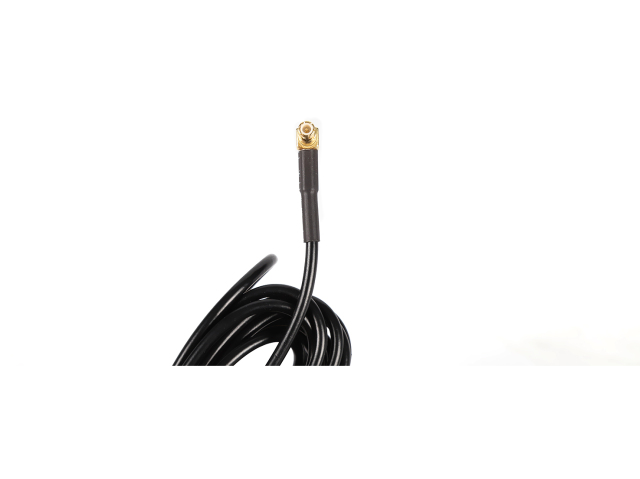

| Connector Type 3M(cable length) with | SMA_J |
| Operating Temperature (℃) | -45～+85 |
| Storage Temperature (℃) | -55～+85 |
| Operation Environment | Outdoor |
| Ingress Protection | IP65 |
