Characteristic:
（i） Dieletric Antenna
Center Frequency 1575.42MHz±1 MHz
V.S.W.R ＜1.5
Band Width CF±5 MHz
Impendence 50 ohm
Dimension 20*20*4mm
Axial Ratio 3dB(max)
Polarization RHCP
（ii） LNA/Filter
LNA Gain (Without cable) 26±2dB
Noise Figure 1.3dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
12dB CF+50MHZ ;
16dB CF-50MHZ;
Filter Insertion Loss <3dB
V.S.W.R ＜2.0
DC Voltage 2.2~5.0V
DC Current 10~26mA
（iii）Mechanical
Weight 64G

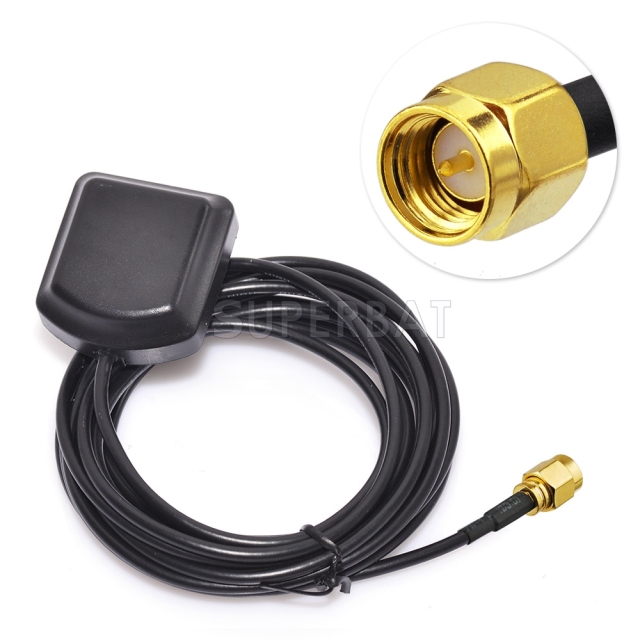

Cable :RG174 3 meter / contact us for other length

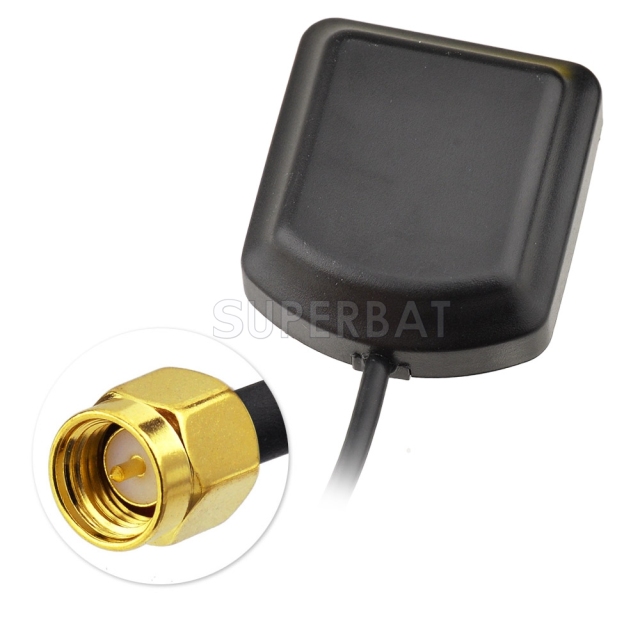

Connector :SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
（iv）Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof

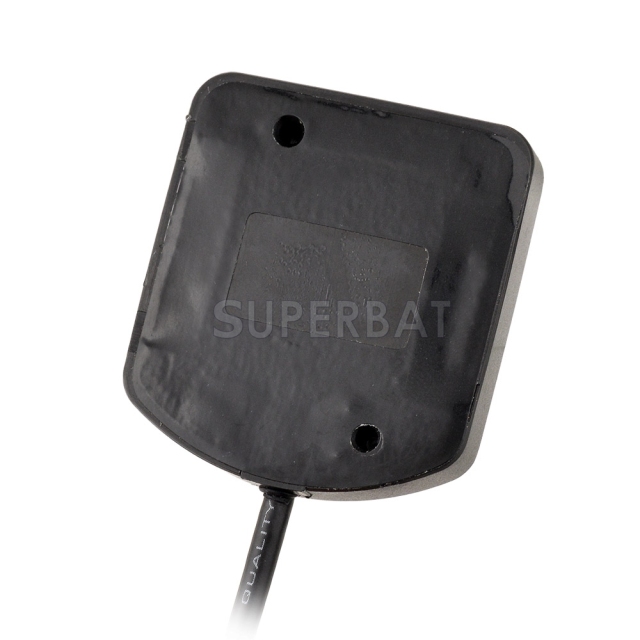

Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
