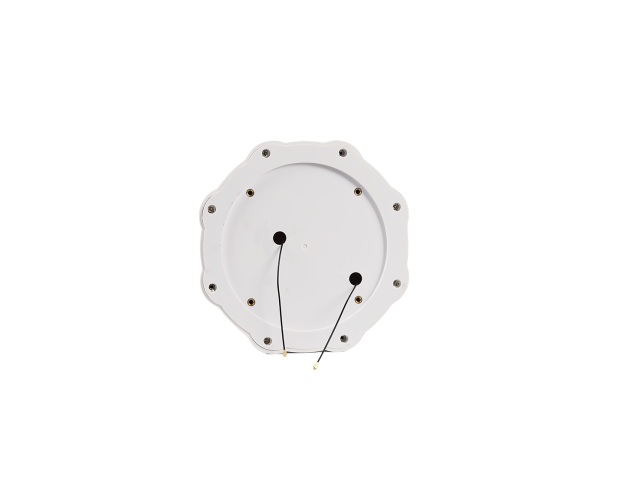

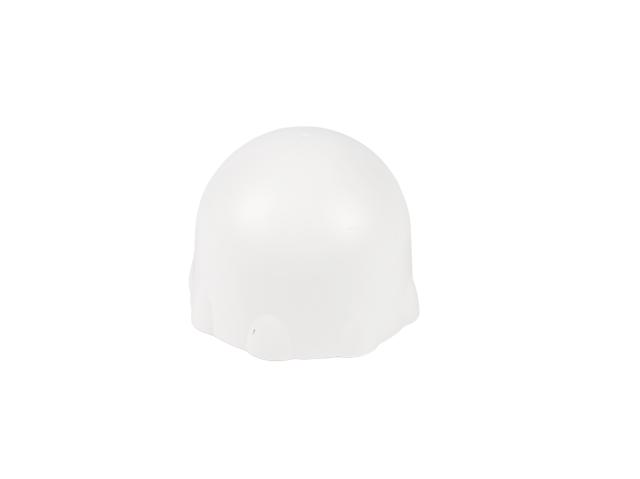

GPS Antenna for accuracy timing & position
Frequency 1559~1577MHz
Gain 30±2dB typ
Voltage VDC 3~5V
Current（≤20mA@3V
Noise Figure ≤2.0dB
Filter:SAW filter 30dB min fo±45MHz
Output V.S.W.R 2.0 max
Cable 30010±200mm (ALSR195 )
Connector SMA-J
Dimensions（尺寸） Φ96.2*127.3mm
Application：electric power, base stations, ships and other timing places
This high-performance GPS antenna, which is designed for positioning system, adopts lightning and electrostatic protection design, has the characteristics of high Gain and high efficiency, to ensure that it can provide stable and efficient signal reception under various environmental conditions, and is widely used in electric power, base stations, ships and other timing places.
• Wide coverage
Frequency 1559~1577MHz, can cover the world's main GPS and GNSS (Global Navigation Satellite System) band
• High gain, good performance
LAN gain 30±2dB, it can effectively amplify the weak satellite signal to ensure that even in the weak signal environment can achieve fast and accurate positioning.
• Easy installation, beautiful appearance
Size Φ96.2*127.3mm compact design, small space occupation, easy installation. The round appearance is simple and generous, suitable for various installation environments and equipment requirements.
• Lightning and electrostatic protection design
It can effectively prevent the damage of lightning and static electricity to the antenna, and ensure the stable operation of the equipment in bad weather conditions.
| GPS Dielectric antenna technical specification | |
| Frequency | 1568±10 MHz |
| Band Width | ≥ 20MHz |
| Peak Gain | 4 dBi |
| Output VSWR | 1.5 max |
| Output Impedanc | RHCP |
| Polarization | 50W |
| Voltage | VDC 3~5V |
| Current | ≤20mA@3V |
| LNA | |
| Range Of Receiving Frequency （MHz） | 1559~1577MHz 1559~1577MHz |
| Gain |
30±2dB typ 30±2dB typ |
| Noise Figure |
≤2.0dB |
| Filter SAW filter |
30dB min fo±45MHz |
| Output V.S.W.R |
2.0 max |
| Characteristic of material | |
| Temperature | -40℃ to +70℃ |
| TemperatureHumidity | 10% to 95% RH |
| Cable | 30010±200mm (ALSR195 ) （customizable） |
| Connector | SMA-J （customizable） |
| Dimensions | Φ96.2*127.3mm |
