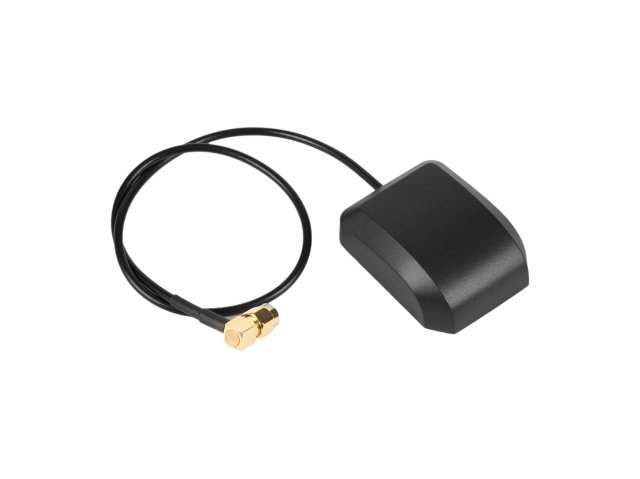

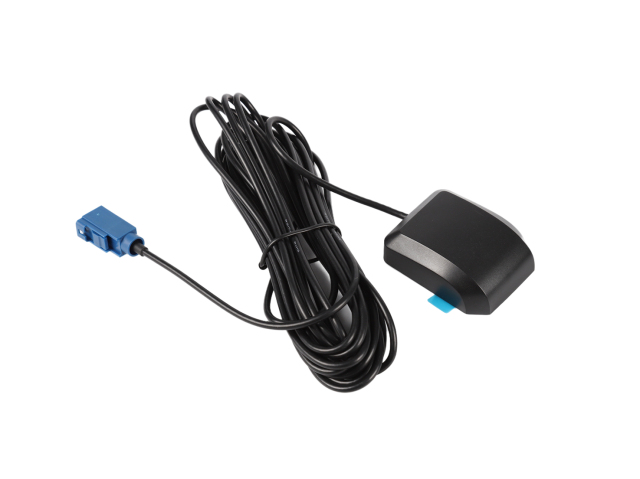

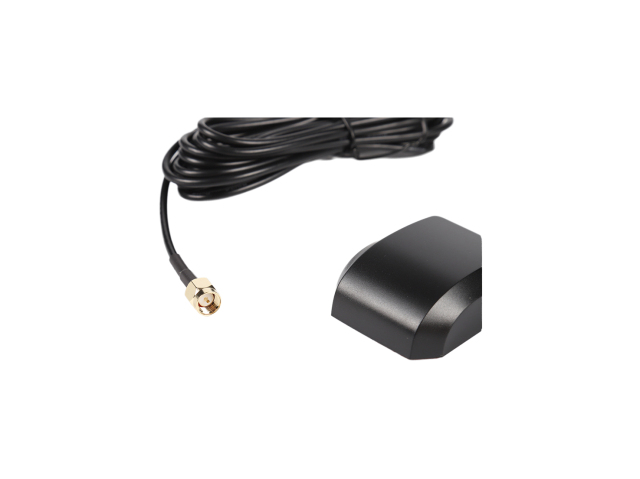

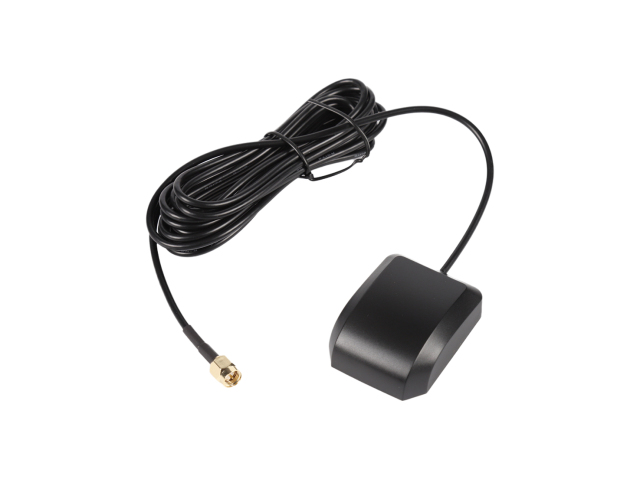

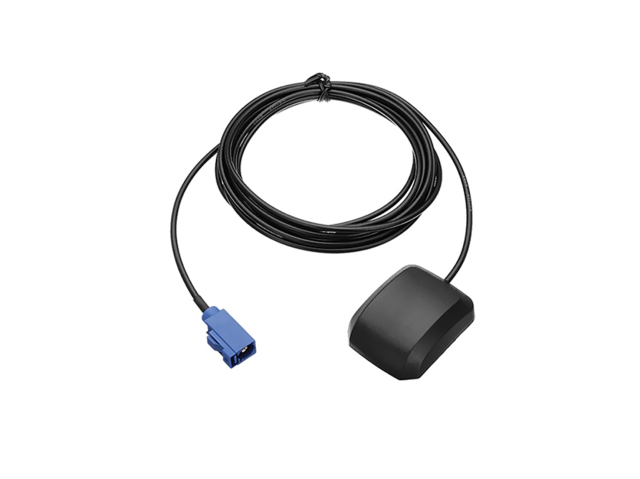

active GPS antenna for automobile, EV car
Frequency ： BD B1 /GPS L1
Working Voltage ： DC 3~5V
Gain： 28dBi
VSWR: 2.0 max
Impedance: 50ohm
Dimension : 50.3mm(L)×38.4mm(W)×17.1mm(H)
Cable length and spec: 3000±30 mm (RG 174 ）
Application: front and rear loading of various models, passenger cars, engineering vehicles, electric vehicles and bicycles;
BD+GPS 2-in-1 active antenna, which can quickly locate and accurately navigate in cities with complex environments.
Application: front and rear loading of various models, passenger cars, engineering vehicles, electric vehicles and bicycles;Urba
• High gain and low power consumption
LNA Gain: 28±2dB
Voltage Range: DC 3 V ~ 5 V
• Small size and flexible installation
Size: 50.3 × 38.4 × 17.1mm
Adhesive and magnetic
• Wide application
Various models
Urban construction
| Passive Electrical Specifications | |
| Frequency Range |
1561.098-1575.42 MHz |
| Input Impendence |
50Ω |
| VSWR | ≤ 2.0 |
| Efficiency | ≥50% |
| Gain | ≤2.0 |
| Polarization | R.H.C.P |
| Low Noise Amplifier Electrical Specifications | |
| Frequency Range | 0.95% |
| LNA Gain | -40～+85 |
| Noise Figure |
-40～+85 |
| Output VSWR | ≤ 2.0 |
| Voltage Range | DC 3 V ~ 5 V |
| Mechanical Specifications | 50.3 × 38.4 × 17.1mm |
| Antenna Size | 50.3 × 38.4 × 17.1mm |
| Cable Type & Length | RG174 Black & 3000mm |
| Casing | ABS |

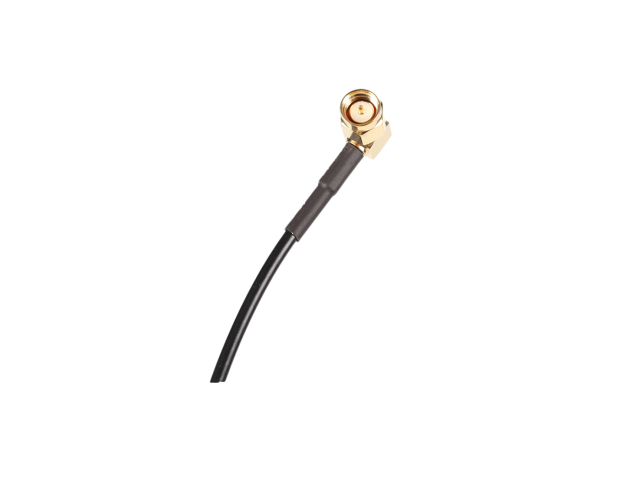

| Connect Type | SMA-J（customizable） |
| Working Temperature | -20°C ~ +70°C |
| Radome Color | Black |
| Installation method | Magnet |
| Weight | 64.6g |
| IP rating | IP64 |
