Cover Bands : L1+L5
LNA Gain: 11±2 dB
Positioning accuracy:
Single point positioning: 1.5m CEP(horizontal), 2.5m CEP(vertical)
RTK positioning: 1.0cm+1ppm(horizontal), 1.5cm+1ppm(vertical)
GNSS operating limits:
Maximum speed: 500 m/s
Altitude: 50,000 m
Application:Car, logistic, car rental, robots, drones, automatic driving, Mower, bus, scooter, sharing bike/e-bike, and etc.

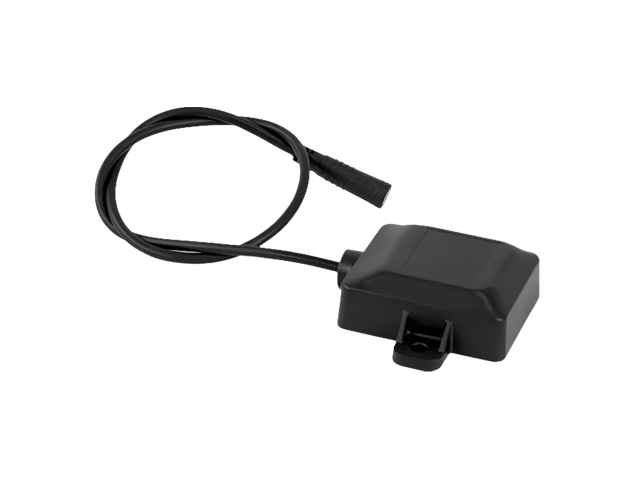

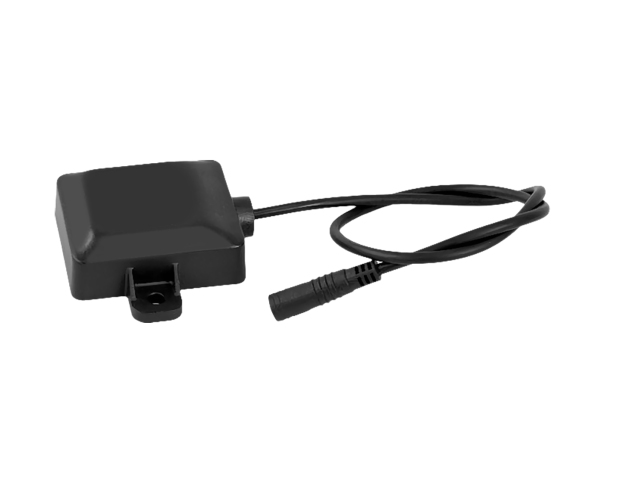

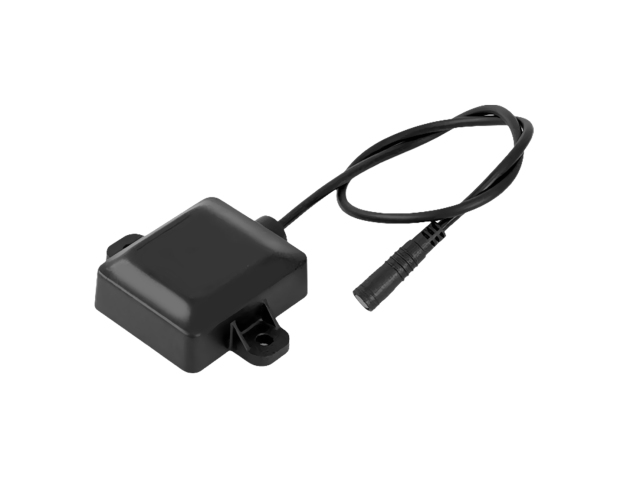

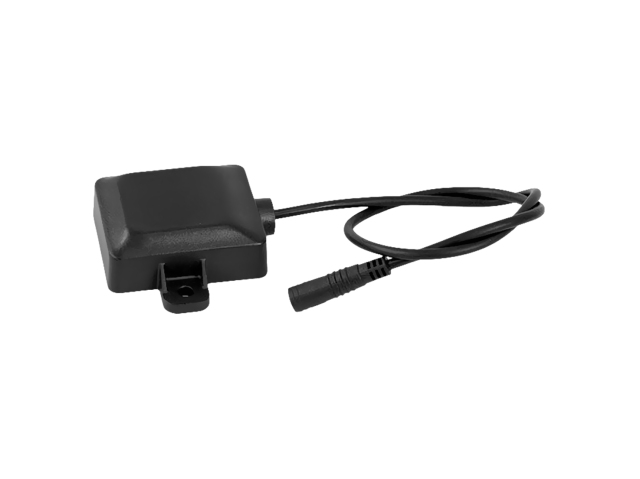

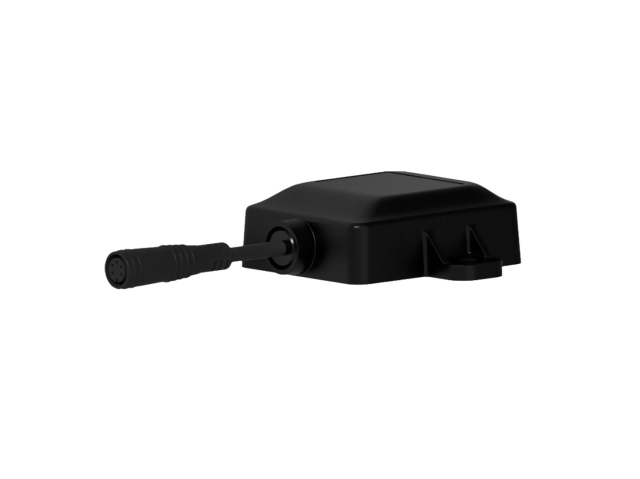

This GPS mouse receiver supports Beidou, GPS, GLONASS, Galileo, and QZSS satellite signals in L1+L5 bands. It is capable of capturing and tracking any multi-satellite hybrid signal, independent of the RTK ground enhanced base station system. In complex urban environment, it can still achieve stable and higher cm level positioning accuracy.
• CM Level Position Accuracy
This GPS mouse receiver intergrate RTK and GNSS module, the RTK positioning accuracy meets 1.0cm+1ppm(horizontal), 1.5cm+1ppm(vertical).
• 4 Satellite system
Support by 4 satellite systems, even without difference from RTK, the position accuracy can also reach 1.5m CEP(horizontal), 2.5m CEP(vertical).
• Plug & play

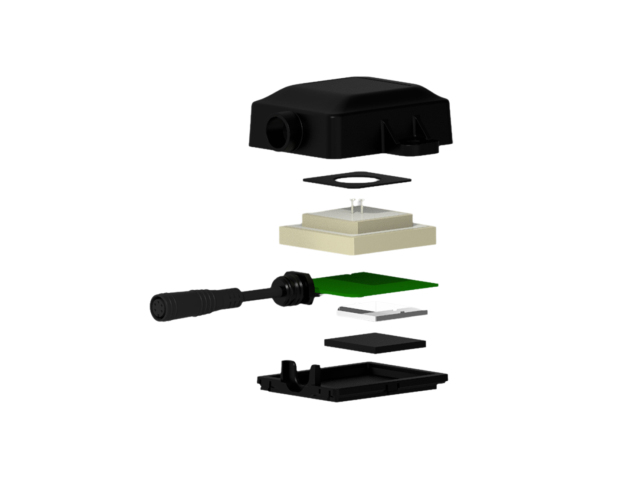

The GNSS antenna+GNSS module+RTK module in one body design, which simply the integration with host device. Just plug the GPS mouse receiver to the device,so user can collect the position data directly from the receiver.
| Center Frequency | 1176.45MHz~1561.098MHz~1575.42MHz |
| Output VSWR | ≤2.0 |
| Output Impedance | 50ohm |
| Peak Gain | L5≥1dB L1/B1≥2.5dB |
| Efficiency (%) | ≥45 |
| Axial Ratio(dB) | ≤6 |
| Polarization | R.H.C.P |
| LNA Gain | 11±2 dB |
| Output V.S.W.R | 2.0 max |
| Voltage Range | 3.3 V to 5 V |
| Current | 50±10 mA |
| Impedance | 50Ω |
| Temperature | -40℃ to +85℃ |
| 1.2 GNSS Technical Specifications | |
| GNSS tracking Channel | 200 |
| GNSS receives frequency points |
• GPS/QZSS: L1C/A, L5BDS: B1C, B1I, B2a, B2I, B3I • BDS: B1, B2A, B2B,B2l • Galileo: E1, E5 • GLONASS: G1 |
| Data update rate |
• PVT: The default value is 1Hz and the maximum value is 20Hz • RTK: The default value is 1Hz and the maximum value is 10Hz |
| Positioning accuracy |
• Single point positioning: 1.5m CEP(horizontal), 2.5m CEP(vertical) • RTK positioning: 1.0cm+1ppm(horizontal), 1.5cm+1ppm(vertical) |
| Speed and time accuracy |
• GNSS: 0.1m/S CEP • 1PPS: 15 nS(RMS) |
| First positioning (TTFF) time |
• Hot start: 1 second • Cold start: 28 seconds • AGPS: 1.5s |
| sensitivity | • Cold start: -148 DBM
• Hot start: -159dBm • Recapture: -159dBm • Tracking and navigation: -165 DBM |
| GNSS operating limits |
• Maximum speed: 500 m/s • Altitude: 50,000 m |
| UART port |
• UART ports: TX and RX • Baud rate 115200 bps, 8 data bits, no parity, 1 stop bits (default) • 1Hz: GGA,GSA,GSV,VTG,RMC,GST,GLL |
| Temperature range |
• Normal operation: -40°C ~ +85°C • Storage temperature: -40°C ~ +80°C |
