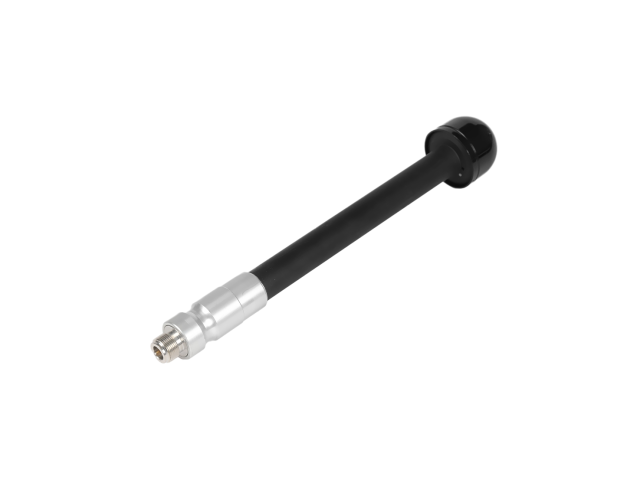

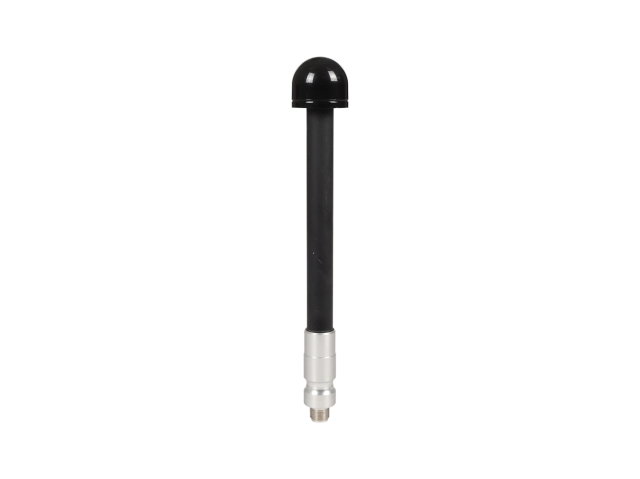

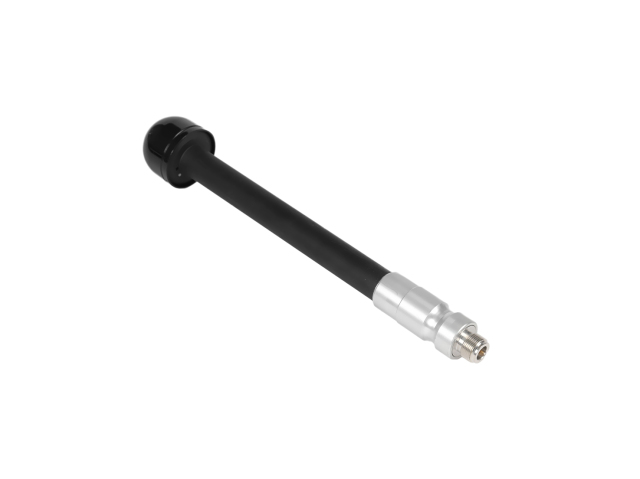

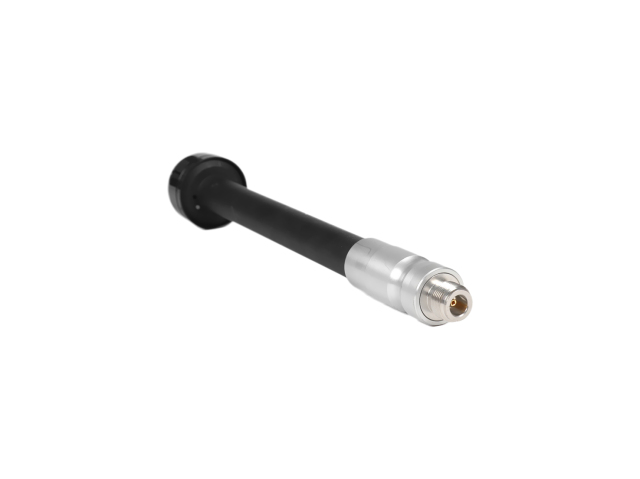

RSU antenna GPS 28dB (Y2000)
Frequency range: GPS LI &BDS B1
Passive gain: 2.0dB
LAN gain :28±3dB
Standing wave: ≤3
Connector: N-J/N-K
Size: φ42mm×270mm(H)
Voltage: 3-5V
Application:Highway toll management，Urban road management，Management of parking lot,Vehicle networking application
This compact timing antenna offers exceptional durability and performance. Its small size makes it ideal for space-constrained applications. The antenna simultaneously covers both GPS and Beidou satellite bands, ensuring reliable signal reception for precise timing applications. Furthermore, its construction boasts superior water resistance, corrosion resistance, and high-temperature tolerance, allowing continuous operation in harsh environments. This robust design guarantees reliable and long-term functionality without environmental interference. This timing antenna plays a vital role in modern traffic management systems, such as intelligent transportation and electronic toll collection, by providing a convenient and efficient solution for accurate time synchronization
• High gain, precise timing
LNA:28DB, strong anti-signal interference
• Small size, strong, waterproof
Able to withstand harsh weather conditions and long-term use
• Strong compatibility
Able to communicate with a variety of on-board units (OBUs)
| Frequency Range(MHz) | GPS LI &BDS B1 (1575.42 GHz \1561.098MHz) |
| Polarization | RHCP |
| Peak Gain (dBi) | 2 |
| LNA Gain(dB) | 28±3 |
| Axial Ratio(dB) | ≤5 |
| V.S.W.R | ≤2.5 |
| Noise Figure | ≤2.0dB |
| Impedance(Ω) | 50 |
| voltage | 3V～5V |
| Operating current（mA） | <20 |
| Dimensions (mm) | Φ42×270 |
| Operation Temp. | -40℃ to +75℃ |
| Connector | N-J |
| Environment | Outdoor |
| Waterproof Grade | IP66 |
| Humidity | 95% |
