Model Number：Network gateway timing antenn-#5450
Brand Name VLG/Neutral/OEM

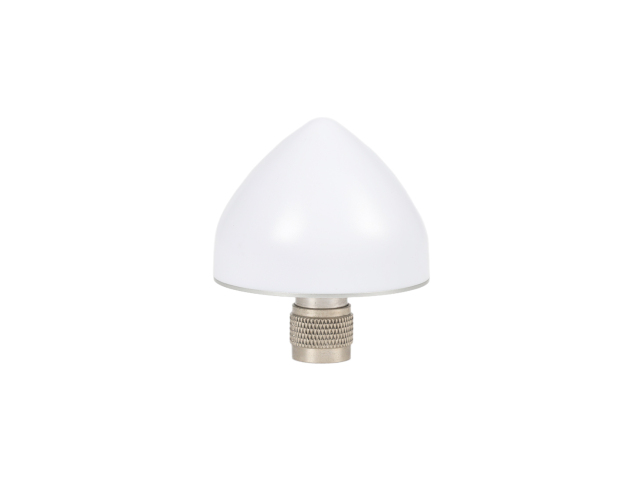

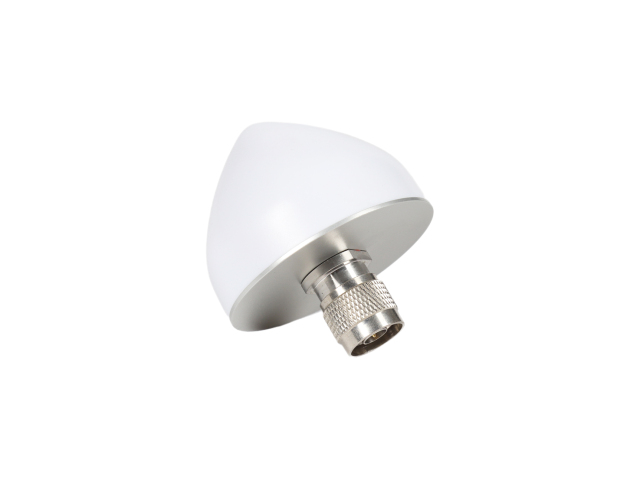

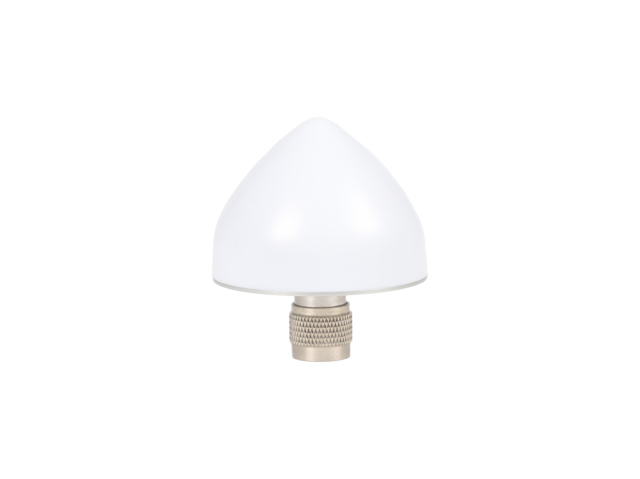

Time Synchronization Antenna
Frequency Range: 1559~1577MHz
LNA Gain(dB) ：28±3
VSWR：<2.5
1. Low noise, high gain, low noise factor;
2. Good circular polarization axis ratio and gain bandwidth;
3. Beautiful appearance, IP66 protection level, high level lightning protection and electrostatic discharge.
Application:Highway toll management，Urban road management，Management of parking lot,Vehicle netwo
This timing antenna has specially compact size, covered GPS & Beidou Satellite band, it has Beautiful appearance, good water resistance, corrosion resistance and high temperature resistance, the antenna can reliablely and continuously working for a long time, without influence by the outer environment.It plays an important role in intelligent transportation system and electronic toll collection system, providing a convenient and efficient solution for modern traffic management.
• High gain, precise timing
LNA:28DB, strong anti-signal interference
• Beautiful appearance
IP66 protection level, high level lightning protection and electrostatic discharge.
• Strong compatibility
Able to communicate with a variety of on-board units (OBUs)
| Frequency Range(MHz) |
(1559~1577MHz) |
| MHzPolarization |
RHCP |
| Gain (dBi) | Elevation 90°≥2 |
| LNA Gain(dB) | 28±3 |
| Axial Ratio(dB) | Elevation 90°≤5 |
| Noise Figure | ≤2.0dB |
| VSWR | <2.5 |
| Impedance(Ω) | 50 |
| voltage | 3V～5V |
| Operating current（mA） | <20 |
| Dimensions (mm) | Φ62×56.5 |
| Operation Temp. | -40℃ to +75℃ |

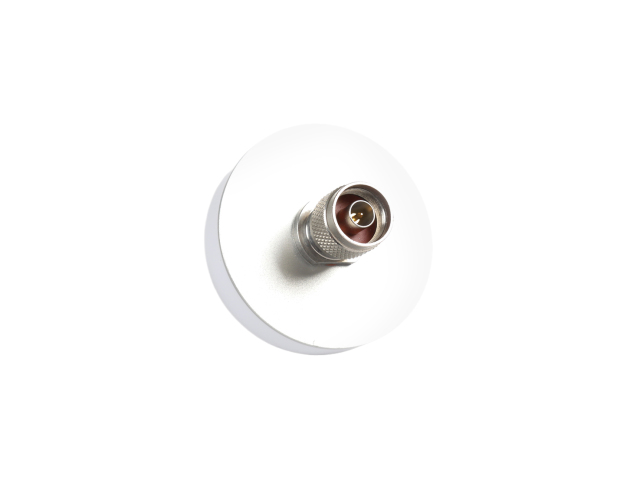

| Connector | N-K |
| Environment | Outdoor |
| Waterproof Grade | IP66 |
| Humidity | 95% |
