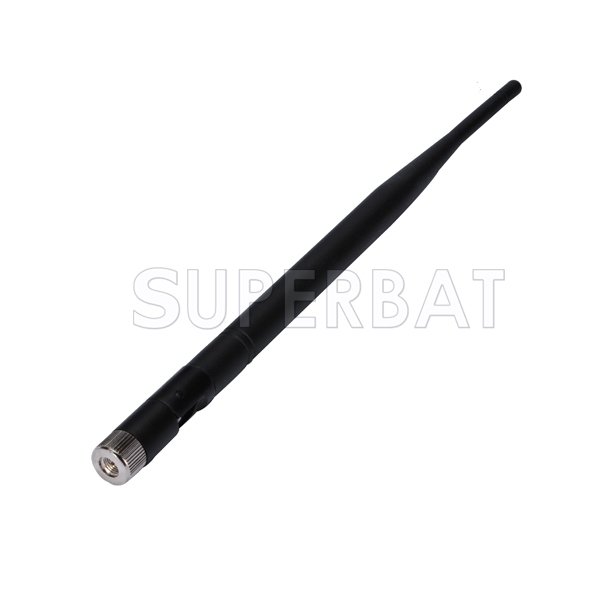

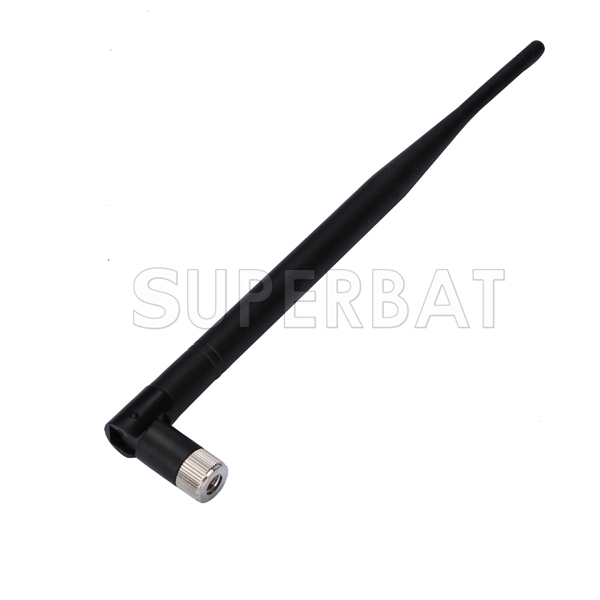

GSM Antenna 3.5 dbi 896-960Mhz Tilt and swivel design SMA Plug male

No.GM2-1669-S01SP4-035
Antenna Type：Rubber DuckNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：896-960MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：3.5dBiRadiation：OmnidirectionalV.S.W.R：≤1.5Weight：26g
CONTACT US
  • GSM Antenna 3.5 dbi 896-960Mhz Tilt and swivel design SMA Plug male
  • GSM Antenna 3.5 dbi 896-960Mhz Tilt and swivel design SMA Plug male
  • GSM Antenna 3.5 dbi 896-960Mhz Tilt and swivel design SMA Plug male
Description

Frequency (MHz): 896-960MHz
VSWR : ≤ 2
Gain: 3.5dBi
Power：50W
Bandwidth：64MHz
Input Impedance: 50Ω
Polarization：Vertical
Directionality: omnidirectional
Horizontal Beam Width：360°
vertical panel Beam Width：90°
Color:Black

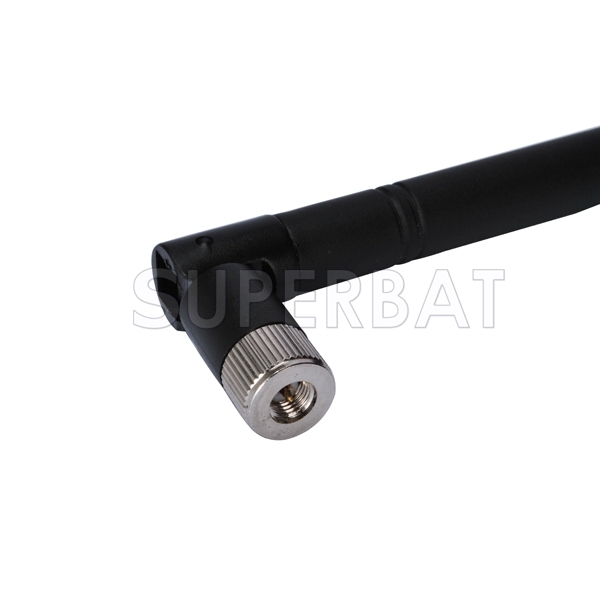

Connector : SMA Plug Tilt and swivel design
Diameter: 12mm
Length: 240mm
Weight: 26g
