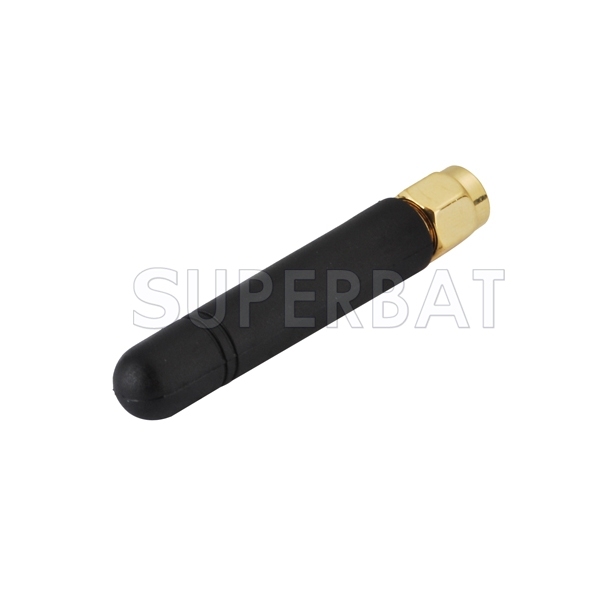

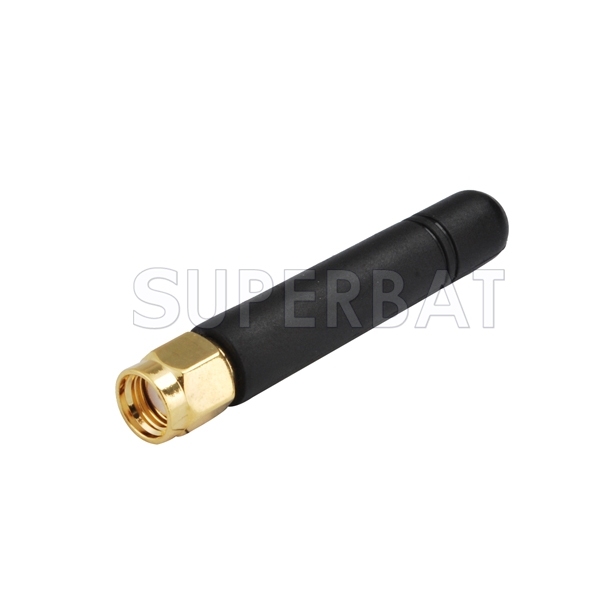

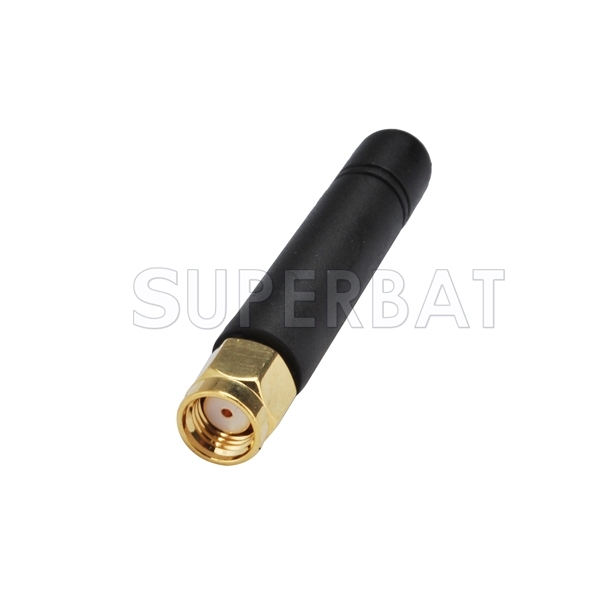

GSM/UMTS/HSPA/CDMA Antenna 1.5 dbi 890-960Mhz 1770-1990MHz RP-SMA plug

No.GM2-2641-S02SP1-015
Antenna Type：Rubber DuckNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：890-960Mhz/1770-1990MhzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：1.5dbiRadiation：OmnidirectionalV.S.W.R：<1.6Weight：5g
CONTACT US
  • GSM/UMTS/HSPA/CDMA Antenna 1.5 dbi 890-960Mhz 1770-1990MHz RP-SMA plug
  • GSM/UMTS/HSPA/CDMA Antenna 1.5 dbi 890-960Mhz 1770-1990MHz RP-SMA plug
  • GSM/UMTS/HSPA/CDMA Antenna 1.5 dbi 890-960Mhz 1770-1990MHz RP-SMA plug
Description

Frequency range(MHz): 890-960Mhz/1770-1990Mhz
VSWR: 1:1.6
Gain: 1.5 dbi
Antenna Length(mm): 48 mm
Impedance: 50ohm
Connector: RP-SMA Plug Straight
Max power: 20W
Polarization:Vertica
Housing: Black
Weight: 5g
