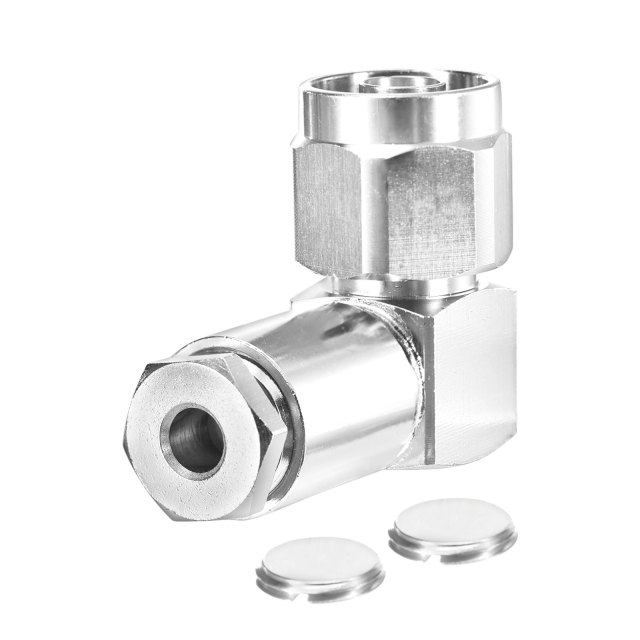

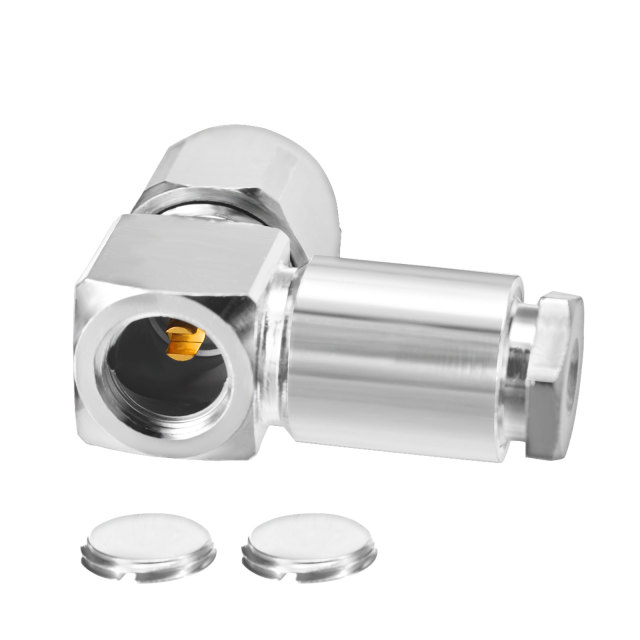

Product description:
N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 3GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.
The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.
Product specification:
Product Series:N
Product Type:Cable mount
Application:Clamp
Body Plating:Nickel-plated
Body Termination:Clamp
Cable Type:RG58,LMR195
Connector Body Style:Straight
Connector Material:Brass
Contact Plating:Nickel
Contact Termination:Solder
Gender:Plug
Impedance:50 Ohm
