Frequency Range: 2400-2500MHz/5150-5850MHz
Impedance: 50Ω
VSWR: ≤2.7
Gain: 5dBi
Power Capacity: 2w
Electric Strength test: 1KV
On and off the test: On
Polarization: Vertical
Radiation: Omni
Connector: SMA- Male

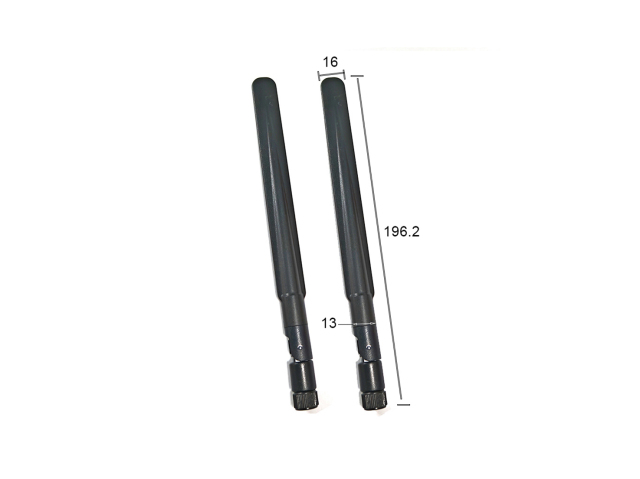

Length: 196.2±2mm
Wi-Fi stick antennas, as an innovative wireless communication solution, are gradually changing our way of life. Its unique design and excellent performance make wireless network connections more stable and efficient. Whether it's at home, in the office, or in public places, Wi-Fi stick antennas can provide excellent network coverage, allowing people to enjoy high-speed and stable network services anytime, anywhere.
• Improving signal quality
enhancing signal strength and stability, reducing signal attenuation and interference, making data transmission more reliable.
• Adapt to different environments
able to better penetrate obstacles, such as walls, and adapt to various complex indoor layouts.
• Improving transmission speed
Helps achieve higher data transmission speeds and improves network user experience.
| Frequency Range | 2400-2500MHz | 5150-5850MHz |
| Impedance | 50Ω | 50Ω |
| Gain | 5dBi | 5dBi |
| Power Capacity | 2w | 2w |
| Electric Strength test | 1KV | 1KV |
| Polarization | Vertical | Vertical |
| Radiation | Omni | Omni |
| Connector | SMA- Male | SMA- Male |
| Length | 196.2±2mm | 196.2±2mm |
| Coaxial cable | RG-178 Tansparent | RG-178 Tansparent |
| Salt-spray test | 24H | 24H |
| Working Temp. | -30℃~65℃ | -30℃~65℃ |
| Storage Temp |
-30℃~75℃ |
-30℃~75℃ |
