Home > All Collections > High Gain 2.4GHz 8dBi WiFi Directional Panel Antenna N Female, 10.4*8.5*3cm
  • High Gain 2.4GHz 8dBi WiFi Directional Panel Antenna N Female, 10.4*8.5*3cm
  • High Gain 2.4GHz 8dBi WiFi Directional Panel Antenna N Female, 10.4*8.5*3cm

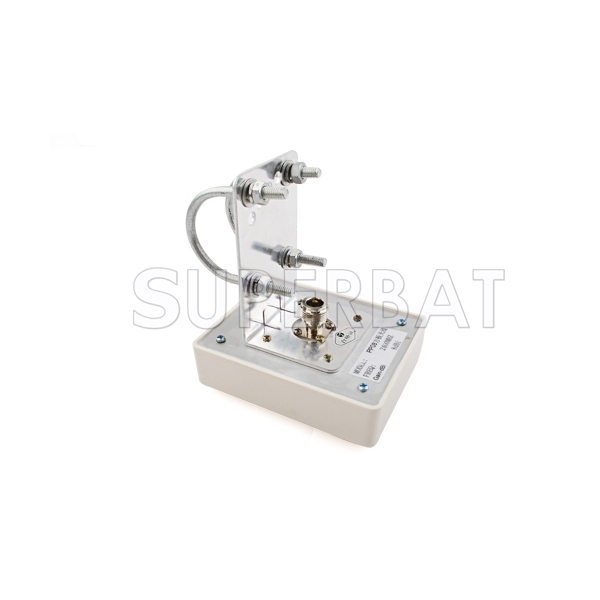

High Gain 2.4GHz 8dBi WiFi Directional Panel Antenna N Female, 10.4*8.5*3cm

No.WAP-1002-N01SJ4-080
Type：WIFI AntennaCenter Frequency：2.4GHzConnector Series：NConnector Gender：Jack StraightImpedance：50Nominal Gain：8dbiV.S.W.R：≤1.5Antenna Size：104mmX85mmX30mm
CONTACT US
  • High Gain 2.4GHz 8dBi WiFi Directional Panel Antenna N Female, 10.4*8.5*3cm
Description

Technical Specifications:
Frequency Range:2.4 GHz
Input Impedance:50 Ohm
V.S.W.R.:<=1.5
Gain:8 dBi
Polarization:Vertical, Linear
Max. Input Power:50 W
Connector location:Back
Connector:Standard N Female Connector
Mechanical Specifications
Dimension:10.4cmX8.5cmX3cm
Weight:Approx 200g
Radiating   Material:CuAg
Reflector Material:Electrolysis Board
Radom material:ABS
Horizontal Beamwidth:13 degrees
Vertical Beamwidth:17.5 degrees
