Main specifications/performance:
Frequency :
GPS L5: 1176.45MHz
GPS L1: 1575.42MHz
Impedance: 50Ω
Polarization type: RHCP
Dimension : 50mm(L)×50mm(W) ×23mm(H)
Connectors and cables: Customizable

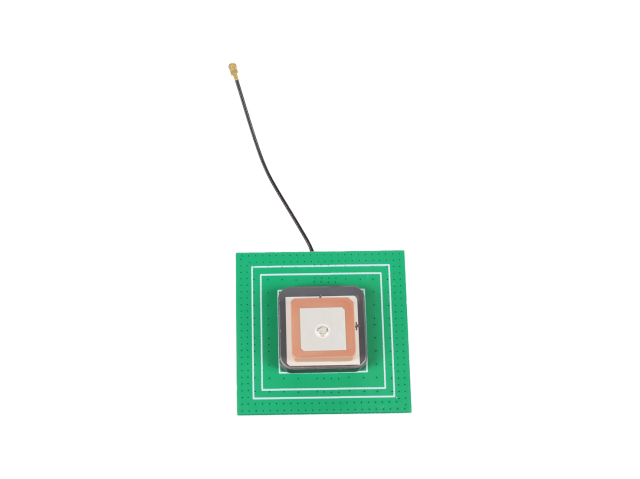

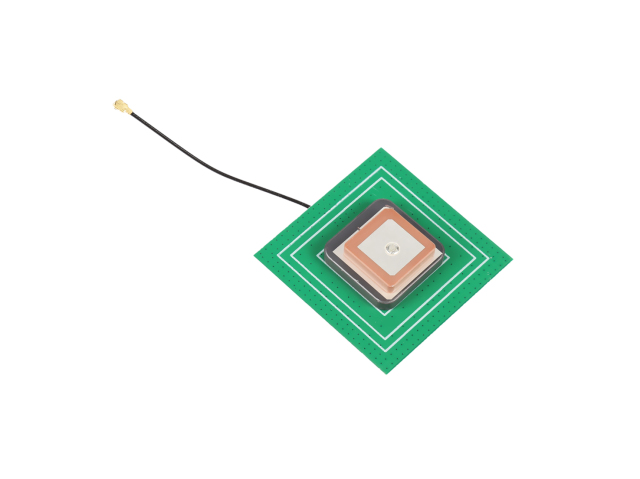

This is a right circular, internal ceramics antenna with light weight, low axial ratio, and high gain.Dual band ceramic antenna covering GPS L1/L5, providing good positioning performance
Suitable for: shared bicycles, drones, tablets, trackers, anti-theft devices, pet positioning, portable terminals, in car mobile terminals, various GPS module OEM and GSM GPRS communication module. .
High sensitivity and positioning accuracy can effectively enhance signal reception capability, enabling fast positioning and high-precision coordinate determination even in weak signal environments.
Excellent anti-interference performance design, able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices.
| Passive Electrical Specifications | |
| Frequency | GPS L5: 1176.45MHz / GPS L1: 1575.42MHz |
| VSWR |
<2 |
| Gain | <3 |
| Polarization | RHCP |
| Impedance | 50Ω |
| Mechanical Specifications | |
| Working Temperature | -45 °C to +85 °C |
| Antenna Size | 50 × 50 × 23mm |
| Connectors and cables | Customizable |
| Environmental protection | ROHS |
