Main specifications/performance:
Frequency :1561.098MHz~1575.42MHz
Impedance: 50Ω
Output VSWR: ≤2.0 max
Dimension : 12mm(L)×12mm(W)×4.5mm(H)
Connectors and cables: IPEX+φ1.13(Customizable)

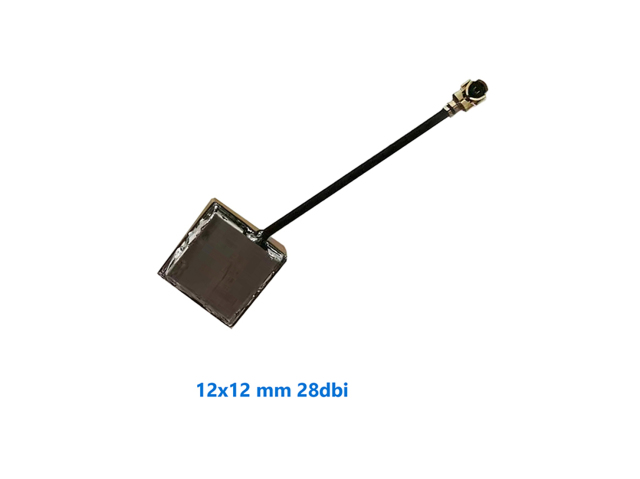

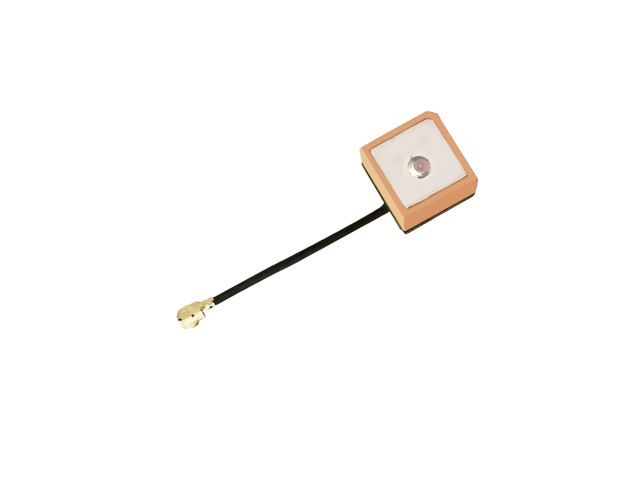

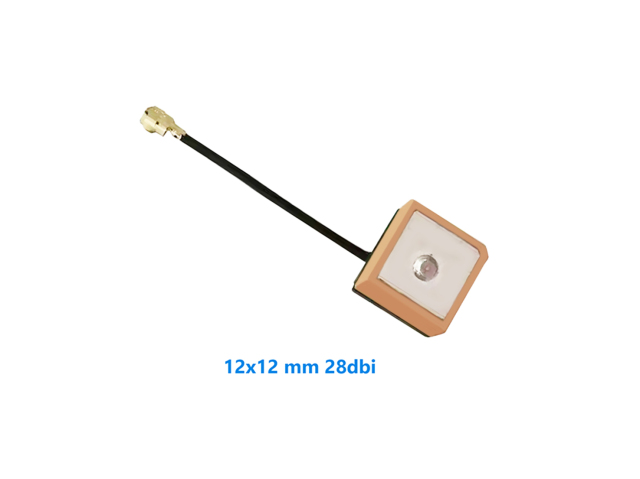

This GPS ceramic antenna is an antenna module that integrates ceramic radiation elements and low noise amplifiers (LNAs), specifically designed to enhance the reception capability of GPS signals.

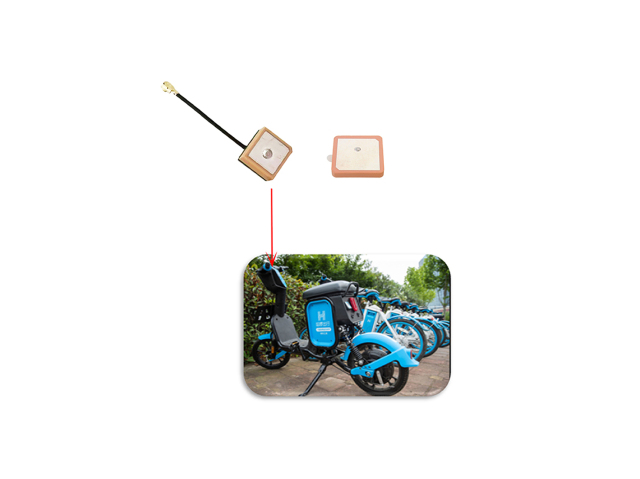

Suitable for: trackers, cars, navigation devices, drones, handheld devices, instruments, etc.
• With the advantage of high sensitivity
This active antenna can significantly improve the ability to receive weak signals, especially suitable for environments with weak signals.
• Excellent anti-interference performance design
Able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices.
| Antenna Element,LNA&Cable | |
| Center Frequency |
1561.098MHz~1575.42MHz |
| Voltage | DC 3.0±0.3V |
| Current | 5mA max |
| LNA Gain | 18±2dBi typ |
| Noise Figure | ≤2.0dB max |
| Bandwidth | 20MHz min |
| Output VSWR | ≤2.0 max |
| Output Impedance | 50Ω |
| Dimensions | 12mm(L)×12mm(W)×4.5mm(H) |
| Cable | φ1.13(Customizable) |
| Connector | IPEX(Customizable) |
