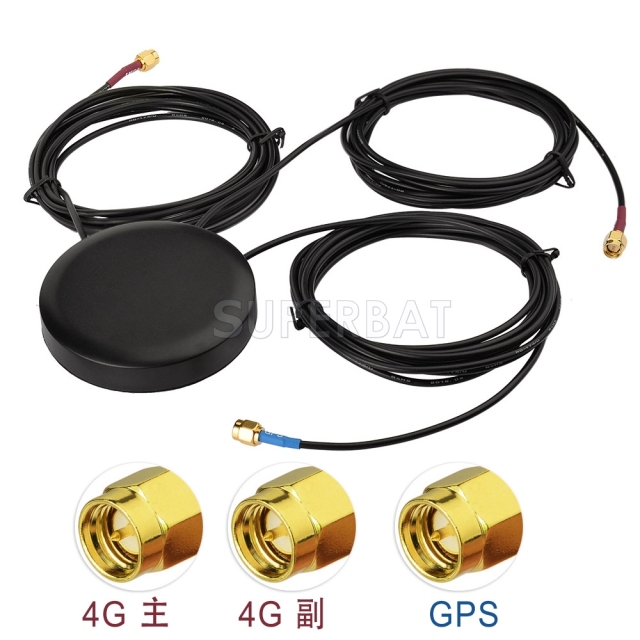

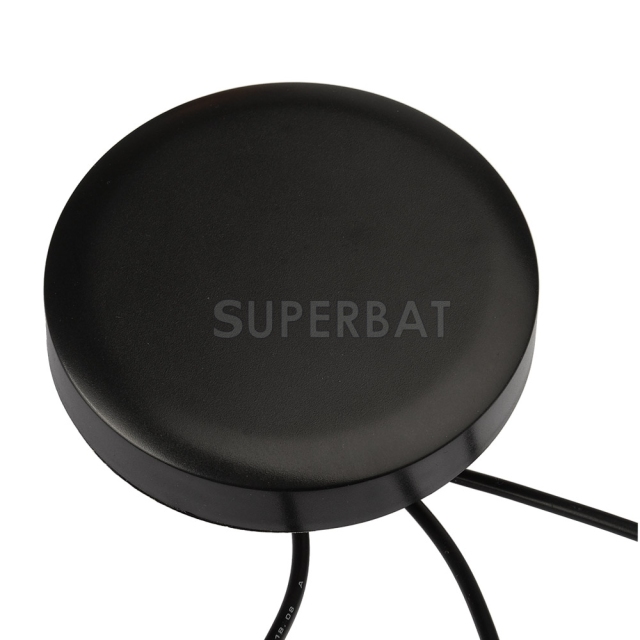

Low Profile 4G LTE Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
GPS Antenna Specification:
Center Frequency: L1:1575.42MHz±1.023 MHz
Polarization： RHCP
Gain: 2dBic（Zenith）
V.S.W.R: ＜1.5
Impendance: 50Ω
LNA Gain: 28±2dB
LNA Noise Figure: ＜2.0
LNA V.S.W.R: ＜2.0
LNA Supply Voltage: 3~5V DC
LNA Current Consumption: 20mA
4G LTE Antenna MAIN Specification:
Frequency Range: 698~960/1710~2690MHz
V.S.W.R: ＜3.0
Polarization: Linear
Gain: 2.5dBi
Impendance: 50Ω
4G LTE Antenna AUX Specification:
Frequency Range: 698~960/1710~2690MHz
V.S.W.R: ＜3.0
Polarization: Linear
Gain: 2.0dBi
Impendance: 50Ω

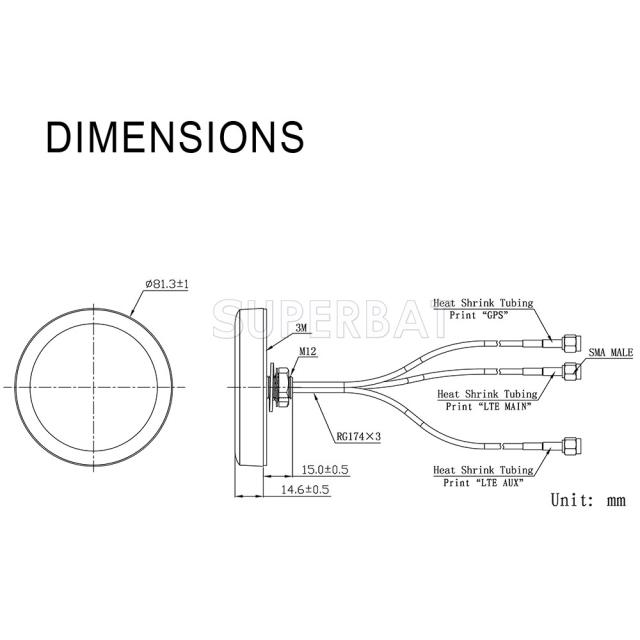

Mechanical:
Cable: RG174
Cable Length: 3 Meters

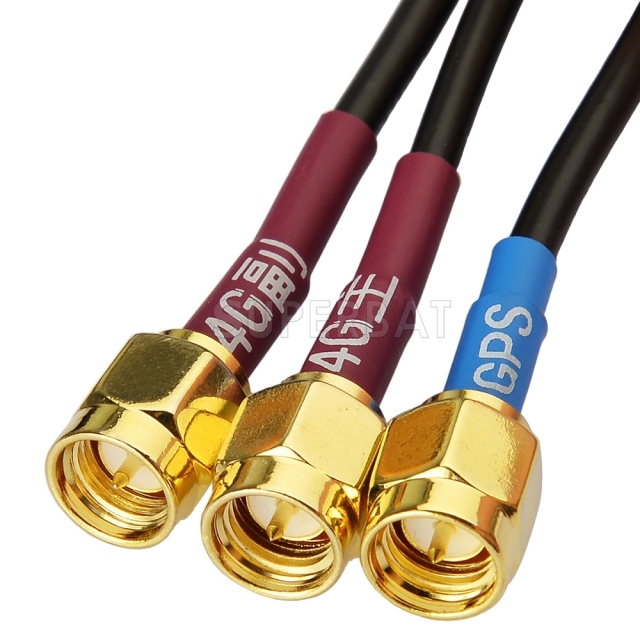

Connector: SMA Male Connector
Material: ABS

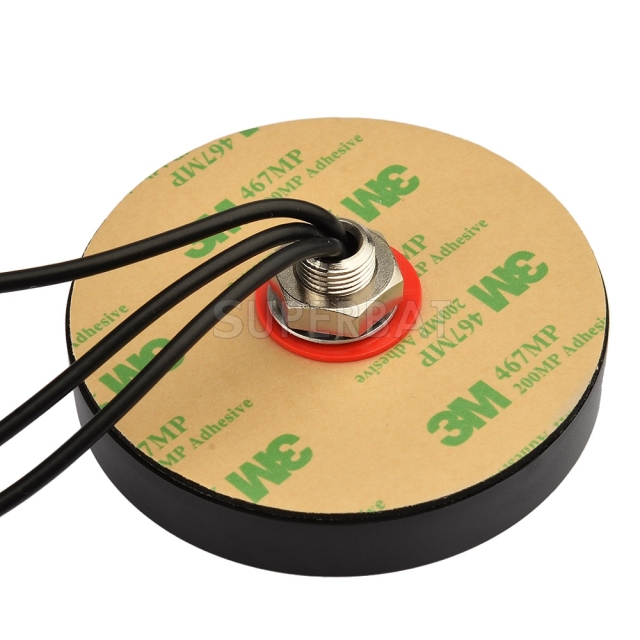

Mounting Method: Screw Thru Hole of 12mm Diameter
Weight: 180g
Environmental:
Operating Temperature: -40℃~+85℃
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
