MC3 Solar Connector Features
1. MC3 Solar Connector comes with an anti-aging, ultraviolet resistant housing.
2. The Solar Connector is suitable for use in harsh outdoor environments.
3. It adopts riveting and tight hoop connection of cable.
4. Male and female points are provided with reliable seal ring which is easy to lock and open.
Rated Voltage(VDC): 1000
Rated impulse voltage(V):8000
Rated Current (A): 25A
Working Temprature :-40°C- 90 C
Rated Cross Section of Conductor: 4mm2
Degree of Protection (IP Code): IP67
Contact Material: Copper
Insulation Material: TPE
Authentication: TUV
Cable length :9.5cm
Type of cable :4mm2
Package include :

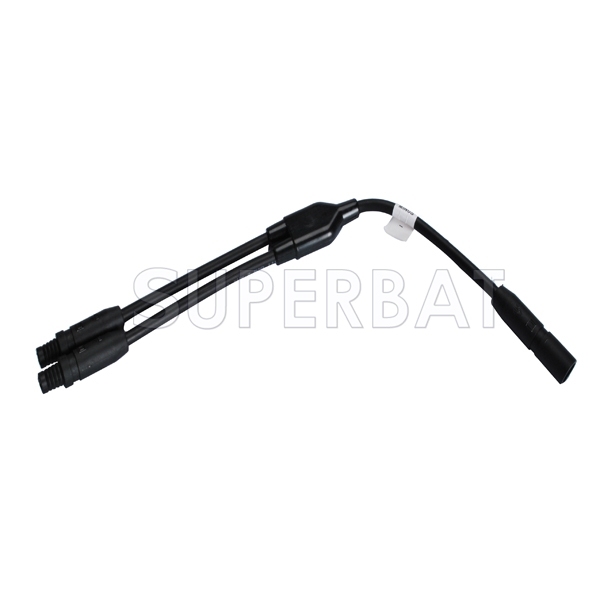

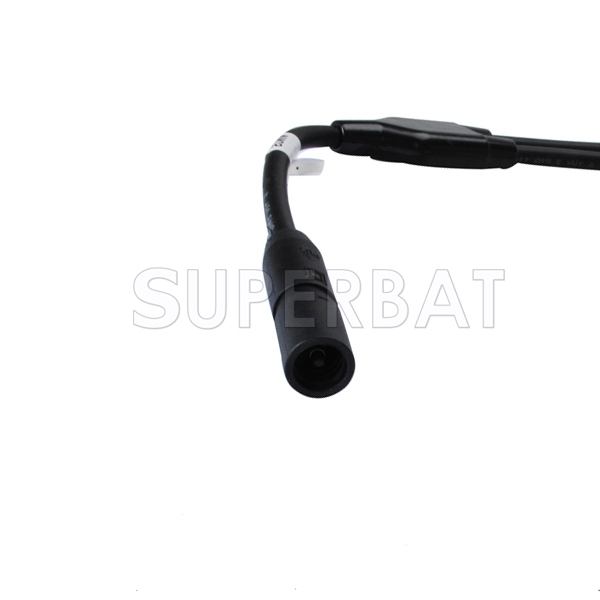

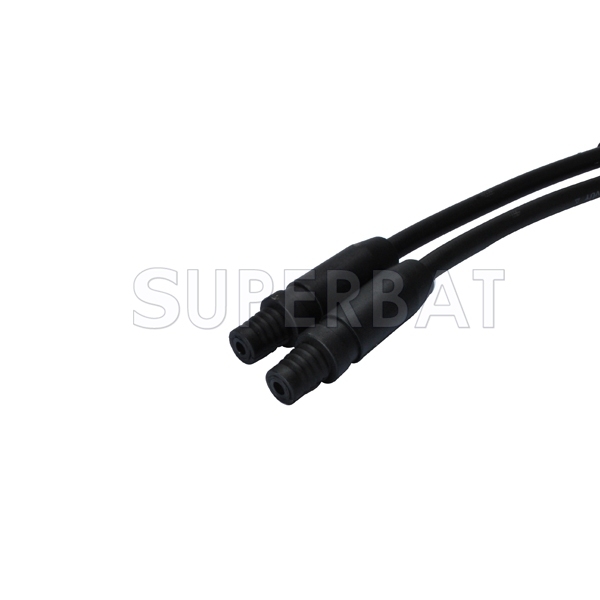

1x solar panel cable Y type MALE to two FEMALE with 9.5 cm
