1.Water proof and dust proof
2.Simple,quick installation
3.compatible with MC3 solar connector
4.competitive price
Main feature:
1.Connector adopts touch and insertion of reed with inner-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation
Technical data:
Insulation material:PPO/TPE/PA
Rated current:30A
Rated voltage:1000V
Test voltage:6KV(50Hz,1Min)
Contact material: copper, tin plated
Degree of protection:IP67
Flame calss:UL94-V0
Insertion force: ≤50N
Withdrawal force: ≥50N
Ambient temperature range:-40degree~+90degree
Suitable cable:2.5~6.0mm2AWG14/12/10
Technical data:

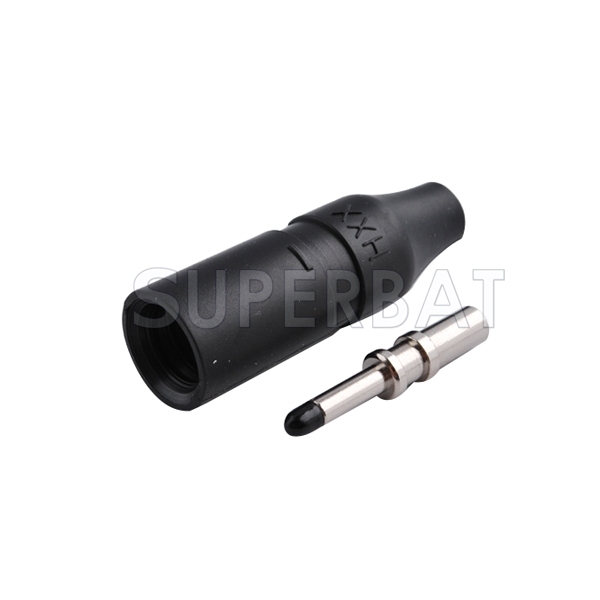

1pcs MC3 male connector

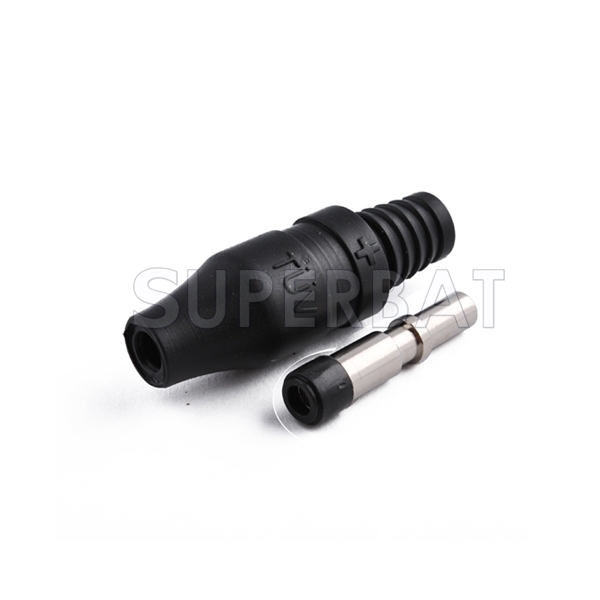

1pcs MC3 female connector
