Rated Voltage : TUV 1000V DC/ UL600V DC
Rated current : 20A-30A
Suitable cable cross section : 2.5mm2 ～ 6.0mm2 / 14AWG ～ 10AWG
Pin dimension : Ø4.0mm
Proof voltage : TUV 6000V AC(1 MIN)/ UL 2200V DC (1MIN)
Polution degree : 2
Protection class : Class 2
Contact Material : Copper, Tin plated,PPO
Contact Resistance : ≤ 5mΩ
Degree of protection : IP 67
Withdrawal Force : ≥ 50N
Insertion force : ≤ 50N
Temprature range : -40˚ C~+85˚ C
Flame class : UL94V-0
Package included:

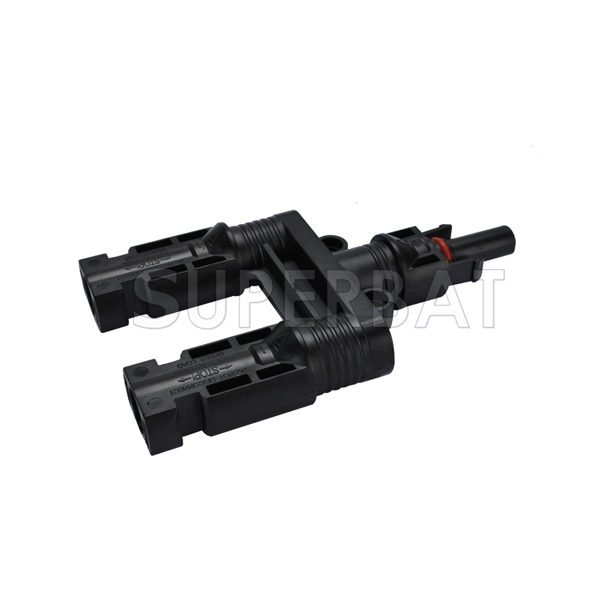

1pcs MC4 T Branch Adapter ONE Female to TWO Male
