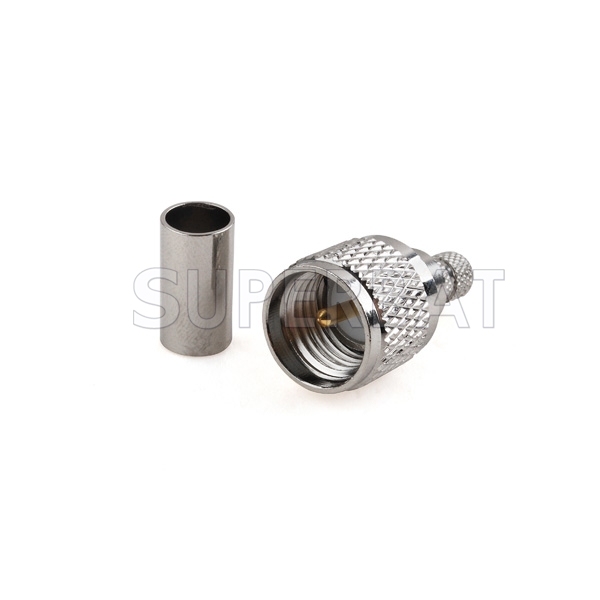

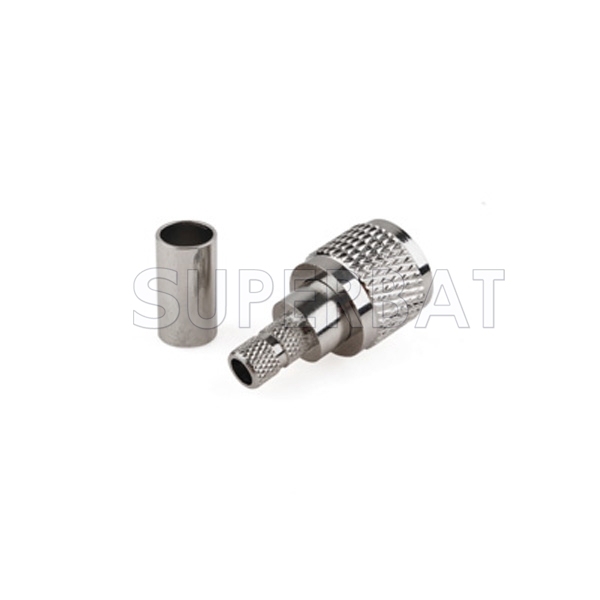

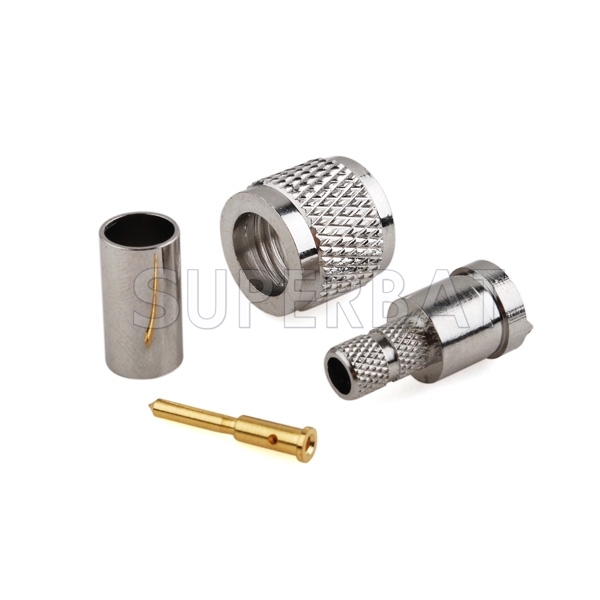

Miniature versions of UHF connectors, Mini-UHF connectors are designed for applications where size, weight, and cost factors are critical. With a miniature 3/8-24 thread size, these connectors provides excellent RF performance for applications up to 2.5 GHz.
Mini-UHF connectors terminate to RG-58, RG-58A, RG-58B, RG-58C, and Belden 9258 cables. Crimp-type cable plugs and jacks are available as well as panel and printed circuit board receptacles.
Features and Benefits
Crimp-type cable terminations provide low installation cost
Diecast bodies and molded insulators ensure low cost
Teflon insulators provide higher temperature range
Peak high voltage rating of 508 volts
Applications
Antennas
Cable Modems
PC/LAN
