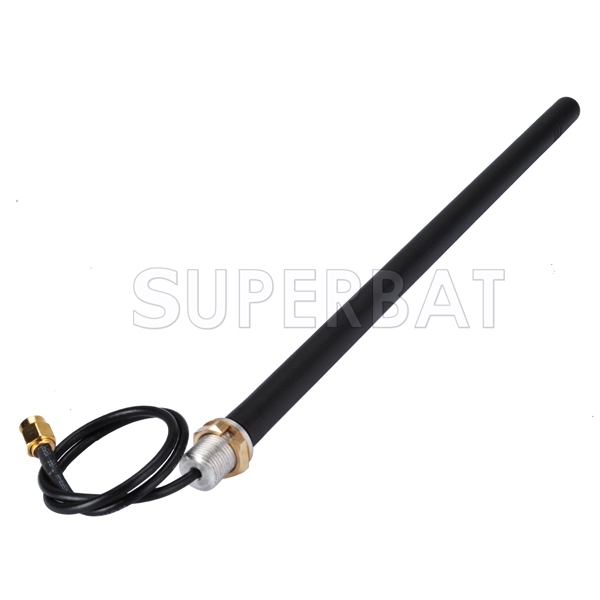

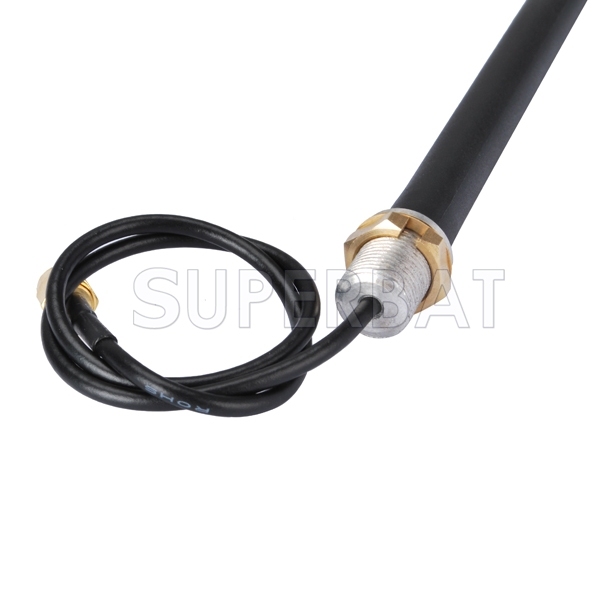

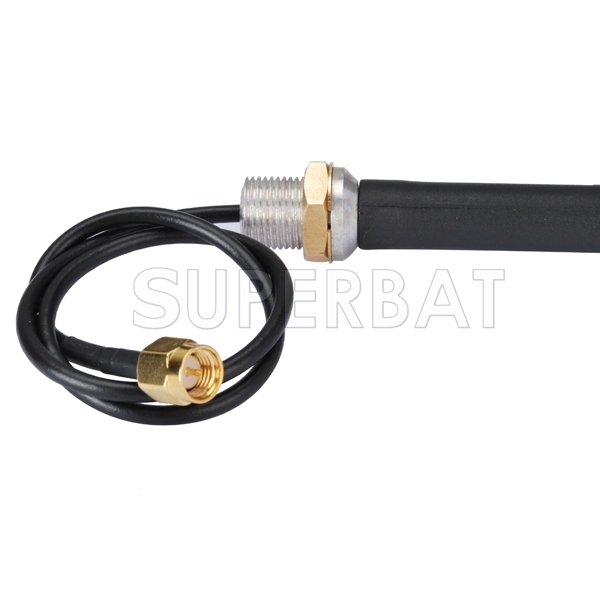

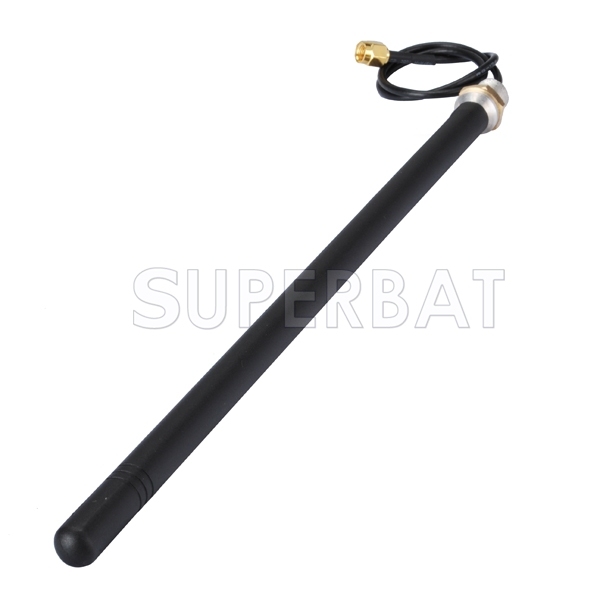

Mobile GSM Antenna 890-960/1710-1880MHz 3.5dbi Antenna Vertical SMA plug male

No.GM3-2298-S01SP-035-30
Antenna Type：Hole/Fixed/Wall/Ceiling MountNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：890-960/1710-1880MHzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：3.5dBiRadiation：OmnidirectionalV.S.W.R：≤1.5Cable Type：RG174Cable Length：30cmWeight：33g
CONTACT US
  • Mobile GSM Antenna 890-960/1710-1880MHz 3.5dbi Antenna Vertical SMA plug male
  • Mobile GSM Antenna 890-960/1710-1880MHz 3.5dbi Antenna Vertical SMA plug male
  • Mobile GSM Antenna 890-960/1710-1880MHz 3.5dbi Antenna Vertical SMA plug male
  • Mobile GSM Antenna 890-960/1710-1880MHz 3.5dbi Antenna Vertical SMA plug male
Description

Frequency Range(MHz): 890-960/1710-1880MHz
Gain 3.5dBi
VSWR ≤2.0
Polarization Vertical
Impedance 50Ω
Maximum Input Power 50W
Cable type RG174
Cable length 30CM
Cable Connector: SMA male or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Operating Temperature:-40℃ to+80℃
Mechanical Specifications:
Antenna Dimension Φ11×270mm

Weight: 33g
