N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.
Offers a few styles of 75 ohm impedance versions of N connectors. They are not matable with the 50 ohm connectors.
The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.

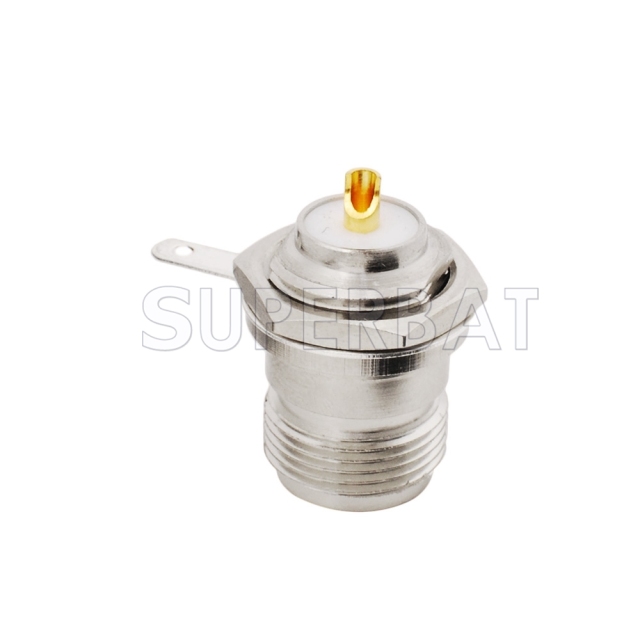

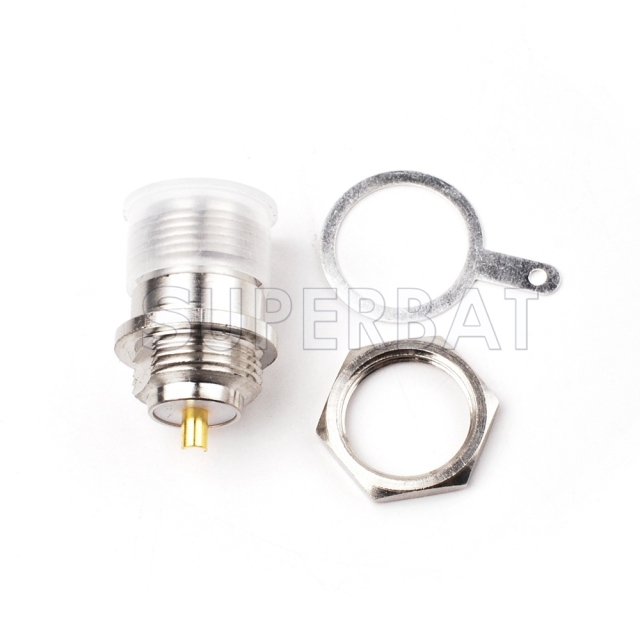

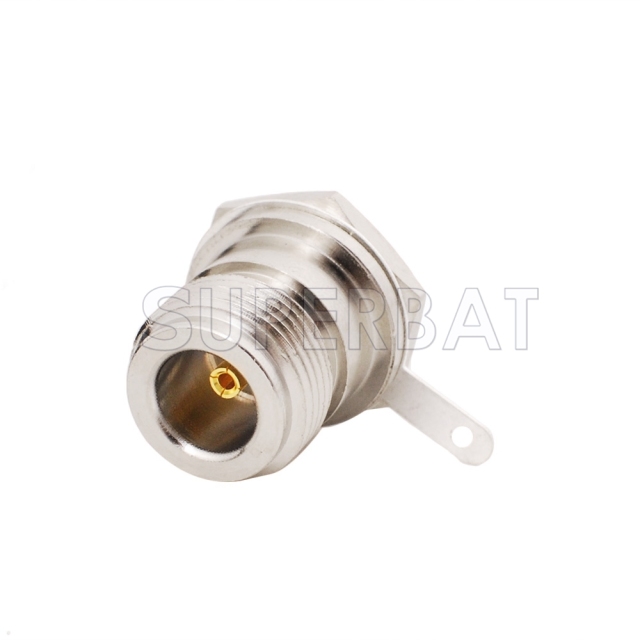

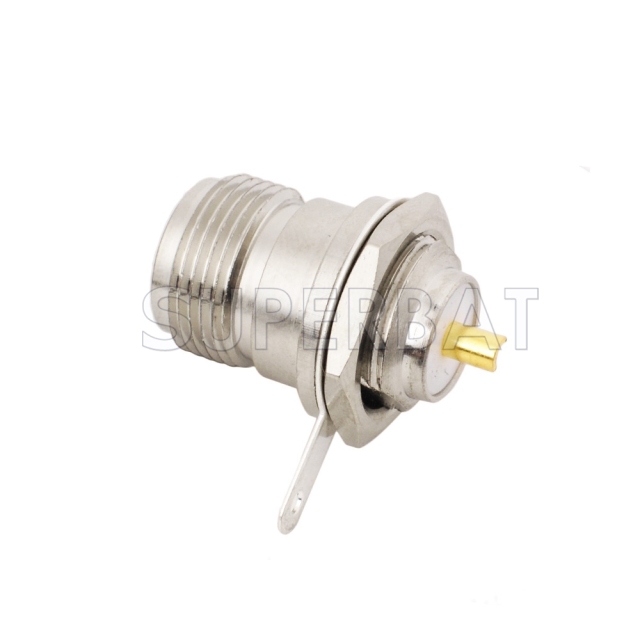

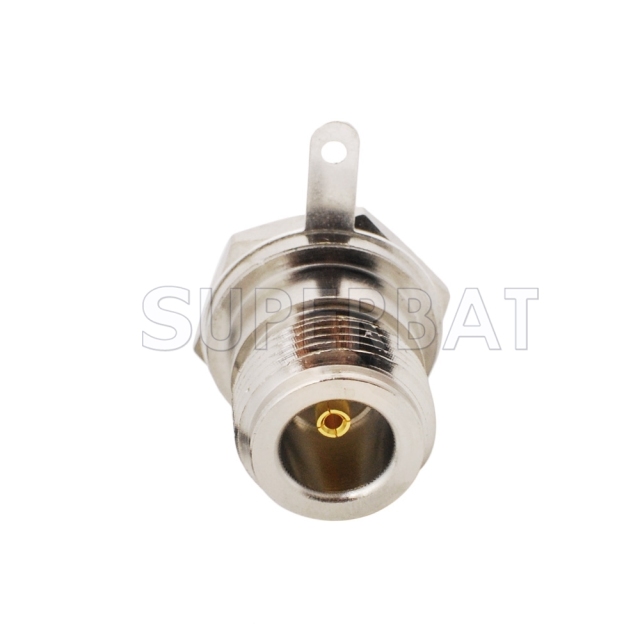

Product Series: N
Product Type:
Panel Mount
Application: -
Attachment / Affixment: -
Body Plating: Nickel-plated
Body Termination: -
Cable Type: -
Connector Body Style:
Straight
Connector Material: Brass
Contact Plating: Nickel-plated
Contact Termination: -
Gender: Jack
Impedance: 50 Ohm
