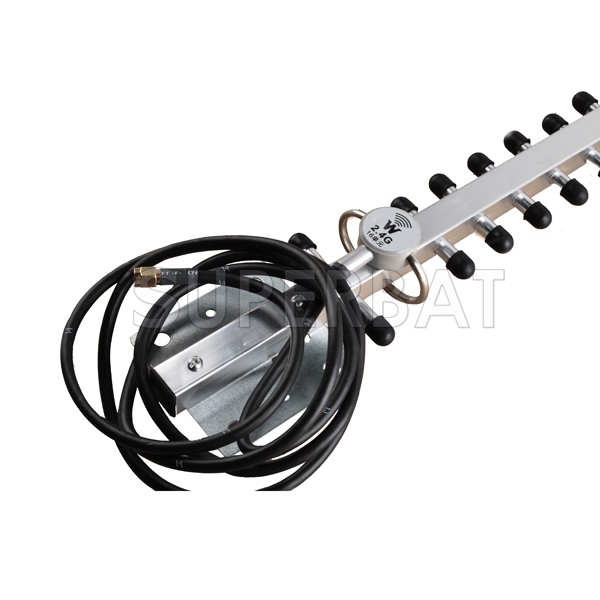

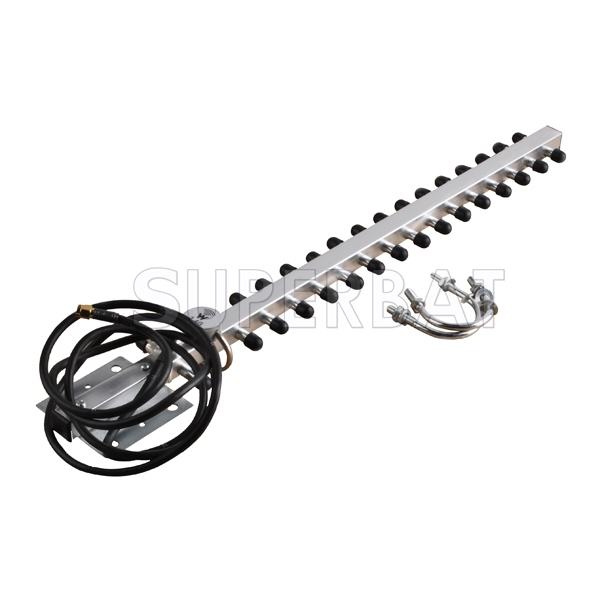

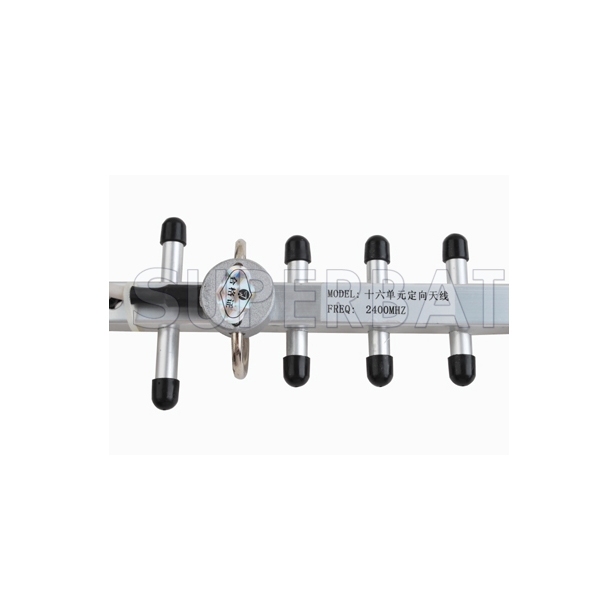

New 2400~2483MHz 2.4GHz 16dBi RP SMA Plug Connector Wifi Yagi Antenna Cable 1.5M

No.WAY-1398-S02SP-160-150
Type：WIFI AntennaCenter Frequency：2.4GHzConnector Series：SMAConnector Polarity：Reverse PolarityConnector Gender：Plug StraightImpedance：50Nominal Gain：16dbiV.S.W.R：≤1.5Cable Length：5M
CONTACT US
  • New 2400~2483MHz 2.4GHz 16dBi RP SMA Plug Connector Wifi Yagi Antenna Cable 1.5M
  • New 2400~2483MHz 2.4GHz 16dBi RP SMA Plug Connector Wifi Yagi Antenna Cable 1.5M
  • New 2400~2483MHz 2.4GHz 16dBi RP SMA Plug Connector Wifi Yagi Antenna Cable 1.5M
  • New 2400~2483MHz 2.4GHz 16dBi RP SMA Plug Connector Wifi Yagi Antenna Cable 1.5M
Description

Frequency Range-MHz: 2400~2483MHz
VSWR : ≤1.5
Input Impedance-Ω: 50
Gain-dBi : 16dbi
Polarization : Vertical
F/B ratio-dB
Horizontal Beamwidth -°: 36
Vertical Beamwidth -°: 23
Maximum Power -W : 50
Bandwidth-MHz : 50MHZ

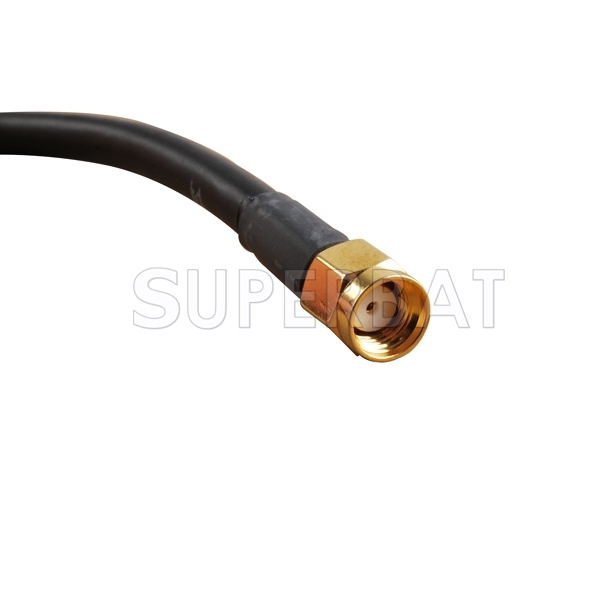

Connector: RP SMA male connector
Mechanical Specifications
Dimensions-mm
Weight-kg: 1
Length-cm :
Mounting Mast Diameter-mm: Φ50-100
Cable length- cm : 150cm
