Home > All Collections > NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio

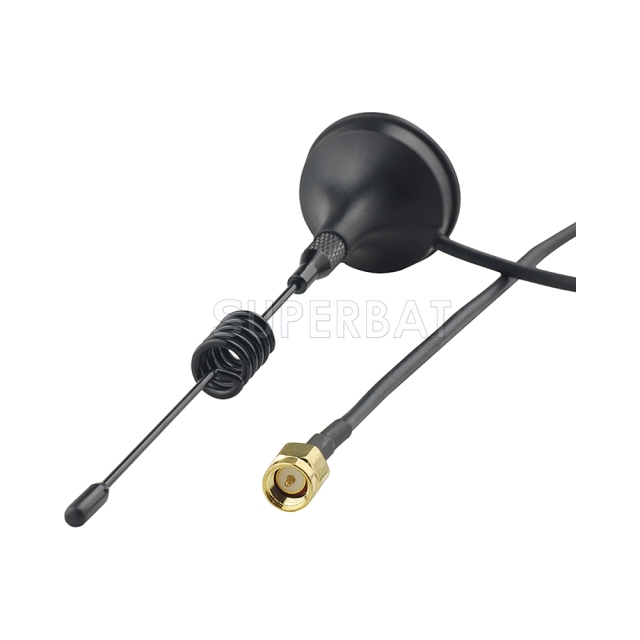

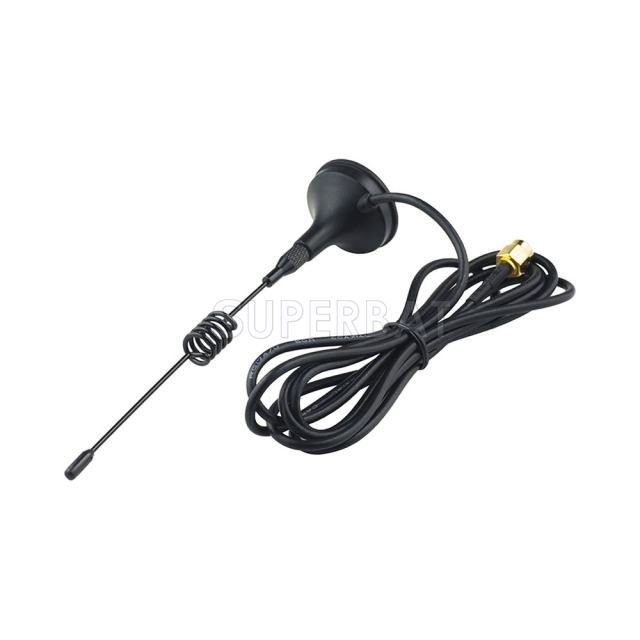

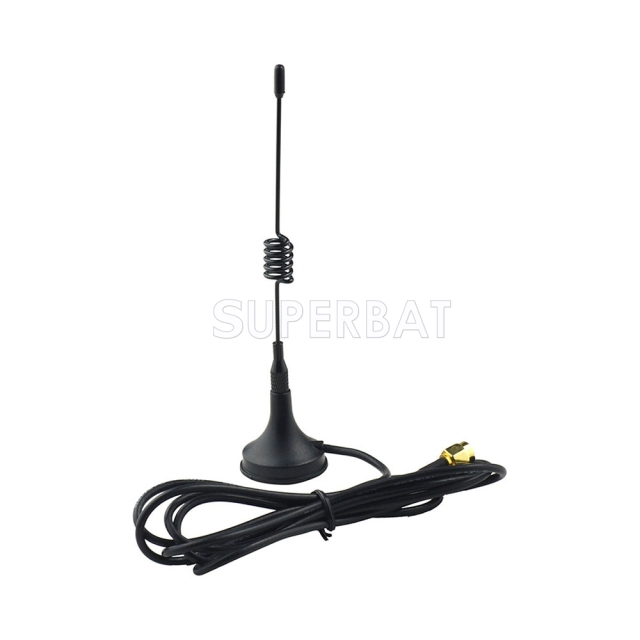

NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio

No.EA1-1996-S01SP-030-300
Type：433Mhz AntennaCenter Frequency：433MhzConnector Series：SMAConnector Polarity：StandardConnector Gender：Straight plugImpedance：50 ohmNominal Gain：3 dBiV.S.W.R：≤1.5Cable Length：300cm
CONTACT US
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
  • NEW!!Antenna 433Mhz,3dbi SMA Plug with Magnetic base,3m cable for Ham Radio
Description

Features:
Frequency Range（MHz）: 433+/-15
Bandwidth（MHz） 30
VSWR ≤1.5
Gain（dBi） 3
Max Input power（W）50
Input Impedance（Ω） 50
Polarization Type :Vertical
Cable Length﹙mm﹚: 3000mm or other
Cable Type RG174
Connector Type SMA Male connector (Default )/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Weight: 0.080KG
Mounting Magnetic
Radiation :Omni-direction
Max Diameter :30mm
Min Diameter :1.5mm
Max wind speed :200km/h
