Technical Specifications
Up-link Frequency: 1785-1870MHz
Down-link Frequency: 1805-1880MHz
Gain:Up Link: 55dB, Down Link: 60dB
In-band Ripple: <=3 dB
Spurious emission of out-band: >=17dBm
Impedance: 50 ohm
Power supply : DC 12V (AC 220V power adapter provided)
Working temperature: -10℃ to +60℃
noise figure:<=4 dB
Humidity: 5-95%
working voltage:AC110~220V 45~55Hz
size:200*130*20mm
Standard:To the GB6993-86 standard
Package
1. A 70 dB GSM Cell Phone Repeater
2. A 220V AC power adapter for the Repeater unit

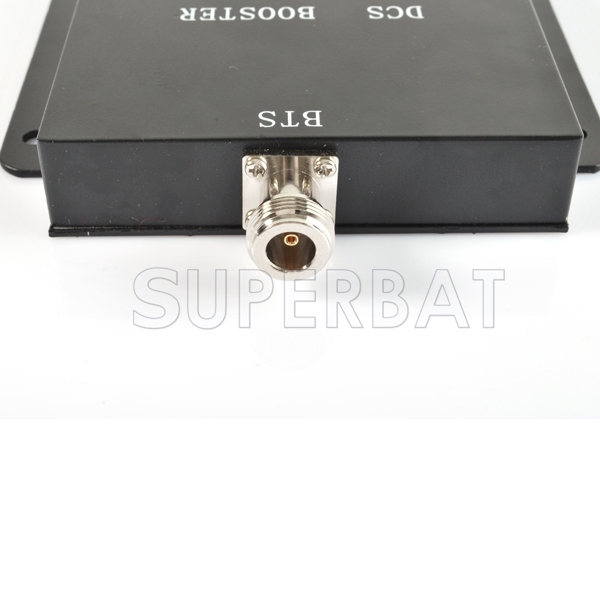

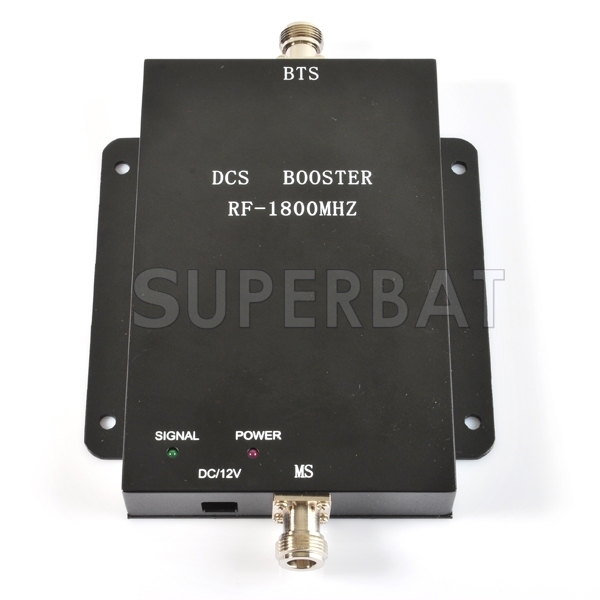

The Repeater has three connectors: 1. a DC connector for a DC 12V input. 2. A N-Type RF connector for connecting to an indoor antenna. 3. A N-Type connector for connecting to an outdoor antenna.
The installation is simple and no configuration or tuning is required. Install the Yagi and aerial antennas outdoor and indoor respectively, connect the cables and power, and go!
