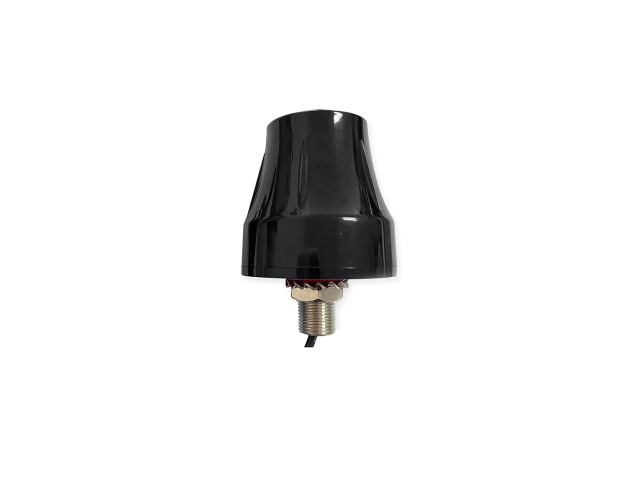

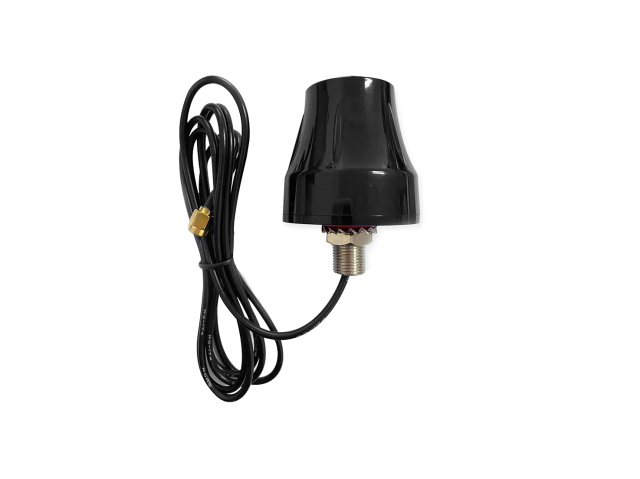

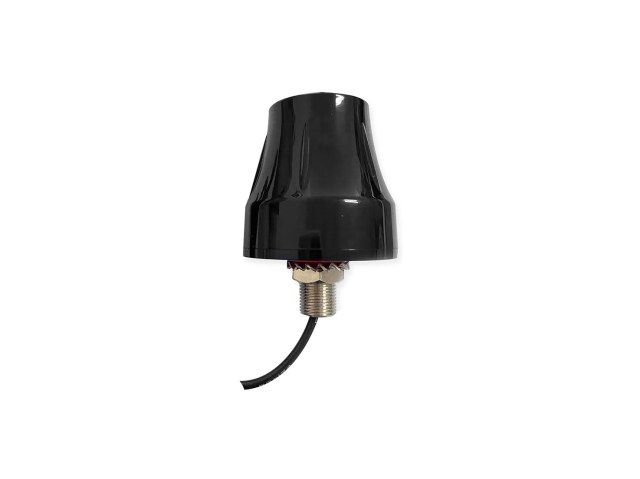

This outdoor 4G antenna covers 4G BAND-5/8, BAND1/3/38/39/40/41
It has compact size, and nice appearance, which is widely be used on Vending Machines, Sharing charging pile, vehicles and other smart city & home applications need to have 4G signal.
Frequency of this antenna is customizable, we can offer 4G+GPS+BT/Wi-Fi or other combination frequency design, please contact with Mayxu@vlg.com.cn.
OEM/ODM are availiable for this antenna. We have an over 100-engineer team is ready to provide support.
• Compact Size
This antenna has compact size, which can well save the installation space, and make the installation more easily.
• Easy Installation

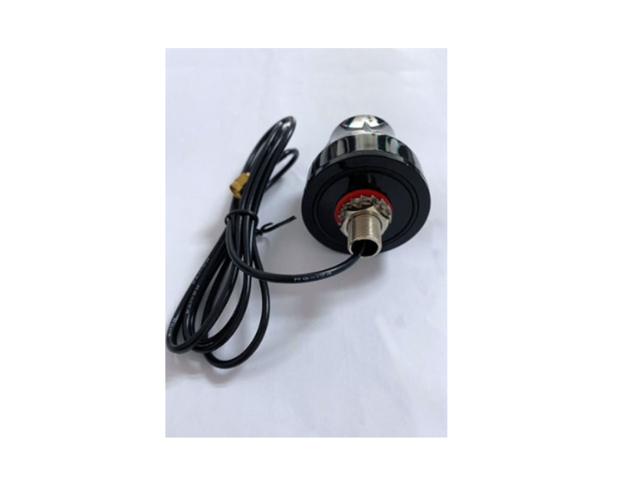

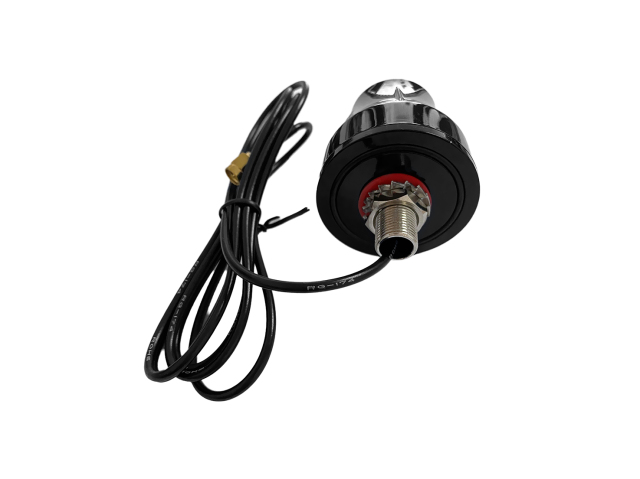

This screw mount omnidirectional antenna is easy to install.
• High integration
This 3-in-1 combination antenna is specially desing for application that require 4G， blue-tooth/wifi connection & GPS positioning function in one devices.
• Wide applicability

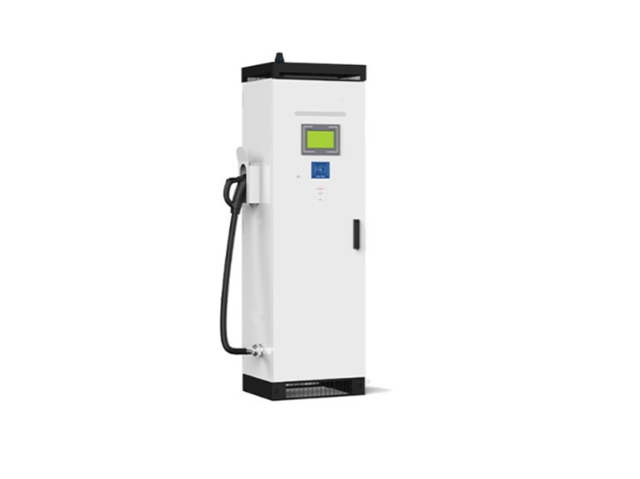

For now, our clients have used this antenna on Vending Machines, Sharing charging pile, vehicles. It can be widely be used on different smart city applications.
| 4G Antenna | Wifi/BT Antenna | GPS Antenna | |
| (1) Frequency range: |
820~960, 1710~2690 Mhz BAND1/3/5/8/38/39/40/41 |
2400-2500 Mhz | 1559-1585 Mhz |
| (2) V.S.W.R: | <3.0 | <2.5 | <2.0 |
| (3) Impedance: | 50Ω | 50Ω | 50Ω |
| (4) Gain: | ＜ 4.4dBi | ＜-2.7dBi | ＜0.3dBi |
| (5) Polarization: | Linear | Linear | Vertical |
| (6) Efficiency (Max) | 41% | 20% | 42% |
| Mechanical Specifications | |
| (1) Size(mm) | ∅46.2*17.7 |
| (2) Connector Type | SMA (Customize) |
| (3) Radome Color | Black |
| (4) Mounting Type | Stud installation |
| Environmental Requirements | |
| (1) Operating temperature | -30℃ ~ +65℃ |
| (2) Storage Temperature | -30℃~75℃ |
