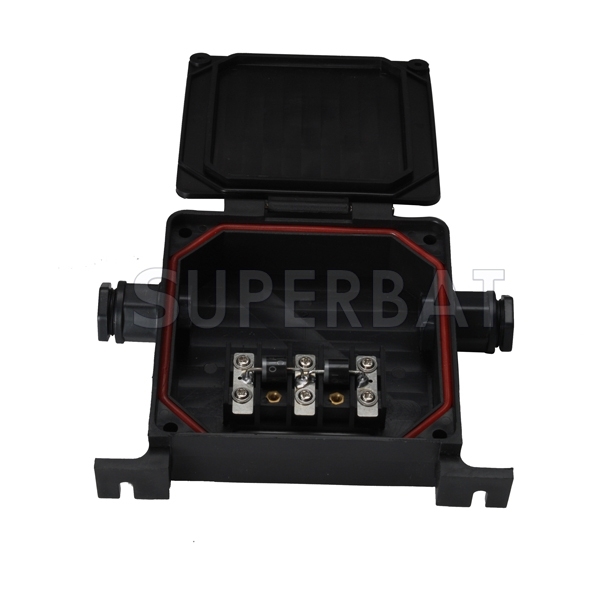

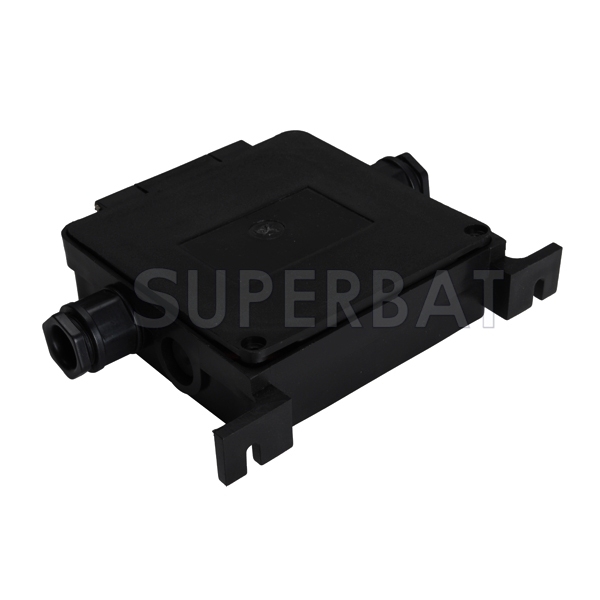

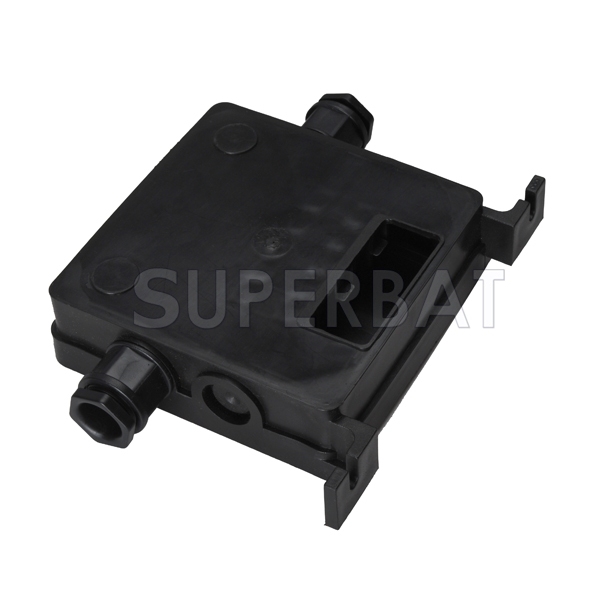

Subject PV Junction Box
Type of appliance PV Junction Box for Thin-Film Modules
Trademark Hong Xin Xu
Model No. PV-1097-JB013
Rated Voltage (VDC) 1000
Rated Current (A) 6A
Diodes 10A10 1pcs /2PCS
Number of Terminals 2/3
Power Range 50W/70w
Application Class (Class A/B/C) A
Pollution Degree (1/2/3/4) 3
Overvoltage Category (I / II / III / IV) III
Low Ambient Temperature (°C) -40°C
Upper Ambient Temperature (°C) +85°C
Enclosure Rating ( RTI and Flammability Class) UL94-V0
Wire Cross Section Area Range 4mm² defalut , Optional :2.5mm²-4mm²
Wire Length 90cm or Arbitrary length
Degree of Protection (IP Code) IP67
Back Sheet of PV Module TPT,TPE,PET,glass
Contact Material Copper
Insulation Material PPO
Overall Dimensions 100*100*30mm
Outlet of PV Junction Box TWO
Net Weight 0.120kg
Welcome to visite our store
Package included: 1pcs PV Junction Box
