RSU antenna GPS 28dB (Y2000)
Frequency range: GPS LI &BDS B1
Passive gain: 2.0dB
LAN gain :28±3dB
Standing wave: ≤3
Connector: N-J/N-K
Size: φ42mm×270mm(H)
Voltage: 3-5V

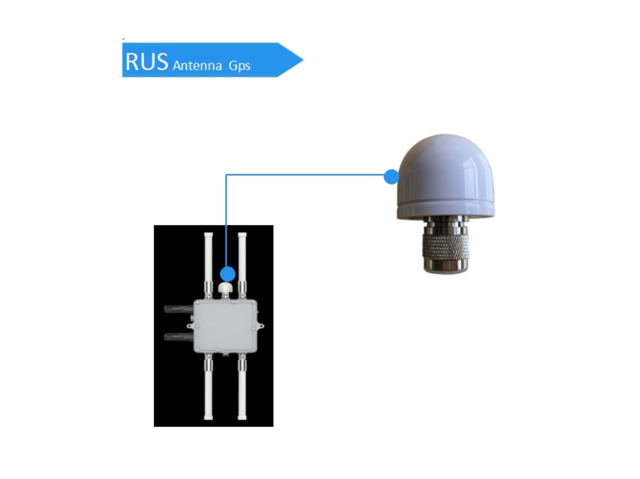

Application:Highway toll management，Urban road management，Management of parking lot,Vehicle networking application
This timing antenna has specially compact size, covered GPS & Beidou Satellite band, it has Beautiful appearance, good water resistance, corrosion resistance and high temperature resistance, the antenna can reliablely and continuously working for a long time, without influence by the outer environment.It plays an important role in intelligent transportation system and electronic toll collection system, providing a convenient and efficient solution for modern traffic management.
• High gain, precise timing
LNA:28DB, strong anti-signal interference
• Small size, strong, waterproof
Able to withstand harsh weather conditions and long-term use
• Able to communicate with a variety of on-board units (OBUs)
ABS durable and drop resistant

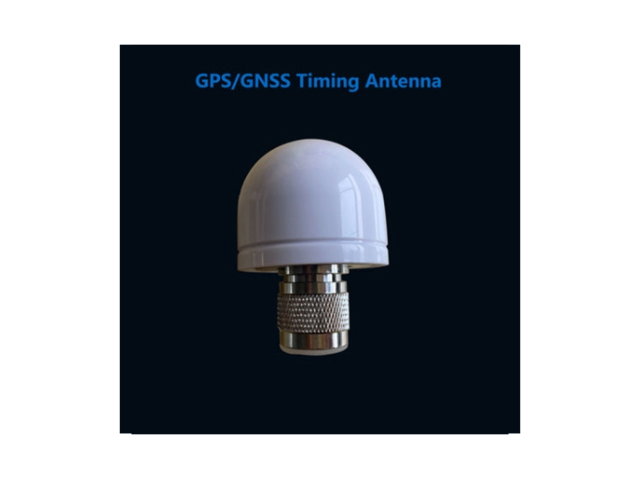

Specification- Type 1
| Frequency Range(MHz) | GPS LI &BDS B1 (1575.42 GHz \1561.098MHz) |  |
| MHzPolarization | RHCP | |
| Gain (dBi) | Elevation 90°≥2 | |
| LNA Gain(dB) | 28±3 | |
| Axial Ratio(dB) | Elevation 90°≤5 | |
| Noise Figure | ≤2.0dB | |
| V.S.W.R | <2.5 | |
| Impedance(Ω) | 50 | |
| voltage | 3V～5V | |
| Operating current（mA） | <20 | |
| Dimensions (mm) | Φ42×56.5 | |
| Operation Temp. | -40℃ to +75℃ | |
| Connector | N-K | |
| Environment | Outdoor | |
| Waterproof Grade | IP66 | |
| Humidity | 95% |

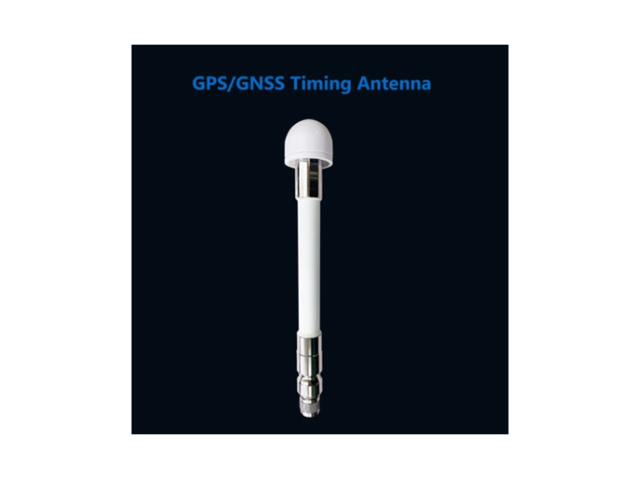

Specification- Type 2
| Frequency Range(MHz) | GPS LI &BDS B1 (1575.42 GHz \1561.098MHz) |  |
| Polarization | RHCP | |
| Peak Gain (dBi) | 2 | |
| LNA Gain(dB) | 28±3 | |
| Axial Ratio(dB) | ≤5 | |
| V.S.W.R | ≤2.5 | |
|
Noise Figure |
≤2.0dB | |
| Impedance(Ω) | 50 | |
| voltage | 3V～5V | |
| Operating current（mA） | <20 | |
| Dimensions (mm) | Φ42×270 | |
| Operation Temp. | -40℃ to +75℃ | |
| Connector | N-J | |
| Environment | Outdoor | |
| Waterproof Grade | IP66 | |
| Humidity | 95% |
