Home > All Collections > Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle

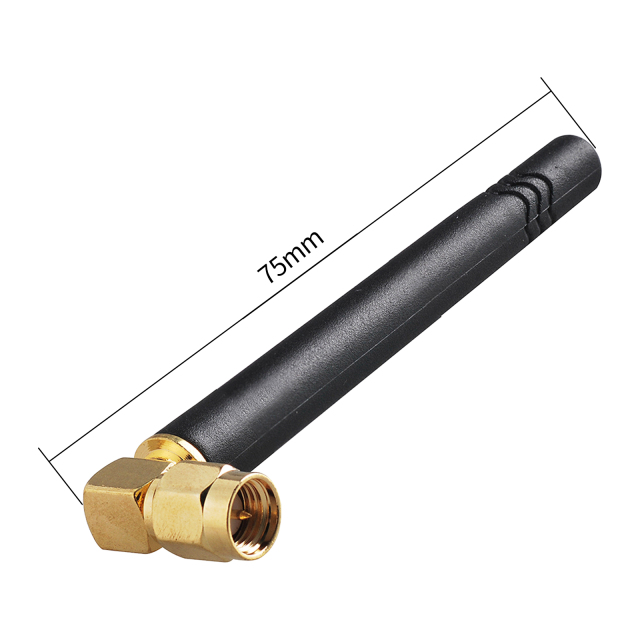

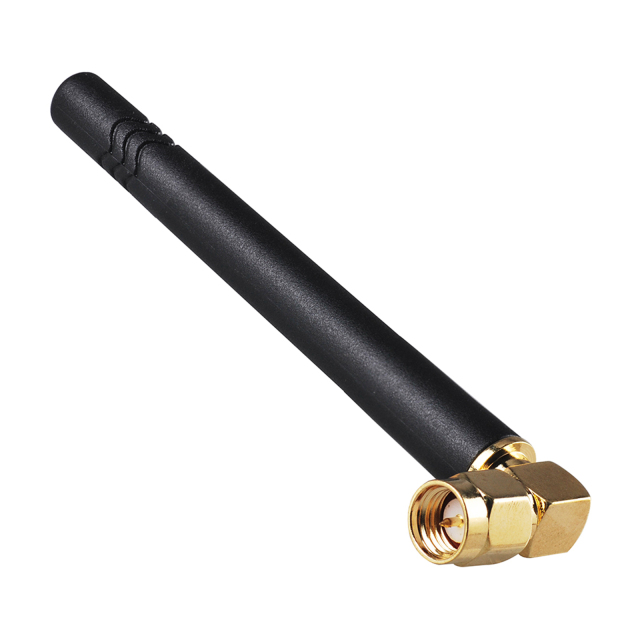

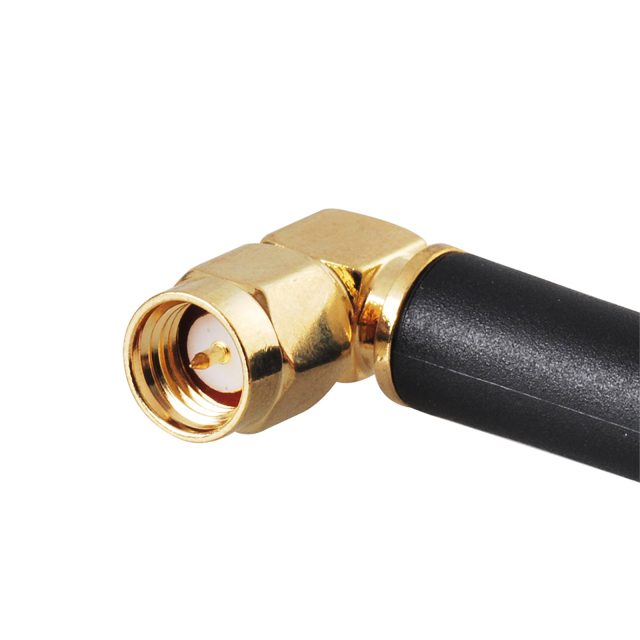

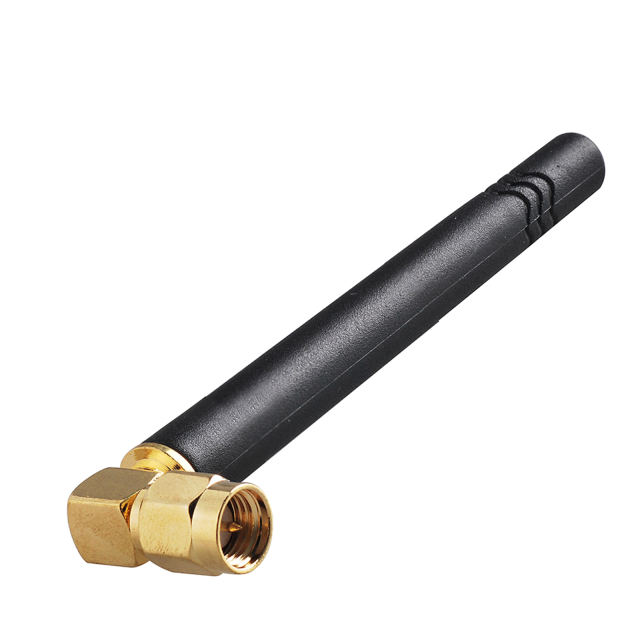

Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle

No.GM2-1297-S01RA1-020
Antenna Type：Rubber DuckNetwork：GSM/GPRS/EDGE/CDMA AntennaFrequency：824-960MhzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：2dbiRadiation：OmnidirectionalV.S.W.R：≤1.5Weight：7g
CONTACT US
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
  • Rubber Duck GSM Omni-directional Antenna 2 dbi 824-960Mhz SMA Plug right angle
Description

Electrical Specifications
Frequency Range(MHz): 824~896MHz,890~960MHz,
VSWR: ≤1.5
Gain: 2dbi
Bandwidth: 70/180
Directionality: omnidirectional
Max Input power: 50w
Input Impedance: 50Ω
Antenna Length: 75mm
Polarization: Vertical
Operating Temperature: -45℃ to +75℃
Housing: Black
Connector Type: SMA male right angle Connector
Weight: 7g
