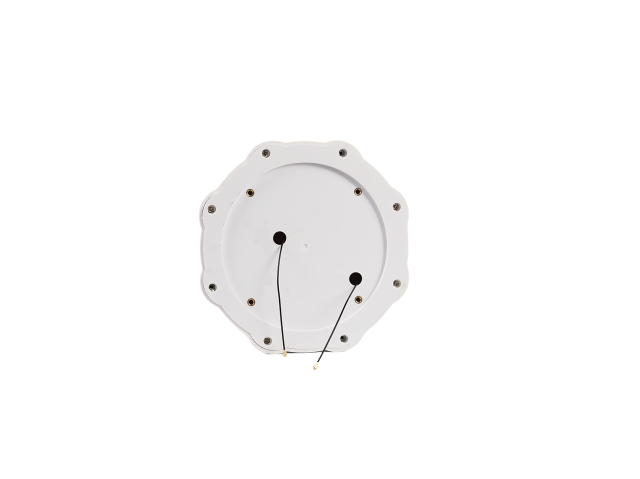

Model:V1810-012-A-01
Frequency Range(MHz)：
1980-2010MHz，2170-2200MHz
1561MHz，1575MHz
Polarization ：
(Tiantong) left circular polarization (L)
（B1/L1 ）Right-handed circular polarization (L)
Gain (dBi)（Tiantong）：Vertex gain ≥2.0dBi
Gain (dBi)（Tiantong）：Elevation 40° Minimum ≥2.0dBi
Gain (dBi)（B1/L1）：Vertex gain ≥1dBi
LNA Gain (dBi) （B1/L1）：30±2 dB
VSR：≤2
Impedance (Ω)：50Ω
Dimension (mm)：Φ158*124.9
Connector：IPEX 1代（Tiantong）/MMCX-JW（B1/L1）
Application: shipborne, veh
• Multi-band compatibility
Support 1980-2010MHz, 2170-2200MHz, 1561MHz and 1575MHz multiple bands to meet the requirements of different communication systems and application scenarios.
• High Gain
LAN Gain 30dB, which can provide stronger signal reception and transmission capability to ensure the stability and reliability of communication.
• Helical structure
The antenna part adopts helical structure design, which has the characteristics of small volume, light weight and easy installation.
• Waterproof and dust-proof
The shell adopts waterproof and dust-proof design, which can work normally in harsh environments.
| Electrical Specification: | |
| Frequency Range(MHz) |
1980-2010MHz，2170-2200MHz 1561MHz，1575MHz |
| Polarization |
(Tiantong) left circular polarization (L) （B1/L1 ）Right-handed circular polarization (L) |
| Gain (dBi)（Tiantong） | Vertex gain ≥2.0dBi |
| Gain (dBi)（Tiantong） | Elevation 40° Minimum ≥2.0dBi |
| Gain (dBi)（B1/L1） | Vertex gain ≥1dBi |
| LNA Gain (dBi) （B1/L1） | 30±2 dB |
| VSR | ≤2 |
| Impedance (Ω) | 50Ω |
| Mechanical specifications : | |
| Dimension (mm) | Φ158mm*124.9mm |
| Connector |
IPEX 1代（Tiantong） MMCX-JW（B1/L1） |
| Environmental requirement: | |
| Relative Humidity | 95% |
| Operating Temperature (℃) | -30～+65 |
| Store Temperature (℃) | -30～+75 |
