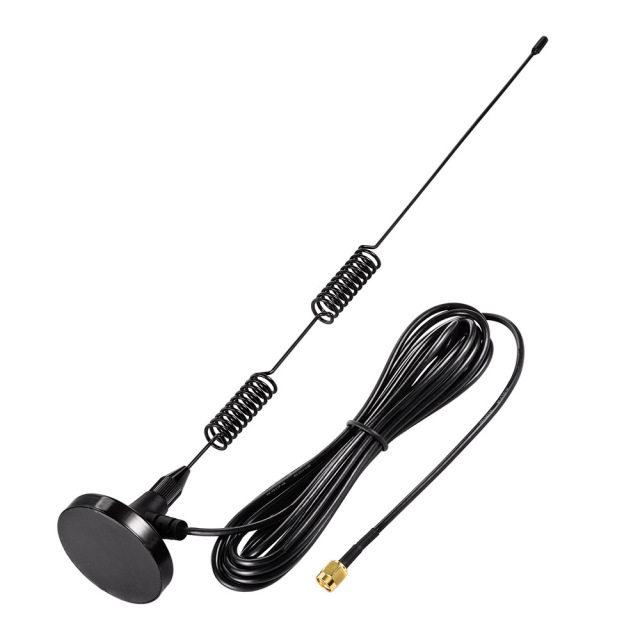

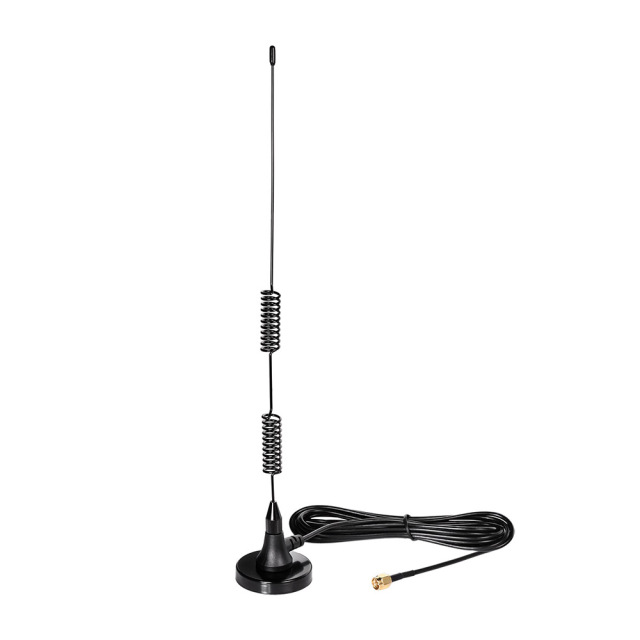

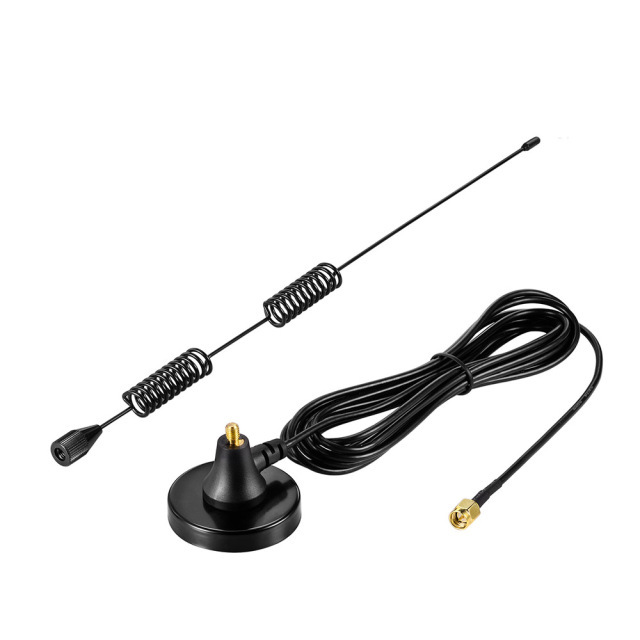

Strong Magnetic Base 14dBi SMA Male 4G LTE Cellular Antenna

No.4A1-0265-S01SP-140-300
Antenna Type：Magnetic MountNetwork：4G/LTE AntennaFrequency：700-2600MhzConnector Series：SMAConnector Polarity：StandardConnector Gender：PlugGain：14dBiRadiation：OmnidirectionalV.S.W.R：≤2Cable Type：RG174Cable Length：3mWeight：135g
CONTACT US
  • Strong Magnetic Base 14dBi SMA Male 4G LTE Cellular Antenna
  • Strong Magnetic Base 14dBi SMA Male 4G LTE Cellular Antenna
  • Strong Magnetic Base 14dBi SMA Male 4G LTE Cellular Antenna
  • Strong Magnetic Base 14dBi SMA Male 4G LTE Cellular Antenna
  • Strong Magnetic Base 14dBi SMA Male 4G LTE Cellular Antenna
Description
Specification:
Gain: 14dBi;
Frequency Range: 700-2700 MHz;

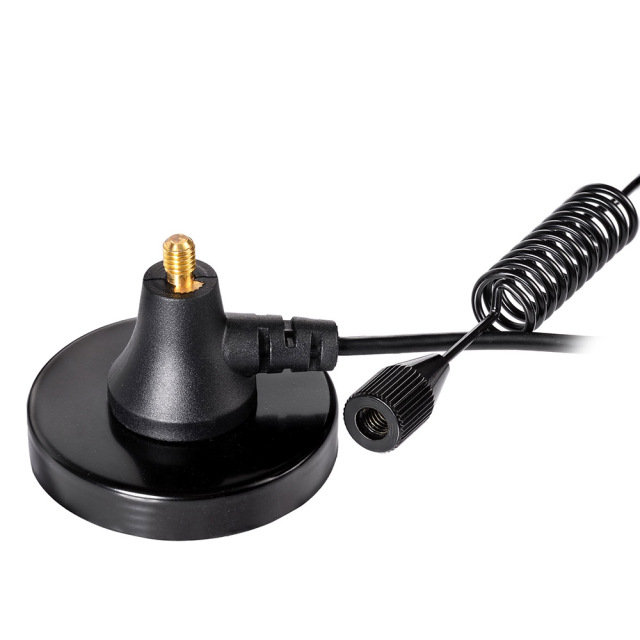

Feature: with Magnetic Base Mount;
VSWR: < 2.0;
Polarization: Linear Vertical;
Impedance: 50 ohm;
Direction: Omni-directional;

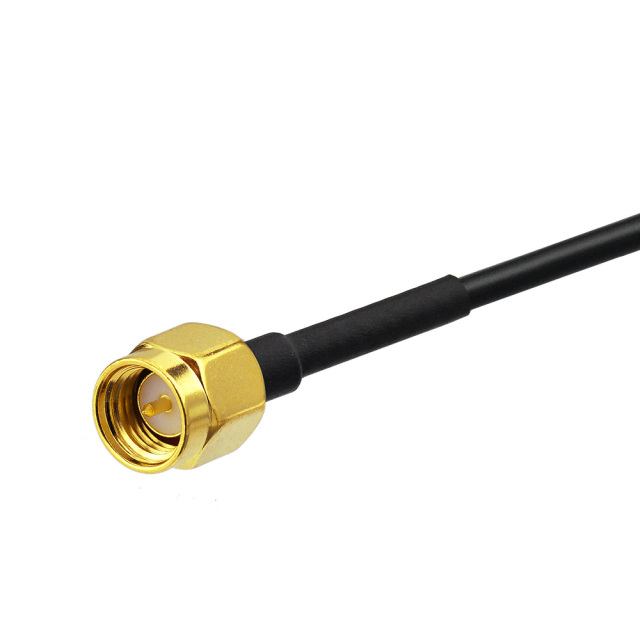

Connector: SMA Male Connector;
Operating Temperature: -20 ~ +80C;
Storage Temperature: -30 ~ +85C;
Cable: 3m RG174 Cable;

  • Compatible with: 4G LTE Wireless Mobile Router Hub; Wireless Home Phone Hotspot Router Modem; Cellular Wildlife Camera Trail Camera Game Camera Hunting Camera; 4G LTE Industrial Gateway Router Modem Terminal;

  • Compatible with: TP-Link TL-MR6400 Archer MR200 AC750 MR400 AC1200 MR600 AC1900 D-Link DWR-953 DWR-921 Huawei B525 B535 B593 B315 B310 B715s ASUS 4G-AC68U AC1900;

  • Compatible with: Huntooler Wireless Trail Camera; Snyper Commander Hunting 12 MP Wireless Trail Camera; Ancheer Wireless Trail Camera; HCO Spartan HD GoCam Wireless Trail Camera; Commander Wireless Trail Camera; Covert Code Black Blackhawk Wireless Cellular Trail Camera; Moultrie Wireless Field Modem Cellular Trail Camera; Stealth Cam GX Cellular Camera; Cuddeback Cuddelink Cellular Game Trail Camera; CreativeXP Cellular Game Trail Camera;

  • Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; Advantech Cradlepoint Digi Gemalto Encore InHand Inseego Option Red Lion Sierra Wireless Nimbelink 4G LTE Cellular Industrial Gateway Modular Modem Mobile Router Hotspot Terminal; 4G LTE RTU DTU Remote Controller Unit;
