Specifications:

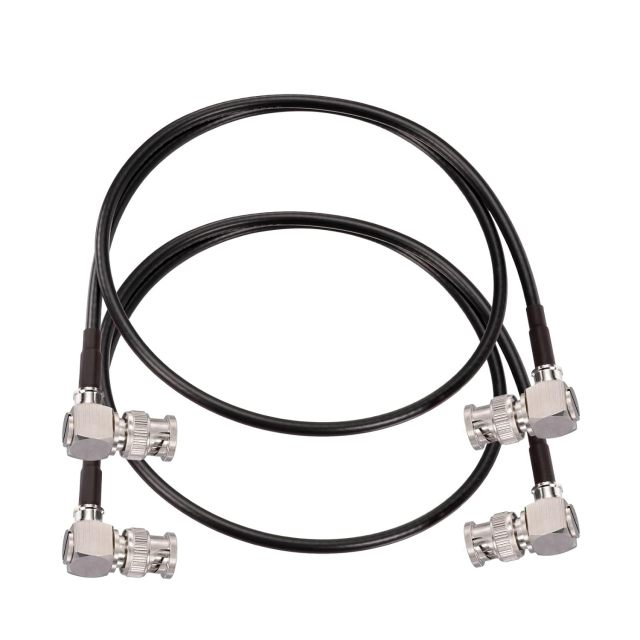

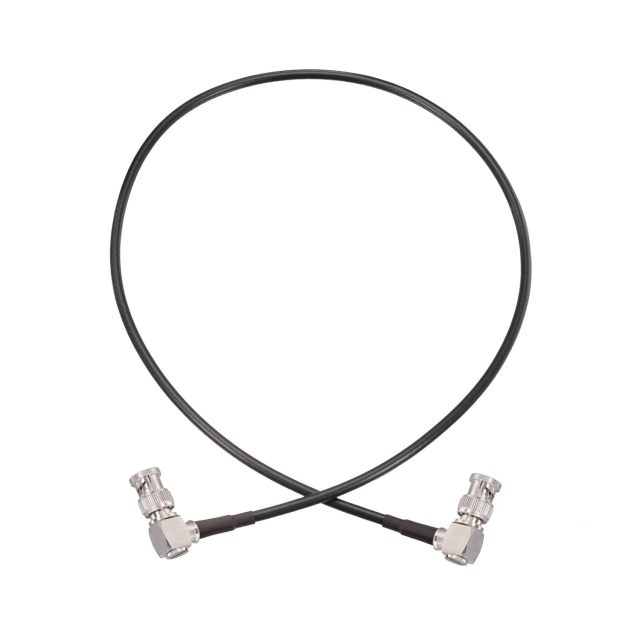

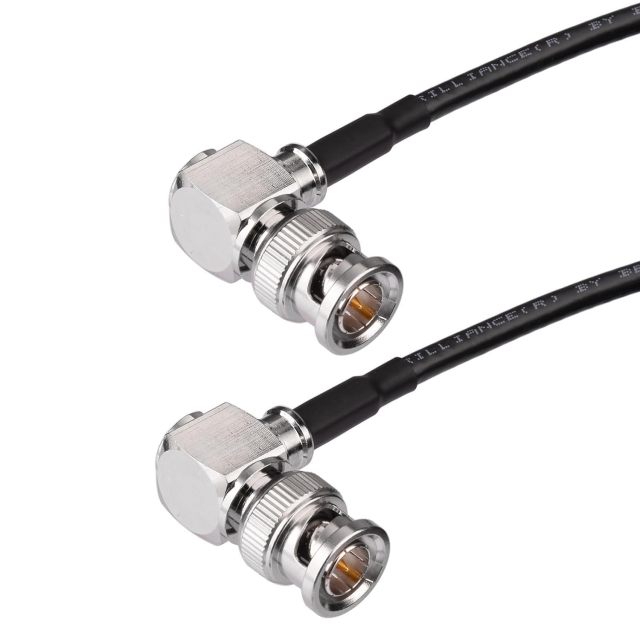

75 Ohm connector A: bnc male plug right angle | Gold Plated Centre Pin
75 Ohm connector B: bnc male plug right angle | Gold Plated Centre Pin

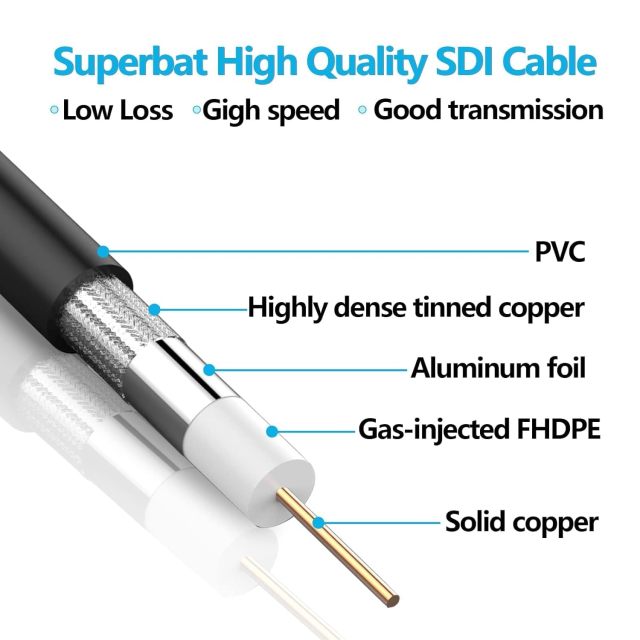

Belden 1855A HD SDI Cable - Sub-Miniature Precision Broadcast Video Coax Cable 23 AWG solid .023" bare copper conductor, gas-injected foam HDPE insulation, Duofoil + tinned copper braid shield (95% coverage), PVC jacket
Overall Diameter: 0.159" ; Cables meet SMPTE 259M, 292M,424M Standards
Tinned copper braid, and Duofoil shields, for excellent shielding ; Hand assembly and testing in-house
Applications Include:
For High-Density HD Video Routing, HD-Serial Digital Video, Wireless HDMI Extender, Receiver Transmitter
Compatible with Blackmagic DeckLink Quad capture cards, Studio Monitor ,SDI to HDMI Converter, Cameras Monitor Vedio Recorder, BMCC Video HDMI Extender etc.
Best for Fixed HD Applications, HDTV Upgrades, Broadband Facilities, SMPTE 259M, 292M, 424M It fits just fine between the video switcher and the pc with capturecard to record the video from the switcher.
Suitable for HDTV and professional SDI applications. Supports 3G/6G/12G/HD-SDI. Compatible with video Matrix / sdi converters / surveillance camera / hard disk recorders / monitor / camera / video digitizer card

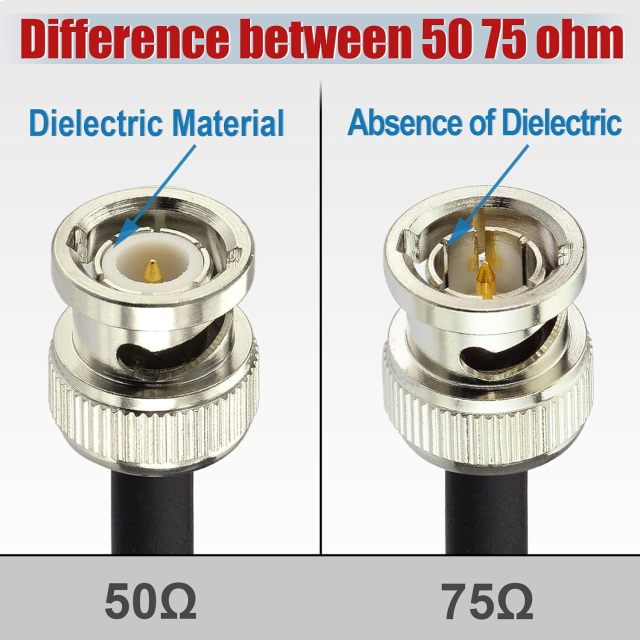

NOTE: 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
