Specifications:
Applications Include:
High-Density HD Video Routing HD-Serial Digital Video Wireless HDMI Extender, Receiver Transmitter
Best for Fixed HD Applications HDTV Upgrades Broadband Facilities SMPTE 259M, 292M, 424M

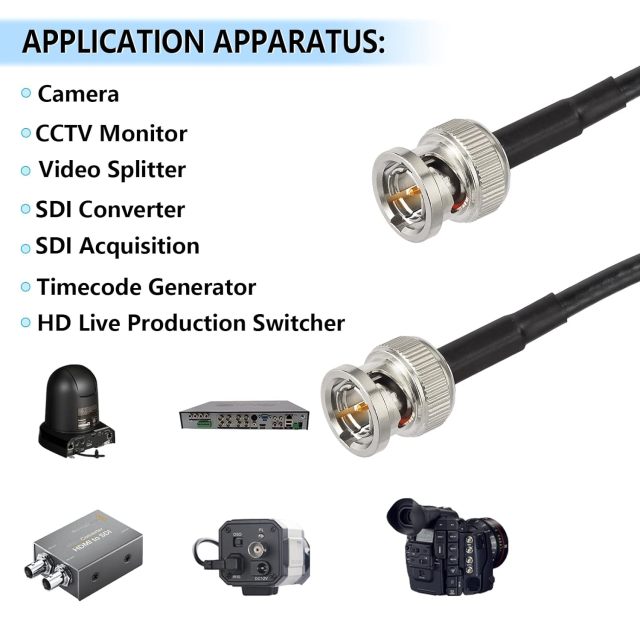

Compatible with Blackmagic DeckLink Quad capture cards, Studio Monitor , SDI HDMI Converter, Cameras Monitor Vedio Recorder BMCC Video HDMI Extender etc.
It fits just fine between the videoswitcher and the pc with capturecard to record the video from the switcher.

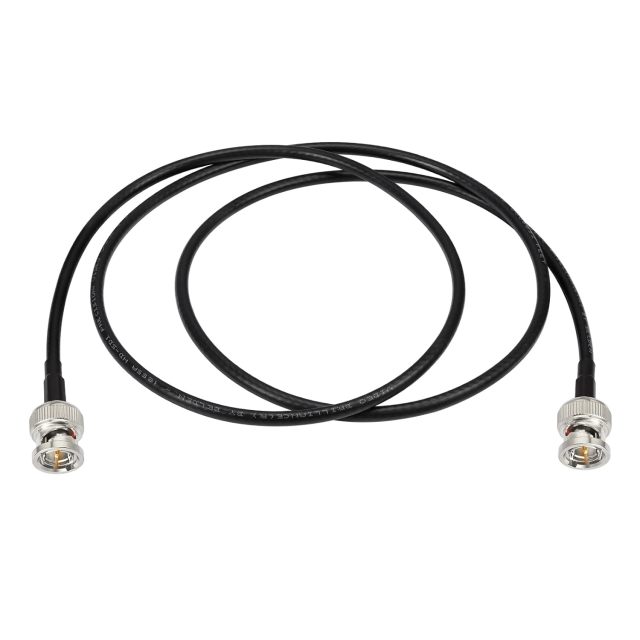

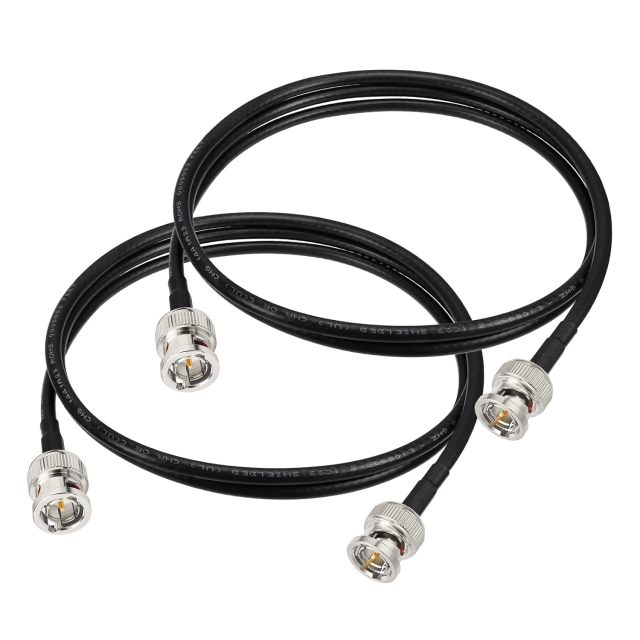

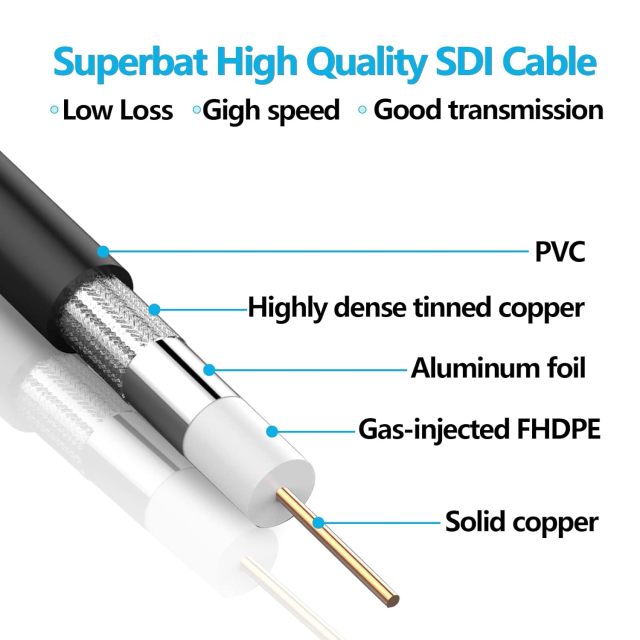

Belden 1855A HD SDI Cable - Sub-Miniature Precision Broadcast Video Coax Cable 23 AWG solid .023" bare copper conductor, gas-injected foam
HDPE insulation, Duofoil + tinned copper braid shield (95% coverage), PVC jacket
Overall Diameter: 0.159" ; Cables meet SMPTE 259M, 292M,424M Standards
Tinned copper braid, and Duofoil shields, for excellent shielding ; Hand assembly and testing in-house
NOTE:

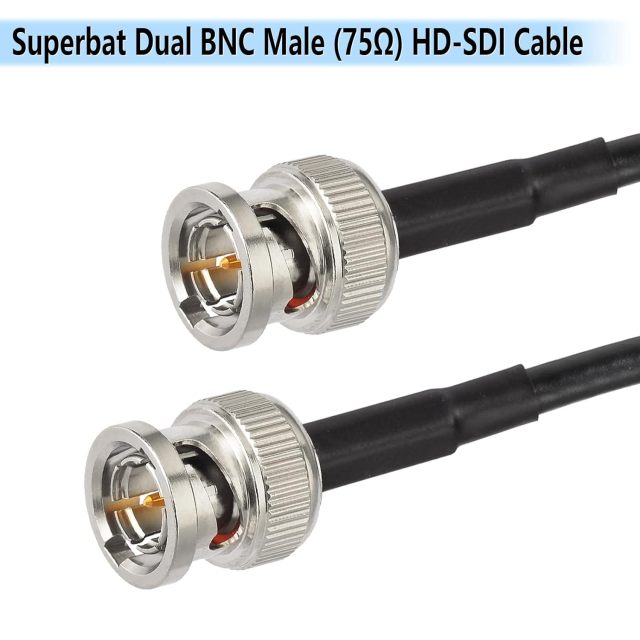

50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables.
50-ohm cables/connectors work well with old analog video formats. If you are looking for high-quality video output, 50 Ohm will not give you a high-quality level.
 |  |  |  |  | |
|---|---|---|---|---|---|
| 3g 6g mini din to sdi cable din 1.0/2.3 to bnc male video assist cable | 3G 6G HD SDI Cable BNC Cable Thin & Short SDI Video Cable | 3G/6G/12G SDI Cable BNC Cable SDI Precision Video Cable | 3G HD SDI Cable BNC Cable 75 Ohm thin coaxial cable | Flexible thin 6g 12g sdi cable 4K | |
| | | | | | |
| Customer Reviews | 1 | 42 | 408 | 260 | 7 |
| Cable type | Belden 1855A Cable | Belden 1855A Cable | Belden 1694A Cable | RG179 coaxial cable | Belden 4855R Cable |
| Application | for Blackmagic BMCC/BMPCC Video Assist 4K Transmissions HyperDeck Cameras | Supports HD-SDI/3G-SDI/4K/8K Camera Recorder Transmitter Receiver SDI Video Cable | Supports HD-SDI/3G-SDI/4K/8K Camera Recorder Transmitter Receiver SDI Video Cable | for Cameras Monitor Vedio Recorder BMCC Video HDMI Extender | for UHD and 4K Video Transport, switchers, cameras and other 4K video equipment |
 |  |  |  |  | |
|---|---|---|---|---|---|
| BNC Cable BNC Male to Male Connector Coaxial Cable | BNC SDI Coax Splitter 75Ohm BNC Male to Dual Female Cable | BNC SDI Adapter BNC Female to Female Barrel Connector | BNC Female to BNC Female Barrel Coaxial Connector Adapter | Thin 3G/6G SDI Cable 75 Ohm Precision SDI Video Cable Right Angle | |
| | | | | | |
| Customer Reviews | 182 | 6 | 22 | 95 | 42 |
| Impedance | 50 Ohm | 75 Ohm | 75 Ohm | 50 Ohm | 75 Ohm |
| Type | Coax cable | Coax splitter | bnc coupler | bnc coupler | SDI Cable |
