Superbat 3G 6G SDI Cable 200ft 75Ohm BNC Cable Belden 1694A Cable for 4K/6K Digital Video Transfer SDI Recorder HDTV Upgrades SDI Frame Synchronizer

Description

3G 6G SDI Cable BNC Cable 75Ohm Belden 1694A Cable+ SDI Cable Spool for Surveillance Monitor Camera

Superbat 3G/6G/12G/HD-SDI Cable 75 ohm BNC to BNC Digital Video Cable (Belden 1694A )

Compatible with: 1080P SDI Vedio Monitor, SDI Vedio Camera, SDI Camera Monitor, SDI Recorder, SDI to HDMI Converter Splitter, SDI PCIe Capture Card, SDI Vedio Frame Grabber, SDI Digital Video Audio Broadcast Router, SDI Switcher Hub, SDI Frame Synchronizer;

This sdi cable is widely used for church filming, large concerts, studios, roadshows, wedding scenes, live broadcasts, TV broadcasts, film and TV shoots, etc.

Features and Specifications:

Nominal impedance:	75 ohms-ideal - for audio and video
Velocity of propagation:	82%
Capacitance:	16.2 pF/ft.
Nominal attenuation:	0.240 dB/100 ft. @ 1 MHz
Overall diameter	0.274".

Standard Definition SD-SDI	270 Mbps, ST 259
HD standard HD-SDI	1.483 Gbps, ST 292
3G-SDI	2.97 Gbps, ST 424
6G-SDI	5.94 Gbps, ST 2081
12G-SDI	11.88 Gbps, ST 2082

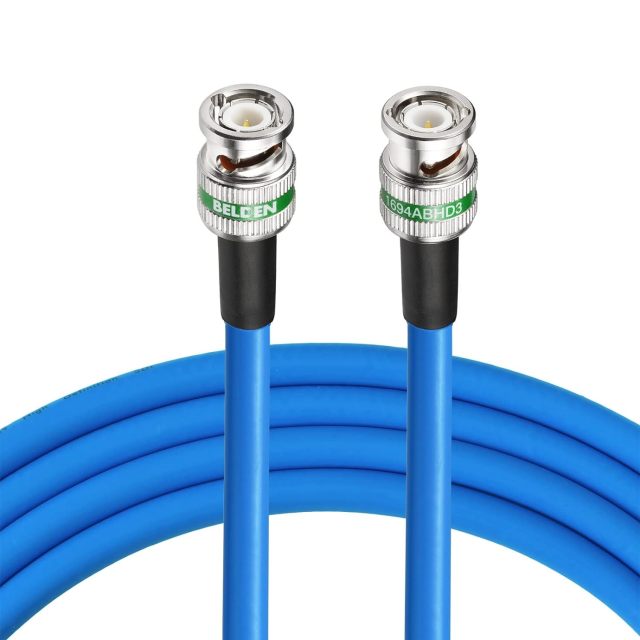

Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.	Center conductor: 0.40" dia. bare copper Dielectric: 0.180" dia. foamed PE Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI,for excellent noise rejection PVC outer jacket - for durability and long-term protection.	Specially made bnc connectors Reinforce the header strong and durable

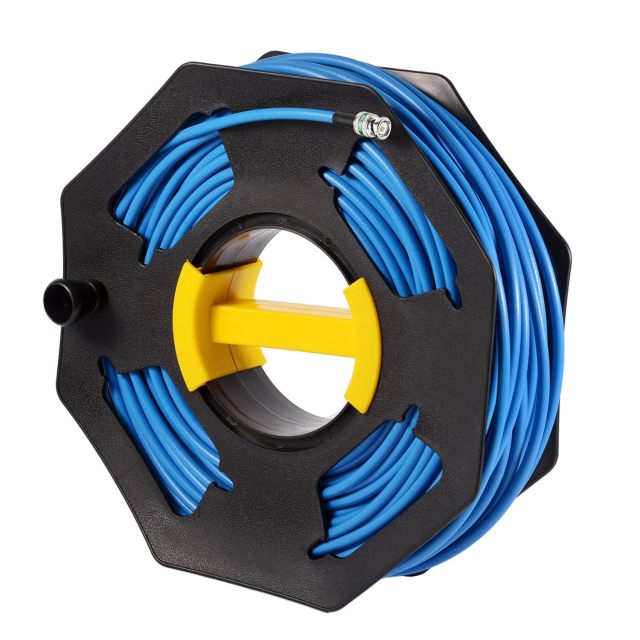

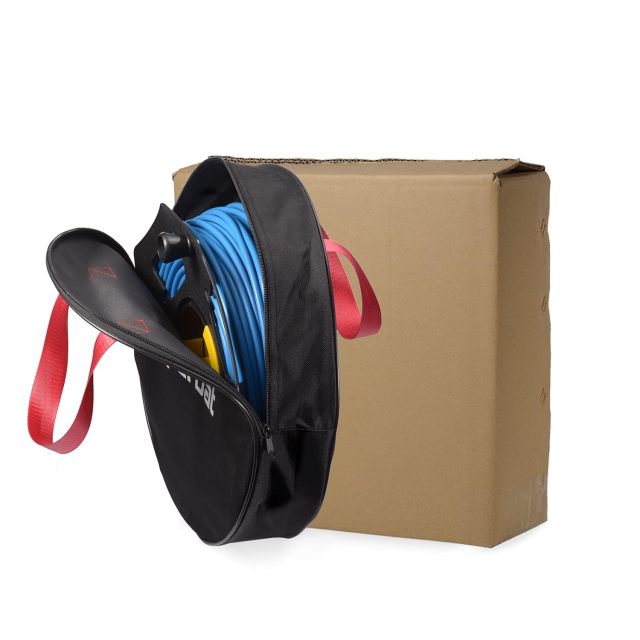

Superbat SDI cable spool + a nice bag ( for easier packing and storage )
