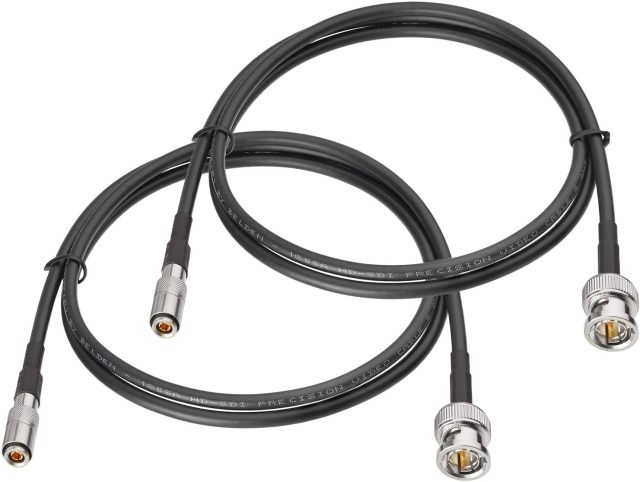

Superbat 3G 6G SDI Cable Blackmagic BNC Cable DIN 1.0/2.3 to BNC SDI Cable 3ft (Belden 1855A) for Blackmagic BMCC/BMPCC Video Assist 4K Transmissions HyperDeck Cameras 2-Pack

Superbat 1.0/2.3 DIN Male to BNC Male Cable Black 3ft 75-Ohm Precision HD-Serial Digital Video Coax cable

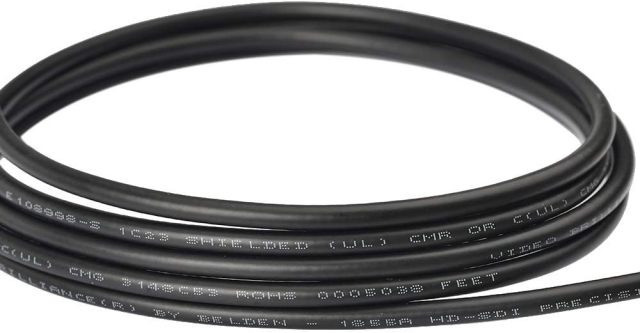

Specifications:

• AWG: 23
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
• Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper
• Outer Jacket Material: PVC - Polyvinyl Chloride
• Overall Diameter: 0.159"
• Cables meet SMPTE 259M, 292M,424M Standards
• Tinned copper braid, and Duofoil shields, for excellent shielding
• Hand assembly and testing in-house

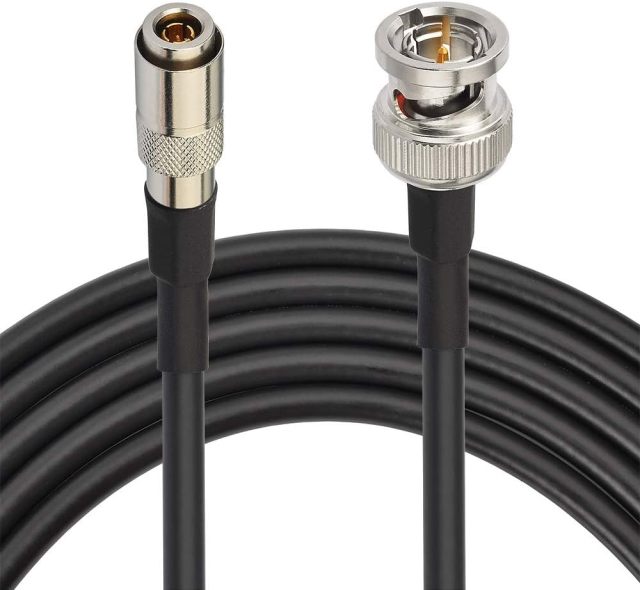

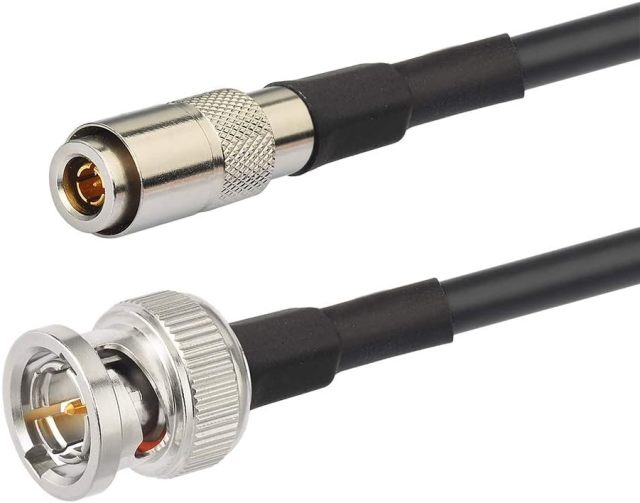

1855A 23AWG 75-Ohm Precision HD-Serial Digital Video Coax cable 1.0/2.3 DIN Male to SDI Male, Black

This cable is suitable for any device with HD SDI video with connections of BNC or Din 1.0/2.3. for example, to connect the Micro Studio Camera 4K to Video Assist 4K or the front output of URSA Mini to Video Assist. 1.0/2.3 DIN and BNC connectors exceed 3.0Gbps HD-SDI requirements specified in SMPTE424M. These cables more than meet today's requirements for 3 Gbps signal/data serial interface needs, and are designed for any equipment that has 1.0/2.3 mini-din input or output.

Applications Include:

• High-Density HD Video Routing ,HD-Serial Digital Video ,Best for Fixed HD Applications ,HDTV Upgrades ,Broadband Facilities
• High-density 1.0/2.3 Din Video Patchbay/Router output to BNC input
• Compatible with Blackmagic DeckLink Quad capture cards
• for Sony：PXW-FS7、PXW-FS5、PXW-Z150、PXW-X70、PXW-X160、PXW-X180 etc.
• for Panasonic：AG-UX180、AG-UX90、AG-AC30、AG-HPX600、AG-HPX255、AG-HPX370 etc.
• for Blackmagic Design：URSA Mini Pro、Pocket Cinema Camera、Studio Camera etc.
• for JVC：GY-HM200、GY-HM170、GY-HM850、GY-HM890 etc.
• for Canon：XF305、XF200、XF105、XF100、XA11、XA15 etc.
