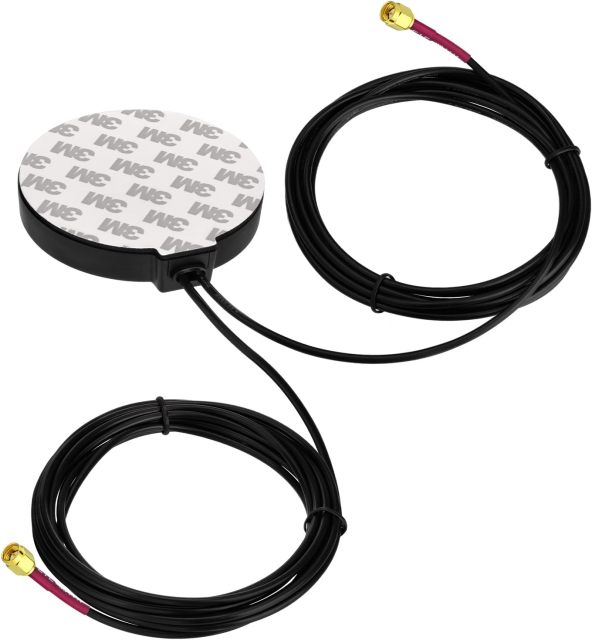

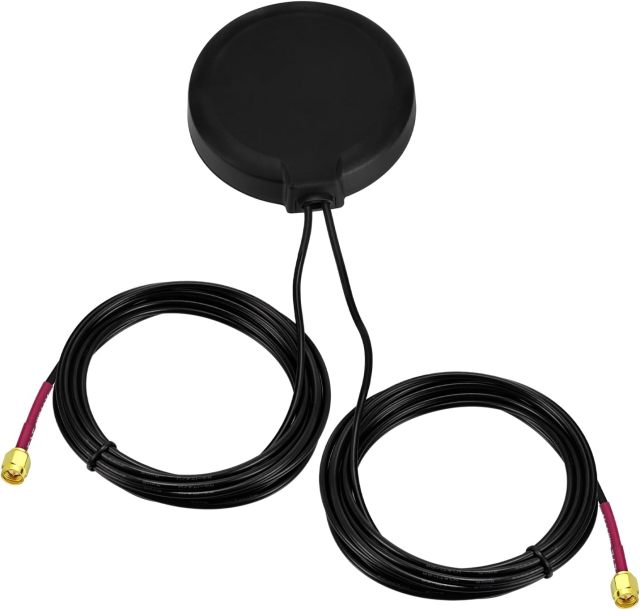

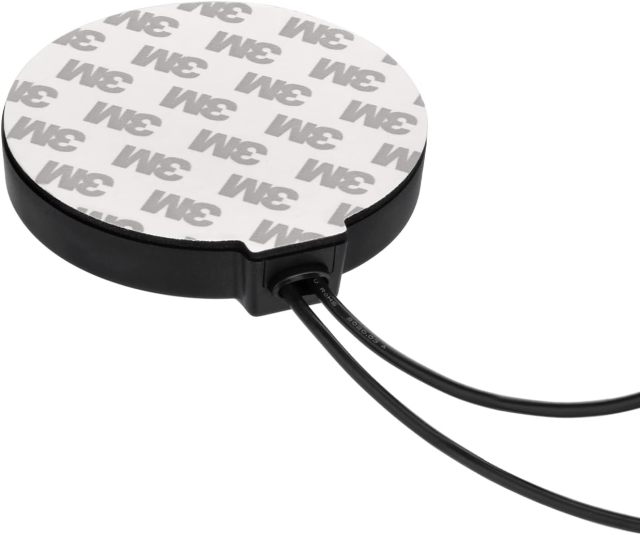

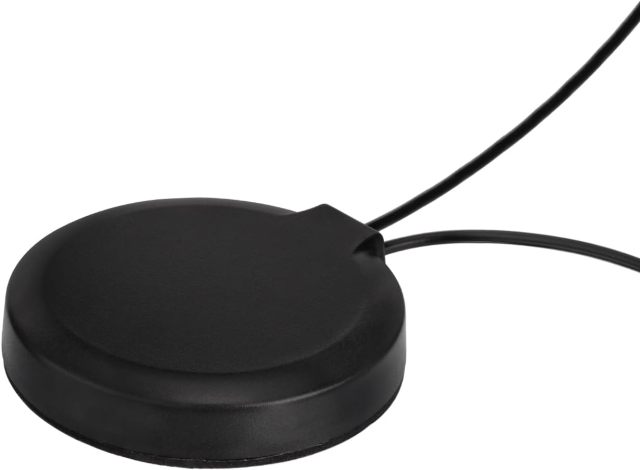

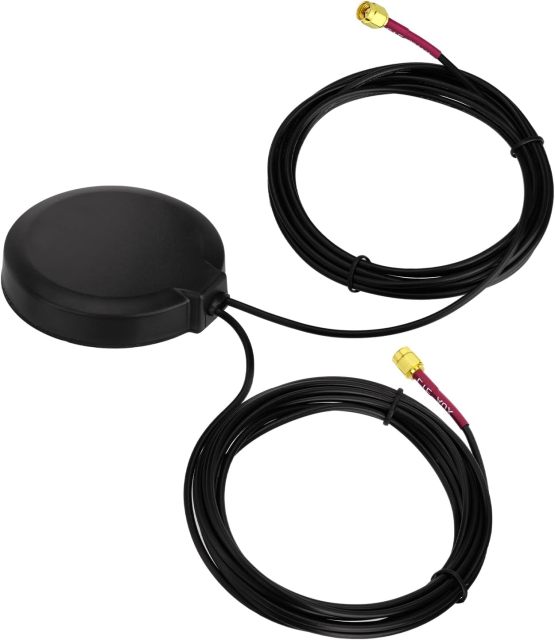

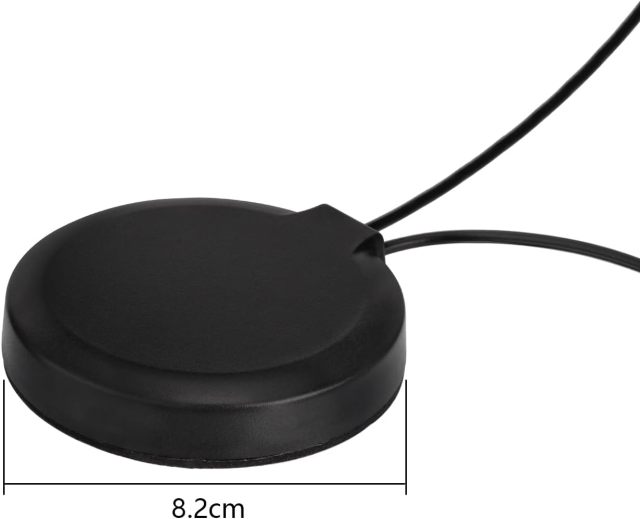

Low Profile 4G LTE MIMO Magnetic Mount Omni-directional Dual SMA Male Antenna for Huawei Sierra Netgear ZTE Novatel D-Link 4G LTE Wireless Router
4G LTE Antenna MAIN Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: ＜2.0
Polarization: Linear Vertical
Gain: 3dBi
Impendance: 50Ω
4G LTE Antenna AUX Specification:
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
V.S.W.R: ＜2.0
Polarization: Linear
Gain: 3dBi
Impendance: 50Ω
Mechanical:
Cable: RG174
Cable Length: 3 Meters
Connector: SMA Male Connector
Material: ABS
Mounting Method: Adhesive/Magnet
Environmental:
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
