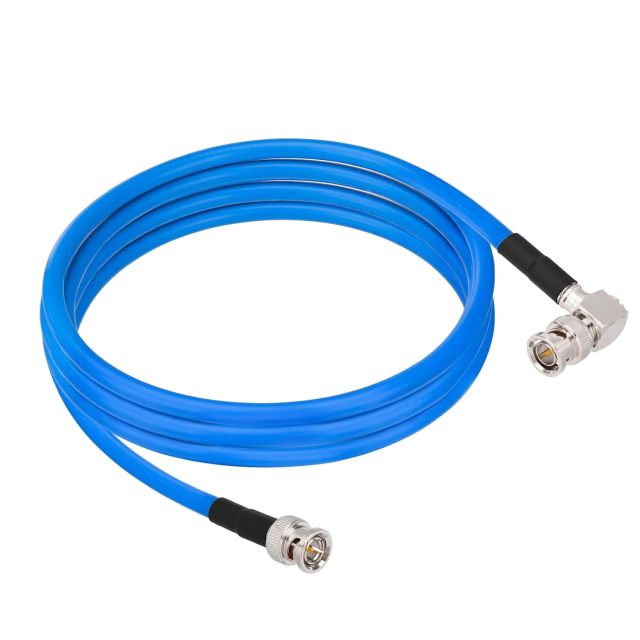

Superbat 6G/12G SDI Cable 75 Ohm Short BNC Cable 6ft BNC Male to Right Angle BNC Male Belden 1694A Digital Video Cable for HD Cameras CCTV Monitor SDI Video Equipment Supports HD-SDI/3G-SDI/4K/8K

Superbat 3G/6G/12G/HD SDI Cable 6ft BNC Male to Right Angle BNC Male Digital Video Cable 75 Ohm

Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4x3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.

This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.

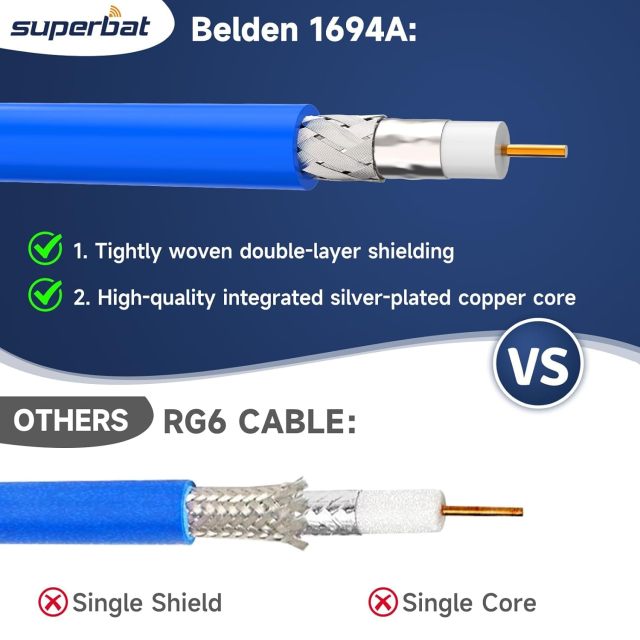

Features and Specifications: Center conductor: 0.40" dia. bare copper Dielectric: 0.180" dia. foamed PE Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper - give them maximum protection from EMI and RFI,for excellent noise rejection Nominal impedance: 75 ohms-ideal - for audio and video PVC outer jacket - for durability and long-term protection. Velocity of propagation: 82% Capacitance: 16.2 pF/ft. Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz Overall diameter: 0.274".

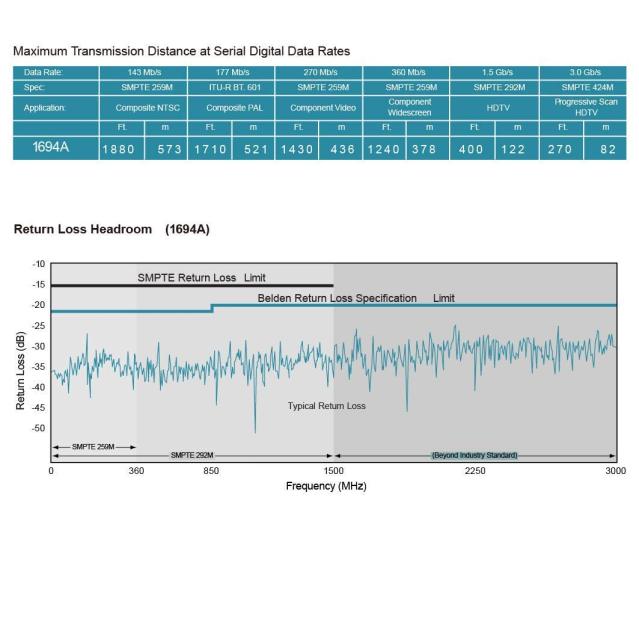

Serial Digital Data Rates Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292) 3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2082)

Specifications:

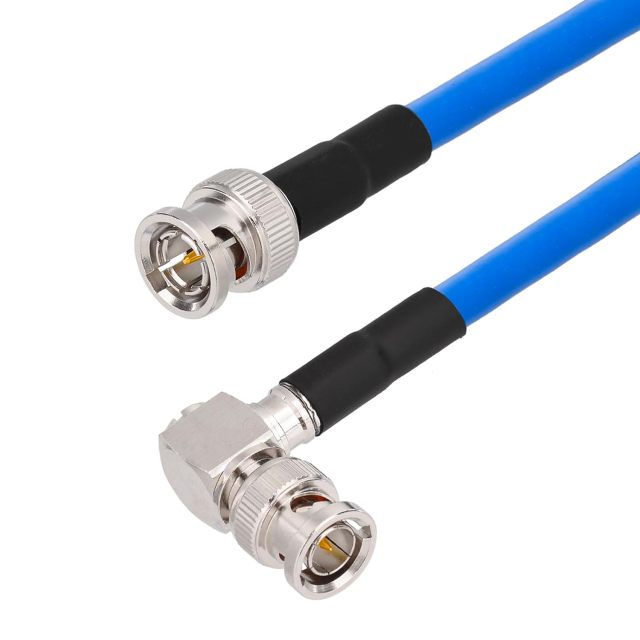

• Connector Type 1: BNC Male Connector;
• Connector Type 2: Right Angle BNC Male;
• Connector Material: Gold plated;
• Cable Type: Belden 1694A;
• Cable Length: 6ft/200cm;
• Impedance: 75 Ohm;
