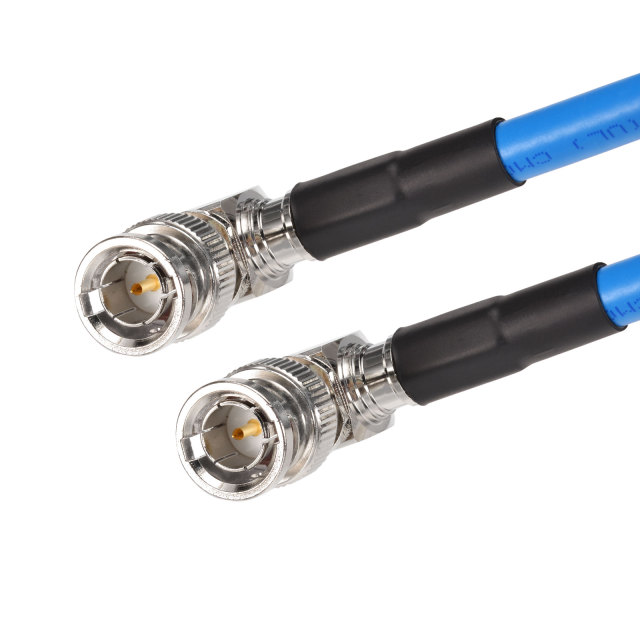

Superbat BNC-75 Right Angle Plug to BNC-75 Right Angle Plug Belden 1694A Cable

No.AC-B04RA-B04RA-1694A-X

Cable Type：Belden 1694A Cable Impedance：75 ohmConnector 1 Series：BNCConnector 2 Series：BNCConnector 1 Gender：PlugConnector 2 Gender：PlugConnector 1 Polarity：StandardConnector 2 Polarity：StandardBody Style 1：Right Angle Body Style 2：Right Angle
Cable length:
Customize as to needs
Cable Color:
Blue
Black
Red
Green
Yellow
CONTACT US
  • Superbat BNC-75 Right Angle Plug to BNC-75 Right Angle Plug Belden 1694A Cable
  • Superbat BNC-75 Right Angle Plug to BNC-75 Right Angle Plug Belden 1694A Cable
  • Superbat BNC-75 Right Angle Plug to BNC-75 Right Angle Plug Belden 1694A Cable
Description

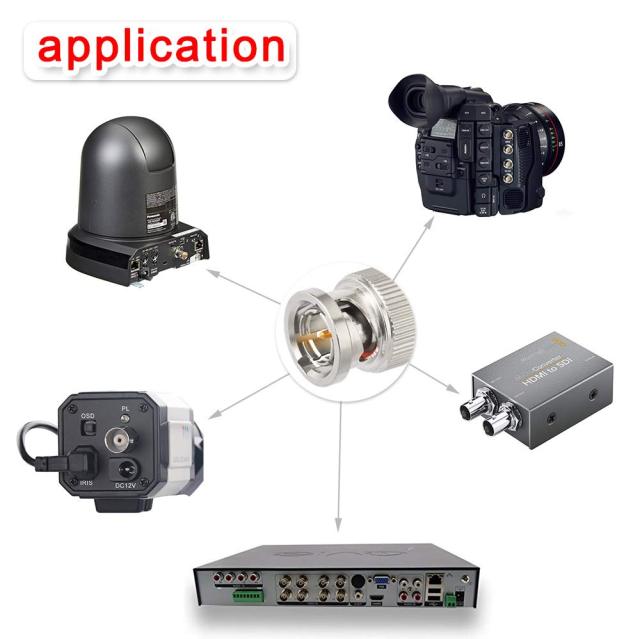

3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A )

Features and Specifications:

  • Nominal impedance: 75 ohms-ideal - for audio and video
  • Velocity of propagation: 82%
  • Capacitance: 16.2 pF/ft.
  • Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
  • Overall diameter: 0.274".

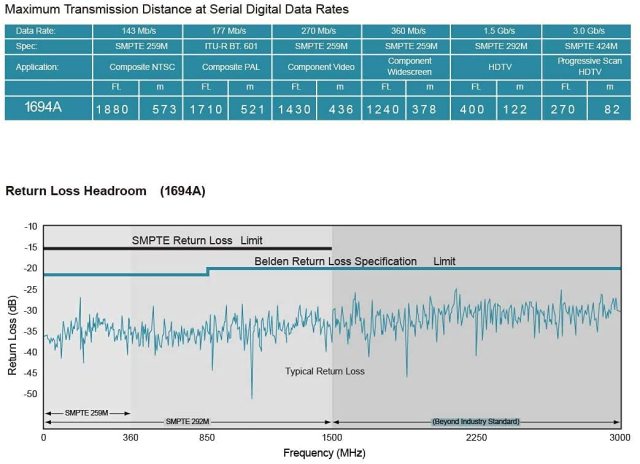

Serial Digital Data Rates

  • Standard Definition SD-SDI (270 Mbps, ST 259)
  • HD standard HD-SDI (1.483 Gbps, ST 292)
  • 3G-SDI (2.97 Gbps, ST 424)
  • 6G-SDI (5.94 Gbps, ST 2081)
  • 12G-SDI (11.88 Gbps, ST 2082)
