Description:
Code: "B"
Gender: Jack
Color: White /9001
Connector Body Style: Straight
Suitable cable: RG316 RG174 LMR100
Frequency Range： 3GHz
Dielectric Type： PTFE
Apply to: Phantom Radio With supply

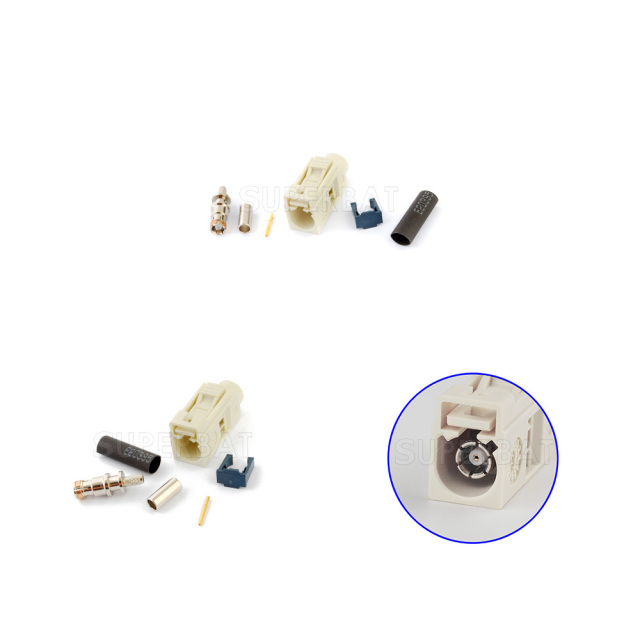

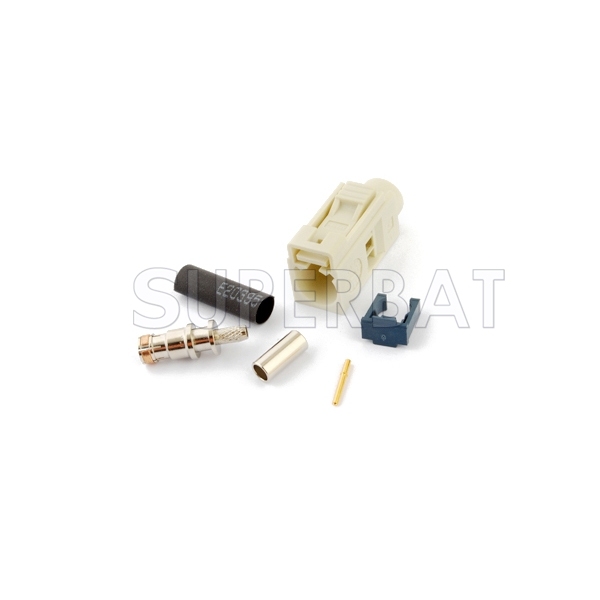

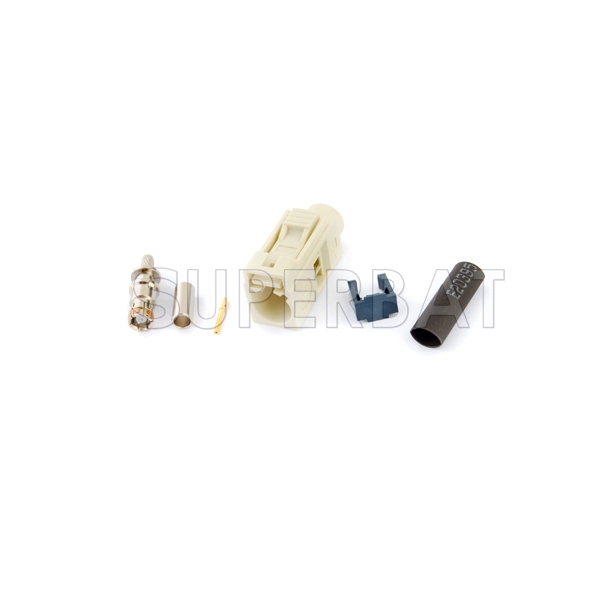

FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered
The antenna with this Fakra Connector is compatible with:
VW RNS510 (MFD3);
VW MFD2 (RNS2);
SKODA COLUMBUS;
MERCEDES COMMAND SYSTEMS W211 (E-CLASS);
MERCEDES APS 50;
AUDI RNS-E (DVD NAVIGATION);
AUDI MMI (A6 4F, A8 4E);
