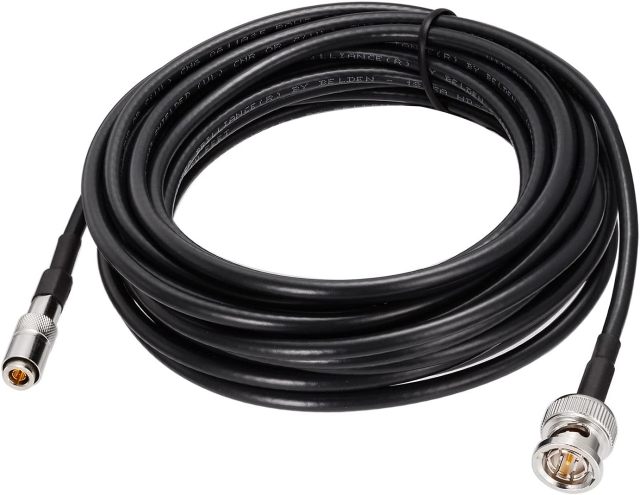

Superbat DIN SDI Cable Blackmagic BNC Cable, DIN 1.0/2.3 to BNC Male Cable (Belden 1855A Cable 15ft for Blackmagic Video Assist Recorder 4K Transmissions

No.B094QTQGKW

Size:

1ft

3ft

5ft

7ft

10ft

15ft

20inch

Color:

1pcs

2pcs

Description

This cable is suitable for any device with HD SDI video with connections of BNC or Din 1.0/2.3. for example, to connect the Micro Studio Camera 4K to Video Assist 4K or the front output of URSA Mini to Video Assist.
1.0/2.3 DIN and BNC connectors exceed 3.0Gbps HD-SDI requirements specified in SMPTE424M. These cables more than meet today's requirements for 3 Gbps signal/data serial interface needs, and are designed for any equipment that has 1.0/2.3 mini-din input or output.

Applications Include:

High-Density HD Video Routing
HD-Serial Digital Video
Best for Fixed HD Applications
HDTV Upgrades
Broadband Facilities
SMPTE 259M, 292M, 424M
High-density 1.0/2.3 Din Video Patchbay/Router output to BNC input
Compatible with Blackmagic DeckLink Quad capture cards
Using this SDI cable to connect sony F3 / EX 1R HDMI to the blackmagic video assist recorder
Used to convert standard BNC SDI connection to the mini BNC connector on the Black Magic Design Hyperdeck Shuttle video recorder.

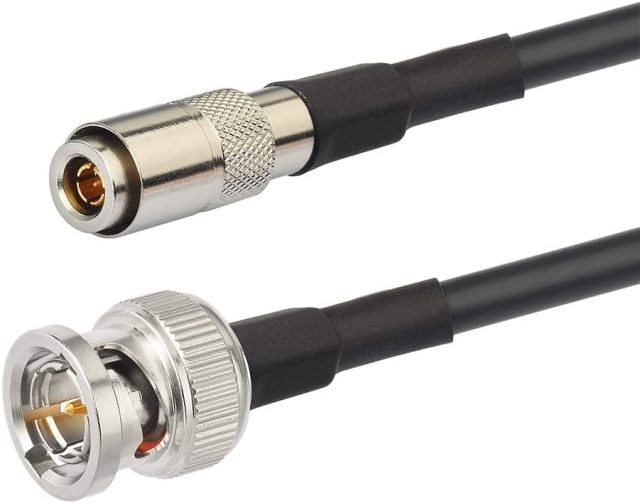

package: 1-pack Black 3G/6G HD SDI Cable (Belden 1855A), DIN 1.0/2.3 to Male BNC

AWG:	23 AWG
Stranding	Solid
Conductor Material	BC - Bare Copper
Insulation Material	Gas-injected FHDPE - Foam High Density Polyethylene
Outer Shield Material	Dual Shield - Duofoil/TC - Tinned Copper \| Tinned copper braid, and Duofoil shields, for excellent shielding

Outer Jacket Material	PVC - Polyvinyl Chloride
Overall Diameter	0.159"
Standards	Cables meet SMPTE 259M, 292M,424M Standards
Production	Hand assembly and testing in-house


	Short 3G/HD SDI Cable BNC Cable	3G/6G/12G SDI Cable BNC Digital Video Cable	3G/6G SDI Cable BNC Digital Cable	SDI BNC male to DIN 1.0/2.3 Cable	75Ohm bnc Male to Female sdi Cable
	See Details	See Details	See Details	See Details	See Details
Customer Reviews	277	408	42	2	16
Cable type	RG179 cable	Belden 1694A	Belden 1855A	Belden 1855A	RG179 cable
Applications	for Surveillance Camera System Cables DVR/ TV/ CCTV monitor/ sdi converter/ video	for SDI Vedio Frame Grabber, SDI Video Audio Broadcast Router, SDI Switcher, SDI Frame Synchronizer	for SDI Vedio Frame Grabber, SDI Video Audio Broadcast Router, SDI Switcher, SDI Frame Synchronizer	for Blackmagic Design Video Assist HyperDeck Shuttle DeckLink Quad	for Surveillance Camera System Cables DVR/ TV/ CCTV monitor/ sdi converter/ video
