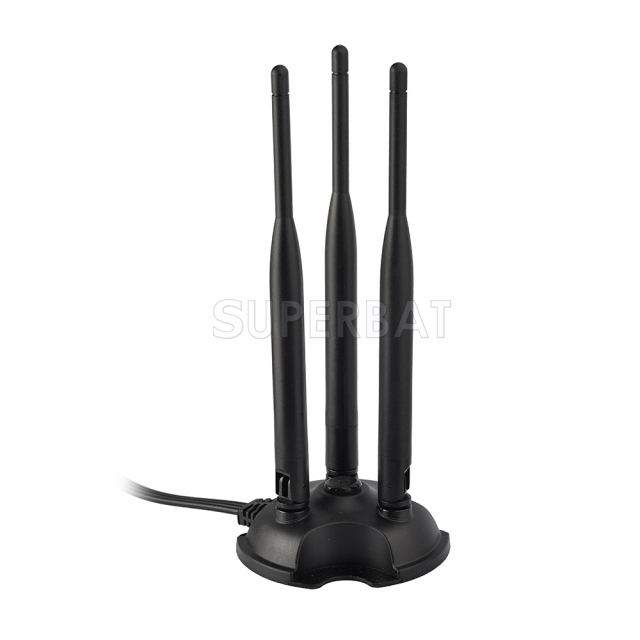

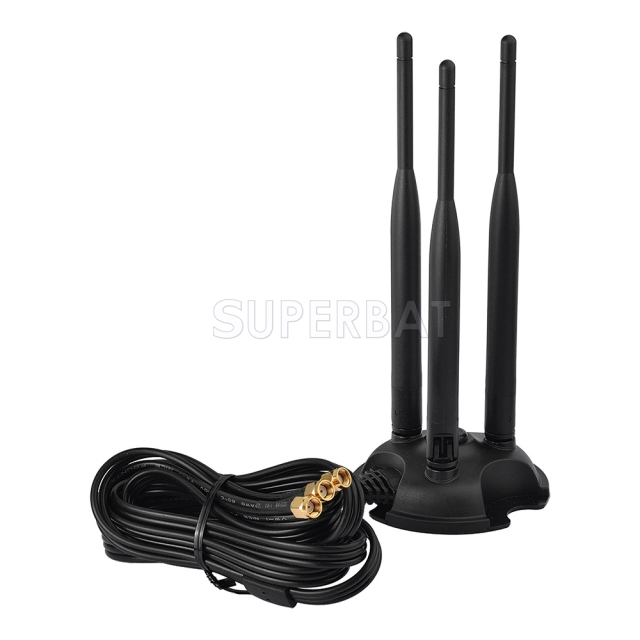

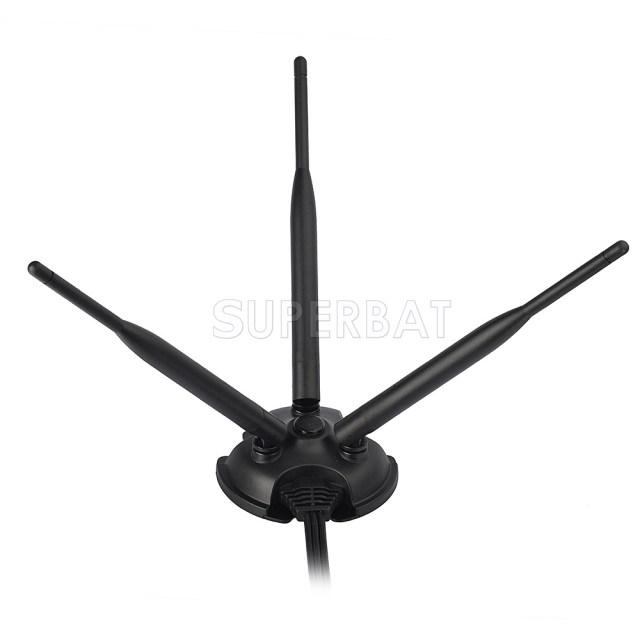

Superbat Dual Band WiFi 2.4GHz 5.8GHz Magnetic Base RP-SMA Antenna (Three Antennas) for WiFi Wireless Router Gateway PCI Express Network Cards Adapter

No.WA1-0215-S02SP-060-200
Type：MIMO WiFi Antenna (Three Antennas)Center Frequency：2.4GHz, 5.8GHzConnector Series：RP SMAConnector Polarity：Reverse PolarityConnector Gender：MaleImpedance：50 ohmNominal Gain：6dbiV.S.W.R：1.5Cable Length：2mAntenna Size：Antenna Height: 24.3cm
CONTACT US
  • Superbat Dual Band WiFi 2.4GHz 5.8GHz Magnetic Base RP-SMA Antenna (Three Antennas) for WiFi Wireless Router Gateway PCI Express Network Cards Adapter
  • Superbat Dual Band WiFi 2.4GHz 5.8GHz Magnetic Base RP-SMA Antenna (Three Antennas) for WiFi Wireless Router Gateway PCI Express Network Cards Adapter
  • Superbat Dual Band WiFi 2.4GHz 5.8GHz Magnetic Base RP-SMA Antenna (Three Antennas) for WiFi Wireless Router Gateway PCI Express Network Cards Adapter
  • Superbat Dual Band WiFi 2.4GHz 5.8GHz Magnetic Base RP-SMA Antenna (Three Antennas) for WiFi Wireless Router Gateway PCI Express Network Cards Adapter
  • Superbat Dual Band WiFi 2.4GHz 5.8GHz Magnetic Base RP-SMA Antenna (Three Antennas) for WiFi Wireless Router Gateway PCI Express Network Cards Adapter
Description



Antenna Type: MIMO WiFi Antenna (Three Antennas);

Frequency Range: 2.4GHz, 5.8GHz;

VSWR: 1.5;

Gain: 6dBi;

Max. Input Power: 50W Input;

Impedance: 50 Ohm;

Polarization: Vertical;

Working Temperature: -40 ~ 85°C

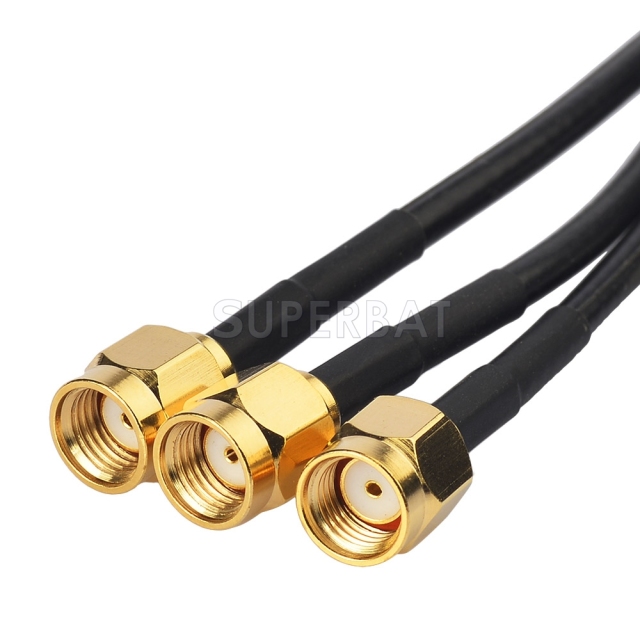

Antenna Connection: RP-SMA Male Connector;

Cable Length: 2m;

Mounting: Magnetic Base;

Antenna Height: 24.3cm;

Package Weight: 285g;

Package Included: 1 x WiFi Antenna;
