FAKRA Connectors and Cable Assemblies support applications that require a high-performing, reliable, and cost-effective RF connector. FAKRA connectors are standard SMB Connectors embedded within a special inter-locking plastic housing that uses multiple color-codes for easy identification and mating, and are designed to perform up to 4GHz at 50 Ω.
Use factory Antenna with Pioneer GPS Navigation Units.

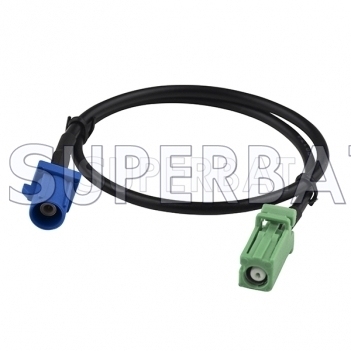

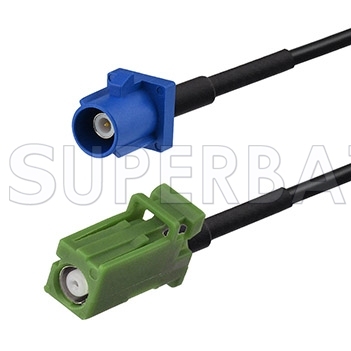

If factory Navigation system in GM, Chrysler, Ford, Fiat, Jeep, Mitsubishi, Nissan, Porsche, VW etc. needs an upgrade and you have decided on Pioneer, the FM-AVIC.F adapter cable is for you! This cable (available in custom lengths), allows the GPS antenna already fitted on vehicles roof to connect to the green AVIC-F GPS terminal on Pioneer aftermarket navigation radios, which means you don't have to spend time installing a new antenna. This cable converts Female FAKRA terminal (all colors) to Pioneer Multimedia AVIC-F (green) Terminal (e.g. AVIC-8100NEX, SPH-DA120 etc.)
SPECIFICATIONS
High quality cable for excellent GPS
Antennentyp: GPS
Connector 1 Series： AVIC
Connector 2 Series： Fakra C
Connector 1 Gender： Female , Jack
Connector 2 Gender： Male, Plug
Connector 1 Polarity： Standard
Connector 2 Polarity： Standard
Body Style 1： Straight
Body Style 2： Straight
Cable Impedance： 50 Ohm
Cable Length：30CM or Optional
Cable Type： RG174
The antenna with this Fakra Connector is compatible with:
VW RNS510 (MFD3);
VW MFD2 (RNS2);
SKODA COLUMBUS;
MERCEDES COMMAND SYSTEMS W211 (E-CLASS);
MERCEDES APS 50;
AUDI RNS-E (DVD NAVIGATION);
AUDI MMI (A6 4F, A8 4E);
INSTALLATION:
1. Locate the factory Fakra GPS Terminal behind the dash.
2. Connect water blue (neutral coding) terminal to factory FAKRA GPS terminal
3. Connect AVIC-F green terminal to Pioneer Multimedia GPS terminal
