Features:
This product uses a coefficient of high conductivity, low resistance of the FPC printed antenna as a reception antenna, so that it has a strong signal receiving function, good directivity. This product can choose to paste in the front of the car and the windscreen to the upper left and right sides, so that the stability of the received signal.
Electric Speciality：
Working Voltage: DC 10.5V～16V
Working current: 30mA～60mA
Rated voltage: DC 12V
Rated Current: 40mA～50mA
Working Frequency: 170MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)
Output Gain: 15dB±3dB (Band Ⅲ) 12dB±3Db (L-Band)
Output impedance: 75Ω
V.S.W.R: ≤3.0:1
NS: ≤2dB
Working Temperature: -30℃～+80℃
Storage Temperature: -40℃～+90℃
Connector (depending on selection):

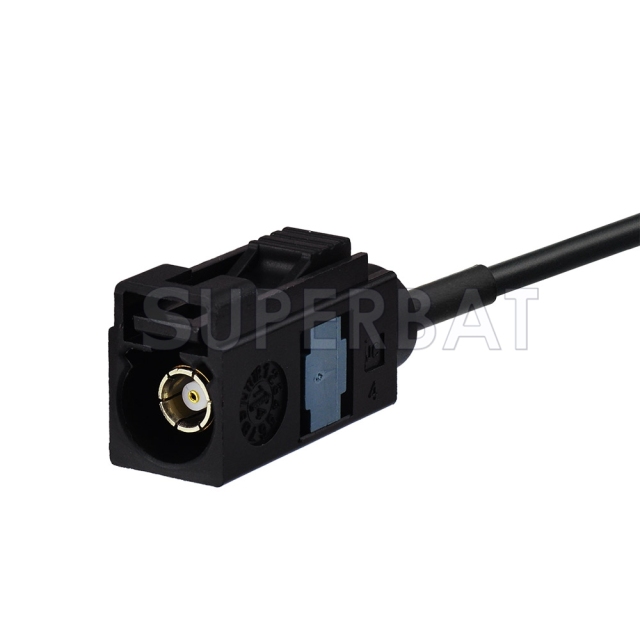

FAKRA ""A"" female straight
SMA male right angle
SMA male straight
SMB male straight
MCX male straight
Cable Length: 3M
