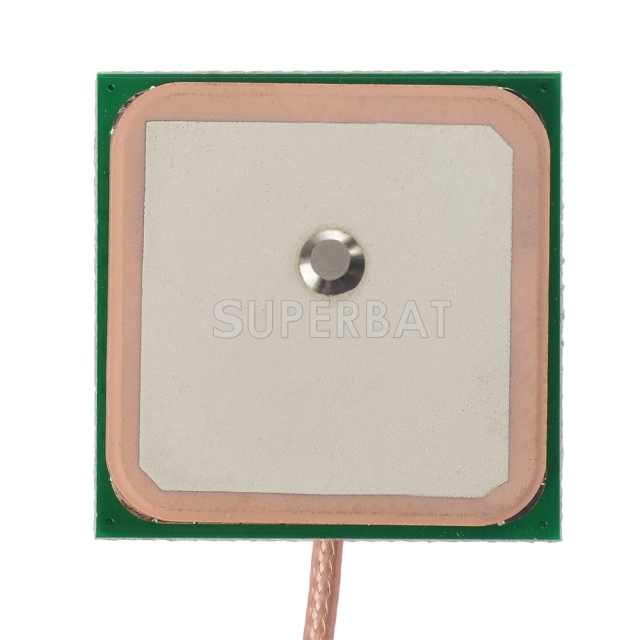

（i） Dieletric Antenna
Center Frequency:1575.42MHz±3 MHz
V.S.W.R:1.5:1
Band Width:±5 MHz
Impendence:50 ohm
Peak Gain:＞3dBic Based on 7×175px ground plane
Gain Coverage:＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization:RHCP
（ii）Mechanical
Weight:＜60gram

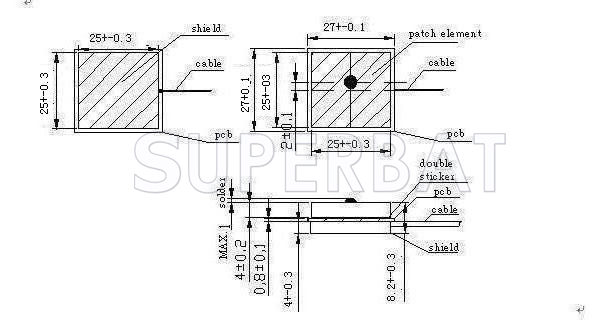

Size:27×27X8.2mm
Cable:RG178，30cm,Contact us for other length
Connector:IPEX/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
（i i i）Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis

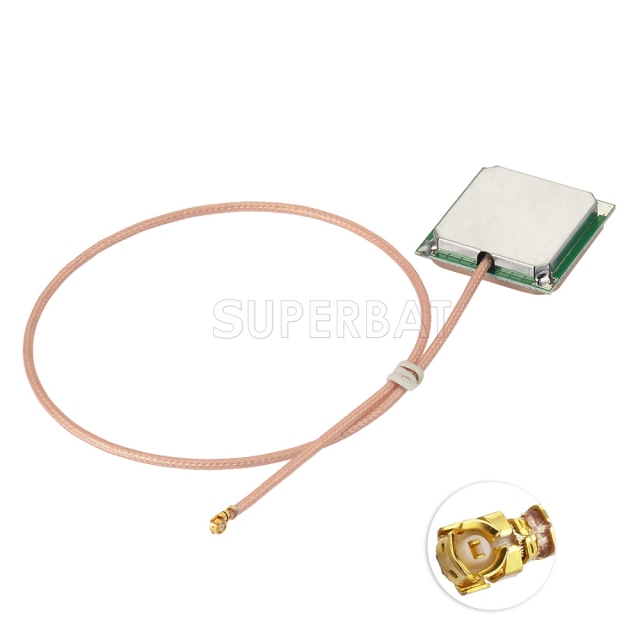

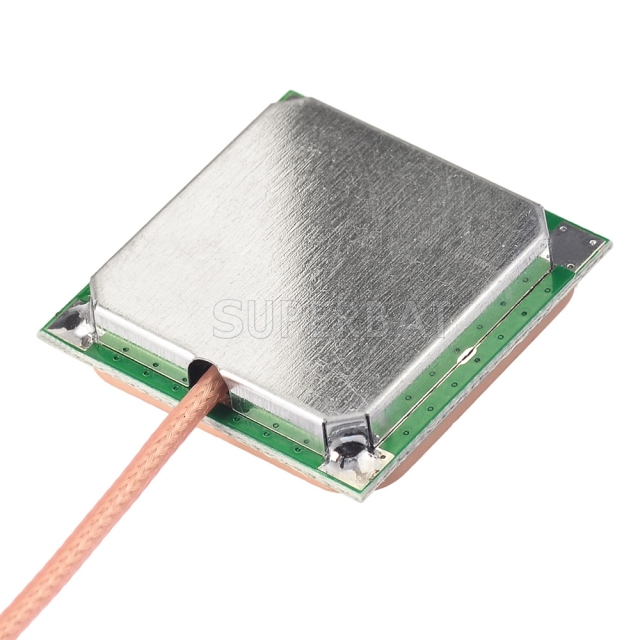

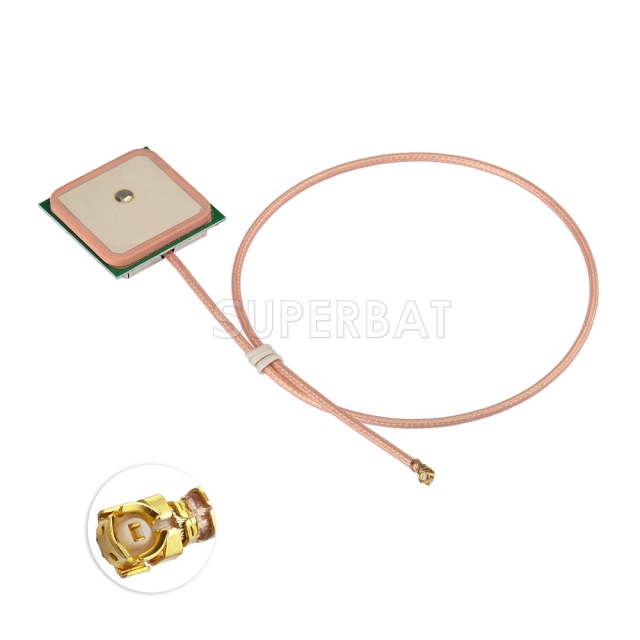

GA01-1-30-178-U04RJ is a compact GPS antenna in the market. It is specially designed feo the portable device that needs GPS antenna embedded such as PND,laptop,mobile phone and so on.This antenna is compatible with most GPS receivers available on the market and provides a perfect alternative for the application of the GPS in different fields.Cables and connectors can be customized according to request.
